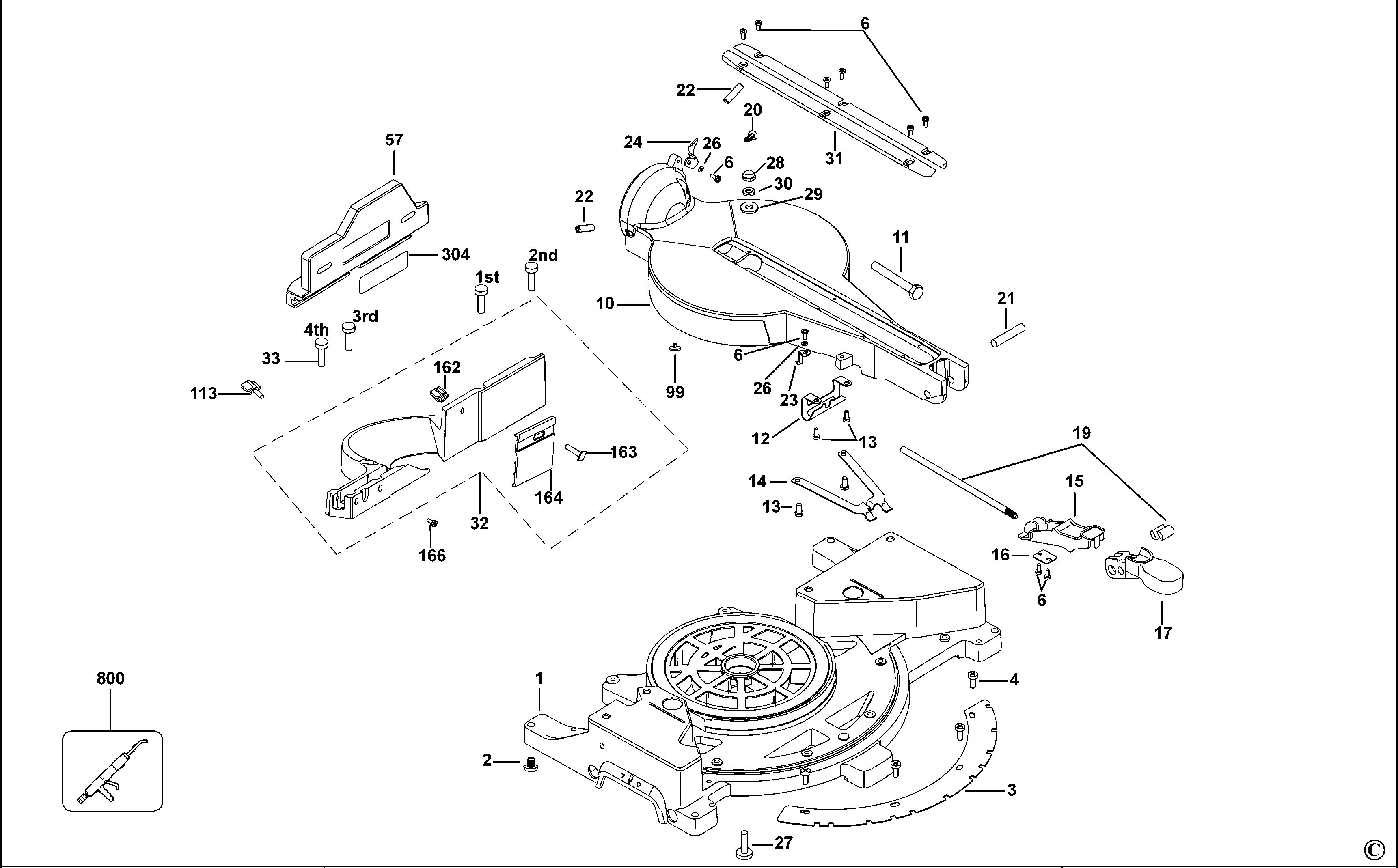

TABLE TOP MITRE SAW
SKU Produs: D27112 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 869349-00 | 1 | BASE DW712N/TTMS SERVICE | 850,09 Lei | |
| 2 | 153612-00 | 4 | RUBBER FEET | 4,57 Lei | |
| 3 | N690033 | 1 | SCALE | 130,35 Lei | |
| 4 | 604987-00 | 4 | SHOULDER SCREW | 4,7 Lei | |
| 5 | N114229 | 1 | TOP TABLE TTMS,SERVICE | 399,45 Lei | |
| 6 | 330045-05 | 10 | SCREW.TEMP | 4,57 Lei | |
| 7 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 8 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,57 Lei | |
| 9 | 860610-01 | 1 | PUSH STICK | 30,87 Lei | |
| 10 | 869350-00 | 1 | SA TABLE DW712N/TTMS EURO,SERVICE | 713,77 Lei | |
| 11 | 638875-00 | 1 | SCREW,HEX 10x80 DIN 933 LH | 15,12 Lei | |
| 12 | 397062-00 | 1 | LOCK PLATE | 17,02 Lei | |
| 13 | 330045-55 | 4 | SCREW | 4,57 Lei | |
| 14 | 397070-00 | 1 | BLOCK SPRING | 21,85 Lei | |
| 15 | 397073-00 | 1 | LEVER | 5,21 Lei | |
| 16 | 397075-00 | 1 | LEVER LOCK PLATE | 15,12 Lei | |
| 17 | 397065-00 | 1 | LOCK LEVER | 15,12 Lei | |
| 18 | 635045-00 | 1 | TABLE PROTECTION D27111 | 37,73 Lei | |
| 19 | 629395-00 | 1 | KIT MITER LOCK DW712 | 52,22 Lei | |
| 20 | 638835-00 | 1 | Buttom, Push D27111 | 4,57 Lei | |
| 21 | 397063-00 | 1 | DRIVE PIN | 7,37 Lei | |
| 22 | 153576-03 | 2 | SCREW M8X30 | 8,64 Lei | |
| 23 | 397048-00 | 1 | MITER POINTER | 7,37 Lei | |
| 24 | 397090-00 | 1 | BEVEL INDEX | 13,85 Lei | |
| 25 | 330045-05 | 4 | SCREW.TEMP | 4,57 Lei | |
| 26 | 249233-00 | 2 | WASHER | 4,57 Lei | |
| 27 | 860085-19 | 1 | SCREW,HEX M.8X25 UNI 5739 | 4,57 Lei | |
| 28 | 860092-05 | 1 | NUT,SELF LOCKING M.8 | 4,57 Lei | |
| 29 | 153781-00 | 2 | LAP WASHER | 6,23 Lei | |
| 30 | 613270-00 | 1 | WASHER | 5,21 Lei | |
| 31 | N714363 | 2 | INSERT | 25,54 Lei | |
| 32 | 641363-00 | 1 | FIXED FENCE D27111 | 331,47 Lei | |
| 33 | 330045-33 | 4 | SCREW, TRIL | 5,21 Lei | |
| 34 | N102812 | 1 | SA KIT GUARD+KNIFE TTMS SERVICE | 200,99 Lei | |
| 35 | 330045-32 | 2 | SCREW | 5,21 Lei | |
| 37 | 860083-04 | 2 | NUT,HEX THICK M.8 UNI 5587 | 4,57 Lei | |
| 38 | 637806-00 | 1 | SLIDING RIPPING FENCE D27111 | 130,35 Lei | |
| 39 | 637805-00 | 1 | Nut, Fence Guide,D27111 | 30,87 Lei | |
| 40 | 634738-00 | 1 | BRACKET, FENCE,D27111 | 30,87 Lei | |
| 42 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 43 | 392948-00 | 1 | WASHER CLAMP | 4,57 Lei | |
| 44 | 605794-00 | 1 | LEVA BLOCC.BATTUTA REFIL.FN | 106,98 Lei | |
| 45 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,57 Lei | |
| 47 | 605795-00 | 1 | SPINA CILINDR.D6X50 | 6,23 Lei | |
| 48 | 605796-00 | 1 | SQUADRETTA BLOCCAGGIO BATT.REF | 5,21 Lei | |
| 49 | 636091-00 | 1 | TABLE SUPPORT D27111 | 52,22 Lei | |
| 50 | 153781-00 | 1 | LAP WASHER | 6,23 Lei | |
| 52 | 860092-05 | 1 | NUT,SELF LOCKING M.8 | 4,57 Lei | |
| 53 | 606362-01 | 1 | SPACER BEVEL D27111 | 6,23 Lei | |
| 54 | 941756-00 | 1 | WING NUT M8 | 8,64 Lei | |
| 55 | 385567-03 | 1 | WRENCH,TORX T30 | 12,71 Lei | |
| 56 | 860074-02 | 4 | WASHER,SPRING CON.D6.2X14X0.9 | 4,57 Lei | |
| 57 | 640349-00 | 1 | SLIDING FENCE D27111 | 106,98 Lei | |
| 58 | 637338-00 | 1 | CLAMP LEVER PUSH | 10,29 Lei | |
| 59 | 860084-24 | 4 | SCREW TCBPH5,5X38 6954ZP | 4,57 Lei | |
| 60 | 150075-00 | 1 | SCREW | 5,21 Lei | |
| 61 | 330045-34 | 1 | SCREW, TRIL | 7,37 Lei | |
| 62 | 949894-02 | 2 | SCREW | 4,57 Lei | |
| 63 | 637289-00 | 1 | TORSIONAL SPRING | 13,85 Lei | |
| 64 | 637193-00 | 1 | UNLOCKING HEAD BAR D27111 | 25,54 Lei | |
| 65 | 153639-00 | 1 | SHOULDER SCREW | 4,57 Lei | |
| 66 | 949702-19 | 1 | HEXAGONAL HEAD SCREW | 6,23 Lei | |
| 67 | 647382-00 | 1 | ARM D27112 | 472,24 Lei | |
| 68 | 649653-00 | 1 | PIN, LOCKING | 21,85 Lei | |
| 70 | N102812 | 1 | SA KIT GUARD+KNIFE TTMS SERVICE | 200,99 Lei | |
| 71 | 385756-01 | 1 | BUSH | 8,64 Lei | |
| 72 | 330045-33 | 1 | SCREW, TRIL | 5,21 Lei | |
| 73 | N186624 | 1 | CLAMP INNER | 80,04 Lei | |
| 74 | 696519-00 | 1 | O-RING FOR FA AND BEARING | 4,57 Lei | |
| 75 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 76 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 77 | 930098-00 | 1 | RING,SPRING SHAFT D15 UNI7435 | 4,57 Lei | |
| 78 | 869290-00 | 1 | SA ARMATURE 230V. D27112 (SERVICE) | 399,45 Lei | |
| 79 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 80 | 145312-00 | 1 | RUBBER PLUG | 4,57 Lei | |
| 81 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 82 | 869045-00 | 1 | STATORE 230/240V G95 MM | 289,04 Lei | |
| 83 | 654838-00 | 1 | BRUSH PLATE | 80,04 Lei | |
| 84 | 381028-08 | 2 | BRUSH AND LEAD (single unit) | 57,81 Lei | |
| 85 | 391317-00 | 1 | FIELDCASE | 57,81 Lei | |
| 86 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 87 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 88 | 391933-00 | 1 | END CAP [BASF_TERLURAN_GP-22] | 15,12 Lei | |
| 89 | N121000 | 1 | SA HANDLES D27112 (SERVICE) | 88,55 Lei | |
| 90 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 91 | 640985-00 | 1 | SWITCH | 96,56 Lei | |
| 92 | 868320-00 | 1 | SWITCH COVER | 17,02 Lei | |
| 93 | 863259-00 | 1 | CABLE CLIP D.9-11,5 | 15,12 Lei | |
| 94 | 326057-00 | 1 | TERMINAL BLOCK [RATED 25A 600V] | 6,23 Lei | |
| 95 | 330120-00 | 1 | S/A CORDSET | 70,39 Lei | |
| 96 | 654791-00 | 1 | CAPACITOR D27112 | 81,9 Lei | |
| 97 | 615851-00 | 1 | INSULATED BUSHING [POLYONE LM-318-G001] | 19,95 Lei | |
| 99 | 640146-00 | 3 | SLIDE ROLLER | 6,23 Lei | |
| 100 | N176002 | 1 | SA BEVEL SLIDE MECHANISM D27112,SERVICE | 2055,16 Lei | |
| 104 | 330022-08 | 1 | GRUB SCREW | 4,57 Lei | |
| 107 | 639554-00 | 2 | PLASTIC WASHER | 10,5 Lei | |
| 108 | 639383-00 | 1 | SPACER | 8,64 Lei | |
| 109 | 633290-04 | 1 | SPRING | 80,04 Lei | |
| 110 | 642980-00 | 1 | SPACER,SPRING D27111 | 8,64 Lei | |
| 111 | 397128-00 | 1 | JOINT AXLE | 19,95 Lei | |
| 112 | 943030-00 | 2 | O RING | 4,57 Lei | |
| 113 | 147107-06 | 1 | KNOB | 15,12 Lei | |
| 114 | 606014-00 | 1 | COMPRESSION SPRING | 4,57 Lei | |
| 115 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 116 | 397089-00 | 1 | BEVEL NUT | 19,95 Lei | |
| 117 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 118 | 153781-00 | 1 | LAP WASHER | 6,23 Lei | |
| 119 | 637807-00 | 1 | SCALE D27111 | 13,85 Lei | |
| 120 | 605798-00 | 1 | INDICE BATTUTA REFIL.D27105 | 6,23 Lei | |
| 121 | 613270-00 | 1 | WASHER | 5,21 Lei | |
| 123 | 628591-00 | 1 | WEAR GUIDE | 17,02 Lei | |
| 126 | 397080-00 | 1 | LOCK LEVER | 12,71 Lei | |
| 128 | 637334-00 | 1 | BEVEL SCALE | 10,29 Lei | |
| 130 | 153586-00 | 2 | RUBBER WASHER | 5,21 Lei | |
| 131 | 616001-00 | 2 | SCREW SHOULDER M5X12 T25 | 4,57 Lei | |
| 132 | 153576-00 | 1 | SCREW | 4,57 Lei | |
| 135 | 941756-00 | 1 | WING NUT M8 | 8,64 Lei | |
| 137 | 330045-15 | 3 | Screw Metal | 4,57 Lei | |
| 138 | 641845-00 | 1 | LABEL DEWALT | 8,64 Lei | |
| 139 | 635047-00 | 1 | BLADE PROTECTION | 57,81 Lei | |
| 140 | 637288-00 | 1 | SPRING, TORSION (SX) D27111 | 5,21 Lei | |
| 141 | 625857-00 | 1 | CLAMP D23700 | 7,37 Lei | |
| 142 | 860094-05 | 2 | SCREW,PAN PH/TT M.4X12UNI8112 | 4,57 Lei | |
| 143 | 153639-00 | 1 | SHOULDER SCREW | 4,57 Lei | |
| 144 | 604728-00 | 2 | SEAL RING | 4,57 Lei | |
| 145 | 146774-00 | 2 | ROLLER | 7,37 Lei | |
| 146 | 637998-00 | 1 | S/A PROTECTION | 240,38 Lei | |
| 147 | 647776-00 | 1 | BLADE BOLT SC | 6,23 Lei | |
| 148 | 604765-00 | 1 | CLAMP OUTER | 25,54 Lei | |
| 149 | 616319-00 | 1 | FLANGIA INTERNA D27201 | 37,73 Lei | |
| 150 | 861340-00 | 1 | NUT | 4,57 Lei | |
| 151 | 605040-51 | 1 | BEARING D10-M4 D27111 | 17,02 Lei | |
| 152 | 330024-49 | 1 | SCREW M4 X 16 | 4,57 Lei | |
| 153 | 330045-23 | 1 | SCREW | 4,57 Lei | |
| 154 | 146740-02 | 2 | SYNT. BUSHING | 4,57 Lei | |
| 155 | 153639-00 | 5 | SHOULDER SCREW | 4,57 Lei | |
| 156 | 637192-00 | 1 | LINK BAR, D27111 | 21,85 Lei | |
| 157 | 629745-00 | 1 | RETAINING RING | 6,23 Lei | |
| 158 | 330045-05 | 1 | SCREW.TEMP | 4,57 Lei | |
| 159 | 640503-00 | 1 | EXTENSION SPRING | 6,23 Lei | |
| 160 | 634726-00 | 1 | GUARD, BOTTOM, MAIN, D27111 | 130,35 Lei | |
| 161 | 635046-00 | 1 | GUARD, BOTTOM, AUXILIARY D27111 | 52,22 Lei | |
| 162 | 653947-00 | 1 | KNOB M6 D27112 | 7,37 Lei | |
| 163 | 653948-00 | 1 | SCREW, SPECIAL, FENCE CLAMP D27111 | 17,02 Lei | |
| 164 | 634736-00 | 1 | FENCE,SLIDING RH D27111 | 34,05 Lei | |
| 165 | 645156-00 | 1 | LABEL WARNING TABLE D27111 | 15,12 Lei | |
| 166 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,57 Lei | |
| 167 | 860491-01 | 1 | SPRING,CONED-DISC 15X8.2X0.8 | 4,57 Lei | |
| 168 | 720929-00 | 1 | KNOB M6 UNI5448 ZN | 4,57 Lei | |
| 169 | 931429-00 | 1 | TOOTHED WASHER | 4,57 Lei | |
| 170 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,57 Lei | |
| 171 | 931997-00 | 1 | SCREW | 4,57 Lei | |
| 172 | 862427-00 | 1 | KNOB D.40X16-M8X23-BLACK | 4,57 Lei | |
| 173 | 634734-00 | 1 | BRACKET, ARM PIN, D27111 | 15,12 Lei | |
| 174 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,57 Lei | |
| 175 | 385567-04 | 1 | WRENCH,TORX T40 | 10,29 Lei | |
| 176 | 645746-00 | 2 | BUSHING NYLINER 10L7-5/8 D27111 | 8,64 Lei | |
| 198 | 652236-00 | 1 | BLACK LEAD | 7,37 Lei | |
| 200 | 869231-04 | 1 | S/A FENCE D27111 | 433,24 Lei | |
| 210 | 860322-00 | 1 | RING,SPRING RADIAL D5 UNI7434 | 4,57 Lei | |
| 211 | 653767-00 | 1 | FELTRO | 4,57 Lei | |
| 212 | 393071-00 | 1 | PLATE | 4,57 Lei | |
| 213 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,57 Lei | |
| 214 | 650829-00 | 1 | PLATE,SPINDLE LOCK PIN DRIVE | 15,12 Lei | |
| 215 | 860073-07 | 1 | WASHER,FLAT 6.4X11 UNI6592 ZN | 4,57 Lei | |
| 216 | 868082-00 | 1 | SPRING | 4,57 Lei | |
| 217 | 650846-00 | 1 | PIN,LOCK D27112 | 13,85 Lei | |
| 220 | 650828-00 | 1 | BRACKET | 25,54 Lei | |
| 225 | 651250-00 | 1 | CORD HOLDER | 4,57 Lei | |
| 230 | 330045-14 | 3 | SCREW M5X16 T25 | 4,57 Lei | |
| 231 | 647385-00 | 1 | COVER GEAR D27112 | 106,98 Lei | |
| 232 | 616979-01 | 1 | O RING 72,76X1,78 | 4,57 Lei | |
| 233 | 330003-66 | 1 | BEARING,BALL | 41,93 Lei | |
| 234 | 860094-06 | 2 | SCREW,PAN PH/TT M.5X10UNI8112 | 4,57 Lei | |
| 235 | 869219-08 | 1 | SHAFT AND GEAR D27112 | 318,26 Lei | |
| 236 | 386780-00 | 1 | BEARING | 13,85 Lei | |
| 300 | N121000 | 1 | SA HANDLES D27112 (SERVICE) | 88,55 Lei | |
| 301 | 330045-05 | 1 | SCREW.TEMP | 4,57 Lei | |
| 302 | 650889-00 | 1 | CABLE INLET RING | 5,21 Lei | |
| 303 | 397118-00 | 1 | WEAR GUIDE | 10,29 Lei | |
| 304 | 621135-00 | 1 | WARNING LABEL | 7,37 Lei | |
| 350 | 654313-00 | 1 | S/A DUST MOUTH D27112 | 57,81 Lei | |
| 351 | 654787-00 | 1 | RING | 4,57 Lei | |
| 352 | 330045-23 | 4 | SCREW | 4,57 Lei | |
| 356 | 860083-12 | 1 | NUT M6 | 4,57 Lei | |
| 357 | 654312-00 | 1 | FLAPPER D27112 | 52,22 Lei | |
| 358 | 607491-00 | 2 | PUSH RIVET | 4,57 Lei | |
| 360 | 650855-00 | 1 | FELT | 4,57 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei | |
| 801 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei | |
| 821 | N049806 | 1 | NAMEPLATE D27112-QS T.1 | 13,5 Lei |
