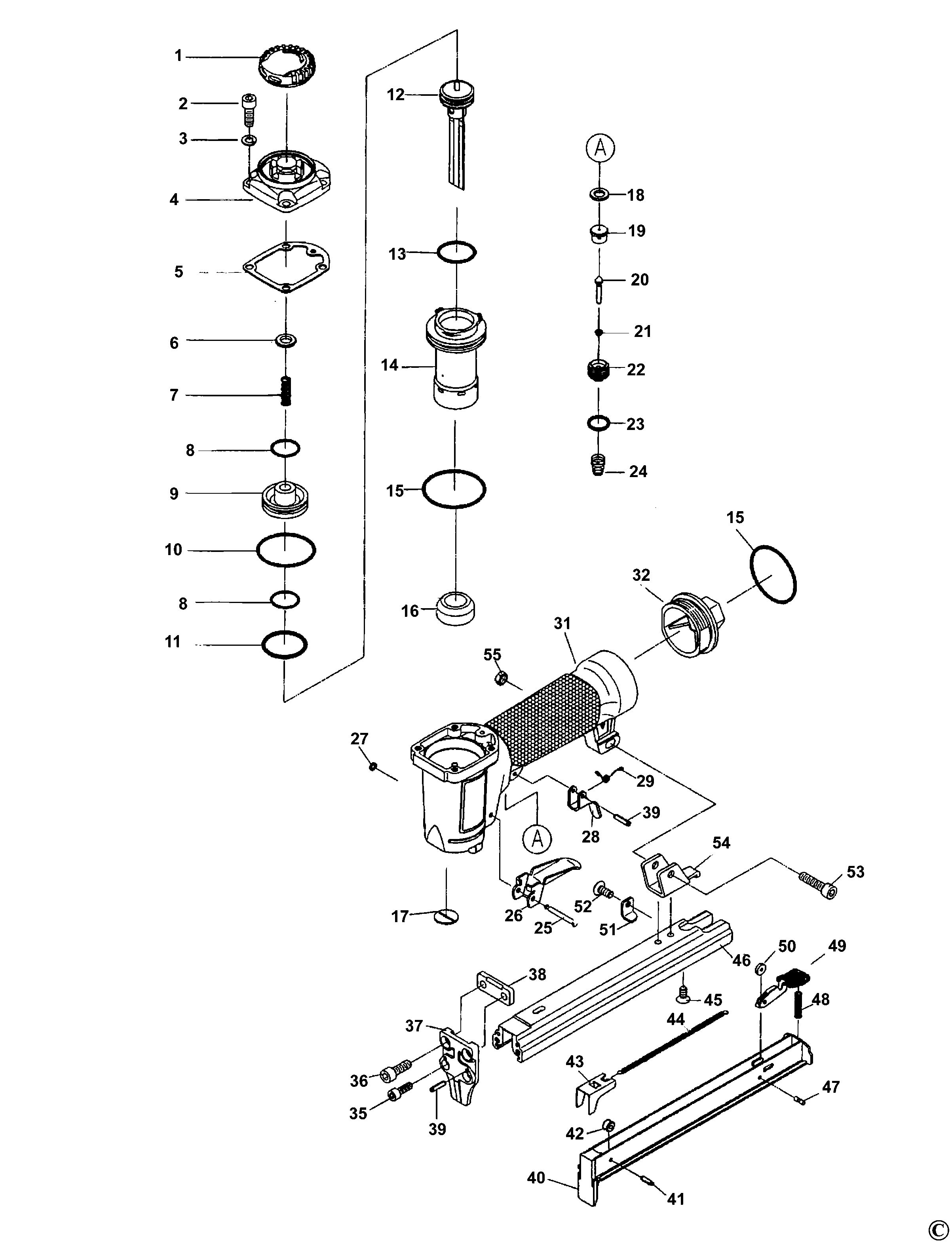

STANLEY NAILER (Type 1)
SKU Produs: APC-MPU /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | P0590000200 | 1 | Exhaust Cover | 18,06 Lei | |
| 2 | 174306 | 1 | SCREW SHCS M4X0.7X14 | 5,15 Lei | |
| 3 | 1D104 | 1 | SPRING WASHER | 5,15 Lei | |
| 7 | P1115200862 | 1 | SPRING | 4,5 Lei | |
| 11 | 175557 | 1 | O-RING | 5,15 Lei | |
| 14 | P1112001100 | 1 | CYLINDER | 40,9 Lei | |
| 21 | 174339 | 1 | O-RING, .138X.059 | 5,15 Lei | |
| 22 | G1100500 | 1 | GUIDE | 6,1 Lei | |
| 23 | 184452 | 1 | O RING | 4,5 Lei | |
| 24 | 174300 | 1 | SPRING, COMPRESSION, CONICAL | 5,15 Lei | |
| 25 | JA2071W1 | 1 | STEPPED PIN | 5,15 Lei | |
| 27 | 174073 | 1 | O RING | 5,15 Lei | |
| 29 | P1115203362 | 1 | Spring of Trigger | 4,5 Lei | |
| 31 | G4222700 | 1 | HOUSING | 127,2 Lei | |
| 32 | P1110001340 | 1 | END CAP | 51 Lei | |
| 35 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 36 | S0110516100 | 1 | BOLT | 4,5 Lei | |
| 37 | P1120001001 | 1 | COVER | 56,4 Lei | |
| 38 | P1115101901 | 1 | SPACER | 8,4 Lei | |
| 40 | P1125101501 | 1 | MAGAZINE | 104,4 Lei | |
| 41 | 184436 | 1 | PIN | 3,78 Lei | |
| 42 | P1115202562 | 1 | PULLEY | 3,78 Lei | |
| 45 | 9R199443 | 1 | SCREW | 4,57 Lei | |
| 46 | P1120000863 | 1 | MAGAZINE | 68,7 Lei | |
| 50 | 174093 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 51 | P1115100501 | 1 | STOP PLATE | 5,1 Lei | |
| 53 | S0110522100 | 1 | BOLT | 4,5 Lei | |
| 54 | P1115102901 | 1 | BRACKET | 12,4 Lei |
