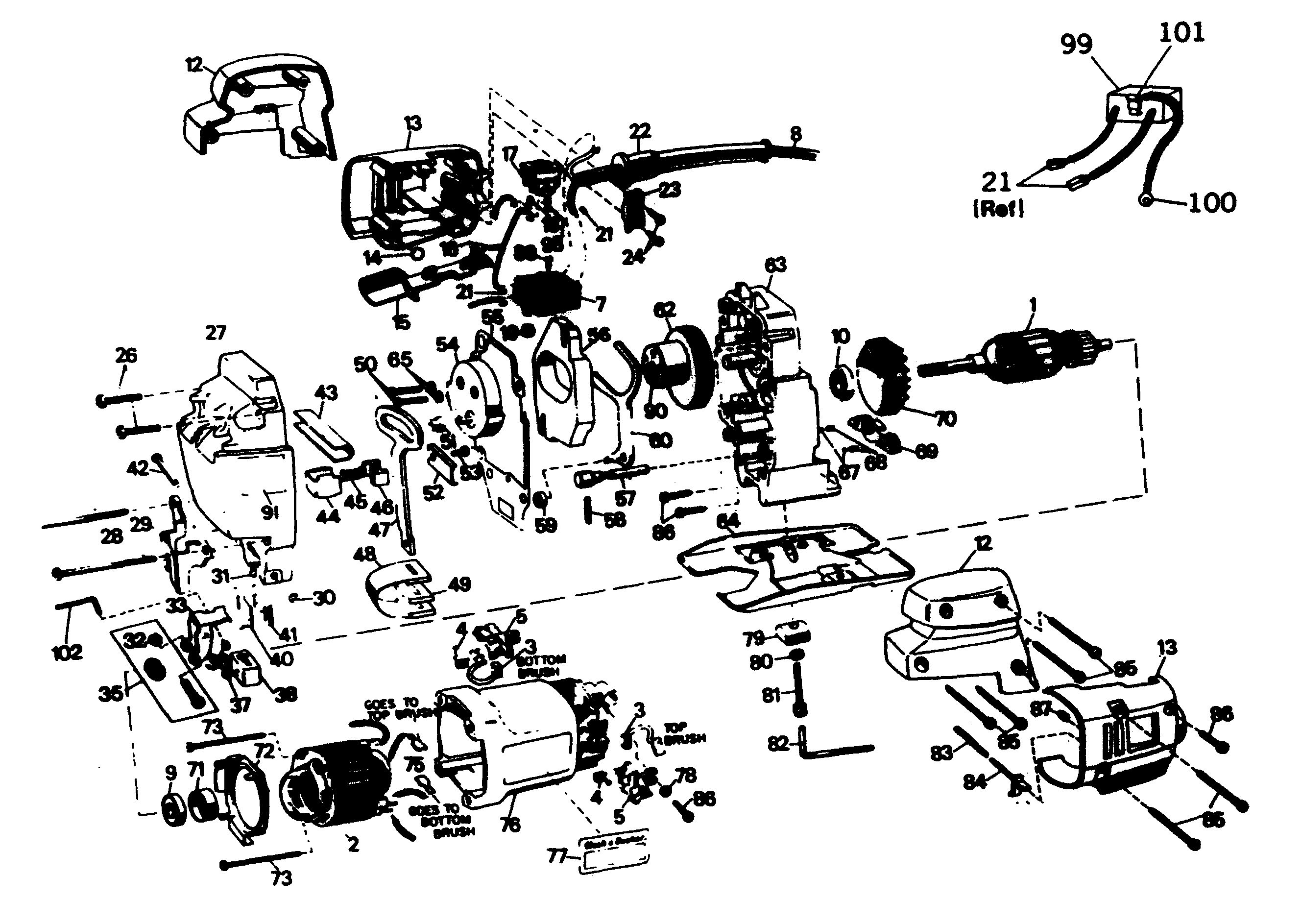

JIGSAW
SKU Produs: HD3159
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 9 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 9 | N110358 | 1 | BEARING | 17,02 Lei | |
| 10 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 14 | 050050-00 | 1 | O RING DW831 | 4,57 Lei | |
| 22 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 24 | 330013-03 | 2 | PLASTITE SCREW | 4,7 Lei | |
| 26 | 330045-08 | 2 | SCREW | 4,57 Lei | |
| 37 | 330022-16 | 1 | SCREW | 4,57 Lei | |
| 53 | 330045-05 | 1 | SCREW.TEMP | 4,57 Lei | |
| 54 | 133828-01SV | 1 | PLATE | 78,1 Lei | |
| 62 | 133827-02SV | 1 | GEAR SA | 282,1 Lei | |
| 67 | 000475-00 | 2 | BALL STEEL 3/16 | 4,57 Lei | |
| 80 | 098198-05 | 1 | WASHER, LOCK | 4,57 Lei | |
| 82 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 87 | 095114-00 | 1 | PLUG | 4,7 Lei | |
| 87 | 96211600 | 1 | STAP | 4,5 Lei | |
| 90 | 330004-06 | 2 | BEARING, NEEDLE | 10,29 Lei |
