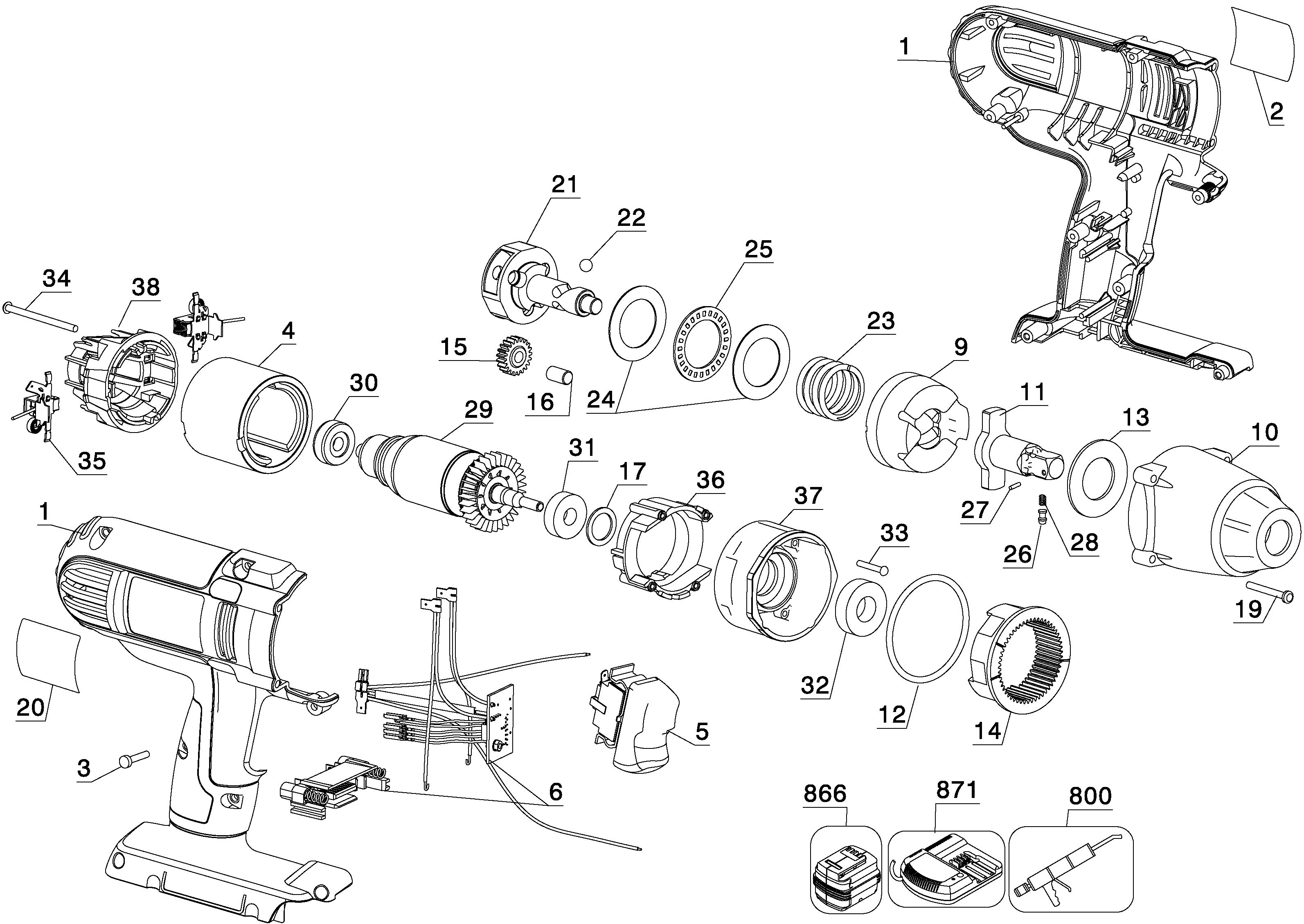

CORDLESS IMPACT WRENCH
SKU Produs: DC800KL
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 633412-00 | 1 | CLAMSHELL SET | 109,5 Lei | |
| 2 | 637843-00 | 1 | IDENTITY LABEL | 6,1 Lei | |
| 3 | 330019-04 | 8 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,7 Lei | |
| 5 | 610552-00SV | 1 | SWITCH SA | 246,5 Lei | |
| 10 | 615803-00SV | 1 | BARREL | 219,9 Lei | |
| 12 | 610542-00 | 1 | O RING | 4,5 Lei | |
| 13 | 610539-00 | 1 | WASHER THRUST | 14,8 Lei | |
| 14 | 648605-00 | 1 | Gear | 16,6 Lei | |
| 15 | 610545-00 | 3 | PLANET GEAR | 7,5 Lei | |
| 16 | 611316-00 | 3 | ROLL PIN | 4,5 Lei | |
| 17 | 611488-00 | 1 | WASHER | 13,5 Lei | |
| 19 | 330019-06 | 4 | SCREW, PLSTC THD FORM, M3.5x32 T15 | 4,7 Lei | |
| 20 | N090343 | 1 | RATING PLATE | 8,4 Lei | |
| 22 | 005190-00 | 2 | BALL STEEL | 4,5 Lei | |
| 23 | 613461-00 | 1 | SPRING | 16,6 Lei | |
| 26 | N020802 | 1 | DETENT | 10,5 Lei | |
| 27 | 099205-07 | 1 | ROLL PIN | 14,2 Lei | |
| 28 | 038769-00 | 1 | SPRING, CPRSN | 5,3 Lei | |
| 28 | 40260300 | 1 | BELT | 78,1 Lei | |
| 29 | N360880 | 1 | ARMATURE 36V | 154,1 Lei | |
| 30 | 391032-00 | 1 | SA BEARING AND BOOT | 22,4 Lei | |
| 31 | 605040-17 | 1 | BEARING, BALL, CW MFG | 38,6 Lei | |
| 32 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,4 Lei | |
| 33 | 330019-49 | 4 | SCREW, PLASTIC THREAD FORM, M3 * 16 T10 | 4,5 Lei | |
| 34 | 330019-25 | 2 | SCREW, PLASTIC THD FORM, M3.5X65 T15 | 4,7 Lei | |
| 35 | 610126-00 | 2 | BRUSH SA | 20,4 Lei | |
| 36 | 610550-00 | 1 | BAFFLE FAN | 16,6 Lei | |
| 37 | 611205-00 | 1 | GEARCASE | 51 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 794,6 Lei | |
| 800 | N017298 | 1 | GREASE | 384 Lei |
