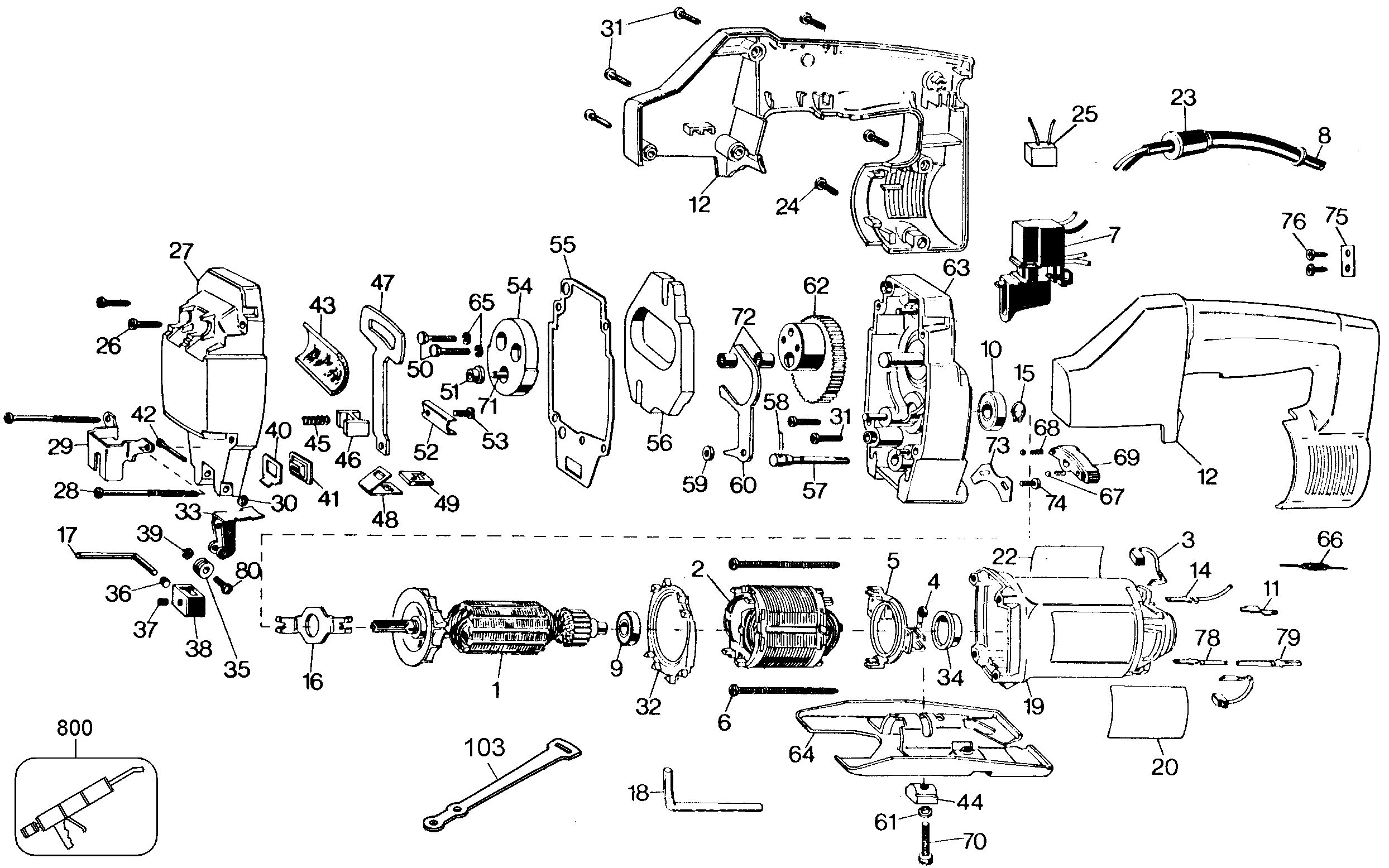

BLACK+DECKER VS HD ORB JIG SAW (P4401) Type 100
SKU Produs: 3157-22
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 445860-00 | 2 | SPRING, BRUSH | 4,57 Lei | |
| 5 | 449899-05 | 1 | RING | 30,87 Lei | |
| 6 | 445880-00 | 2 | SCREW | 4,57 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 10 | 605040-15 | 1 | BEARING, BALL | 17,02 Lei | |
| 14 | 449192-00 | 2 | TERMINAL | 4,7 Lei | |
| 15 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 18 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 23 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 24 | 330019-13 | 1 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 26 | 330045-08 | 2 | SCREW | 4,57 Lei | |
| 31 | 330019-14 | 7 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 32 | 445876-00 | 1 | BAFFLE | 7,37 Lei | |
| 34 | 445217-02 | 1 | SLEEVE | 5,21 Lei | |
| 37 | 330022-16 | 1 | SCREW | 4,57 Lei | |
| 39 | 330015-01 | 1 | NUT | 4,57 Lei | |
| 53 | 330045-05 | 1 | SCREW.TEMP | 4,57 Lei | |
| 54 | 133828-01SV | 1 | PLATE | 78,1 Lei | |
| 58 | 098185-20 | 1 | PIN | 5,21 Lei | |
| 61 | 098198-05 | 1 | WASHER, LOCK | 4,57 Lei | |
| 62 | 133827-02SV | 1 | GEAR SA | 282,1 Lei | |
| 67 | 000475-00 | 2 | BALL STEEL 3/16 | 4,57 Lei | |
| 72 | 330004-06 | 2 | BEARING, NEEDLE | 10,29 Lei | |
| 75 | 142519-00 | 1 | CABLE CLAMP | 4,7 Lei | |
| 76 | 330013-03 | 2 | PLASTITE SCREW | 4,7 Lei | |
| 103 | 065288-01 | 1 | HOLDER CHUCK KEY | 6,23 Lei |
