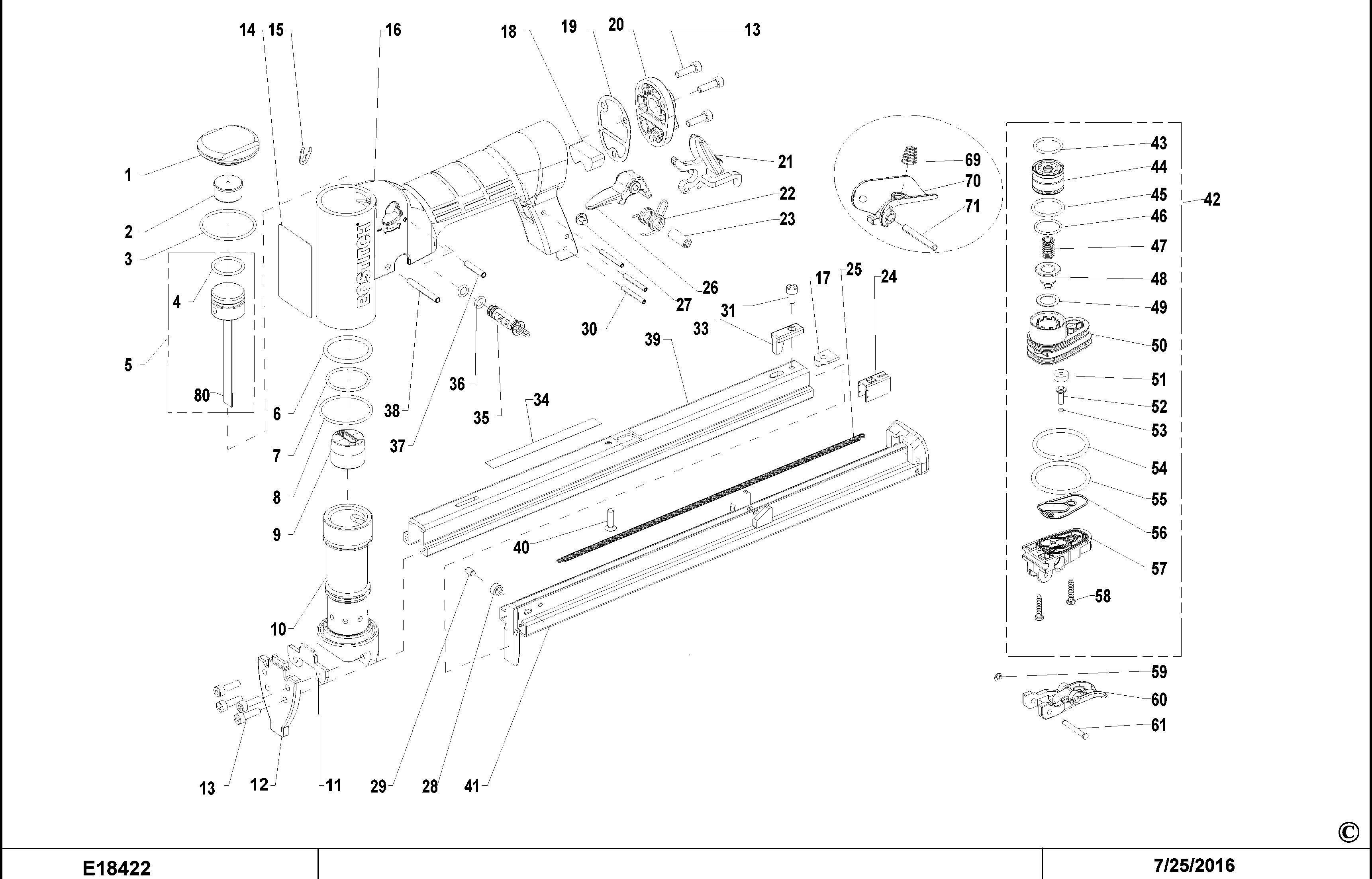

BOSTITCH STAPLER (Type REV 0)
SKU Produs: 21680B-LM-E /Type: REV 0
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 174288 | 1 | CAP | 25,52 Lei | |
| 2 | 174289 | 1 | BUMPER, PISTON STOP | 12,5 Lei | |
| 3 | 100353 | 1 | O-RING,1.301X.070 | 5,15 Lei | |
| 4 | 174308 | 1 | O-RING,.701X.075 | 5,15 Lei | |
| 5 | 177715 | 1 | ASSEMBLY, DRIVER/PISTON | 99,86 Lei | |
| 6 | 174309 | 1 | O-RING,1.049X.103 | 5,15 Lei | |
| 7 | 174310 | 1 | O-RING,.989X.070 | 5,15 Lei | |
| 9 | 174100 | 1 | BUMPER | 73,19 Lei | |
| 10 | 174098 | 1 | CYLINDER SLEEVE | 107,73 Lei | |
| 11 | 174099 | 1 | PLATE,DRIVER GUIDE | 5,15 Lei | |
| 12 | 174263 | 1 | NOSE | 43,16 Lei | |
| 13 | 174306 | 1 | SCREW SHCS M4X0.7X14 | 5,15 Lei | |
| 14 | 159831 | 1 | LABEL | 3,78 Lei | |
| 15 | 174290 | 1 | RETAINER,CLIP | 5,15 Lei | |
| 16 | 174265 | 1 | FRAME | 150,05 Lei | |
| 17 | 177722 | 1 | NUT | 10,5 Lei | |
| 18 | 174266 | 1 | MUFFLER | 5,15 Lei | |
| 19 | 174295 | 1 | GASKET, END CAP | 5,15 Lei | |
| 20 | 174296 | 1 | CAP, END | 16,49 Lei | |
| 21 | 174357 | 1 | LATCH | 28,14 Lei | |
| 22 | 174301 | 1 | SPRING,TORSION | 5,15 Lei | |
| 23 | 174302 | 1 | BUSHING, SPRING | 5,15 Lei | |
| 24 | 177723 | 1 | PUSHER | 5,15 Lei | |
| 25 | 174356 | 1 | SPRING, EXTENSION | 5,15 Lei | |
| 26 | 174297 | 1 | LATCH, INSIDE | 5,15 Lei | |
| 27 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 28 | 174293 | 1 | ROLLER | 5,15 Lei | |
| 29 | 177740 | 1 | PIN, ROLLER | 5,15 Lei | |
| 30 | 174303 | 1 | PIN,COILED,M3X22 | 5,15 Lei | |
| 31 | MSC4070-8 | 1 | SCREW | 5,15 Lei | |
| 33 | 174355 | 1 | STOP,MAGAZINE | 14,07 Lei | |
| 34 | 174317 | 1 | IDENTITY LABEL | 3,78 Lei | |
| 35 | 174287 | 1 | VALVE, ENERGY CONTROL | 5,15 Lei | |
| 36 | 174311 | 1 | O-RING,.217X.059 | 5,15 Lei | |
| 37 | 174304 | 1 | PIN,COILED,M4X18 | 5,15 Lei | |
| 38 | 174305 | 1 | PIN,COILED,M4X30 | 5,15 Lei | |
| 39 | 177730 | 1 | MAGAZINE | 47,78 Lei | |
| 40 | 174307 | 1 | SCREW | 5,15 Lei | |
| 41 | 177709 | 1 | ASSY, SLIDING MAGAZINE | 88,41 Lei | |
| 42 | TVA13 | 1 | ASSEMBLY, TRIGGER VALVE | 58,17 Lei | |
| 43 | 86459 | 1 | O-RING,.614X.070 | 5,15 Lei | |
| 44 | 174278 | 1 | HEAD VALVE | 16,49 Lei | |
| 45 | 174312 | 1 | O-RING,.700X.072 | 5,15 Lei | |
| 46 | 102163 | 1 | O-RING,.591 X .059 | 66,15 Lei | |
| 47 | 174280 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 48 | 174279 | 1 | SEAL, EXHAUST | 5,15 Lei | |
| 49 | 174281 | 1 | WASHER,SPECIAL | 8,51 Lei | |
| 50 | 174277 | 1 | HOUSING, HEAD VALVE ASSY | 10,5 Lei | |
| 51 | 174282 | 1 | SEAL, TRIGGER STEM | 5,15 Lei | |
| 52 | 174283 | 1 | STEM | 5,15 Lei | |
| 53 | 174313 | 1 | O-RING,.042X.050 | 5,15 Lei | |
| 54 | 108467 | 1 | O-RING,1.237X.103 | 43,16 Lei | |
| 56 | 174284 | 1 | SEAL, VALVE | 5,15 Lei | |
| 57 | 174276 | 1 | HOUSING, TRIGGER | 5,15 Lei | |
| 58 | 174285 | 1 | SCREW, M3 X 16 | 5,15 Lei | |
| 59 | 174298 | 1 | RETAINER | 5,15 Lei | |
| 60 | 174269 | 1 | ASSEMBLY, TRIGGER | 10,5 Lei | |
| 61 | 174268 | 1 | PIN, SPECIAL | 5,15 Lei | |
| 69 | 174300 | 1 | SPRING, COMPRESSION, CONICAL | 5,15 Lei | |
| 70 | 9R209571 | 1 | TRIGGER | 6,23 Lei | |
| 71 | 177685 | 1 | PIN-M4x32 | 5,15 Lei |
