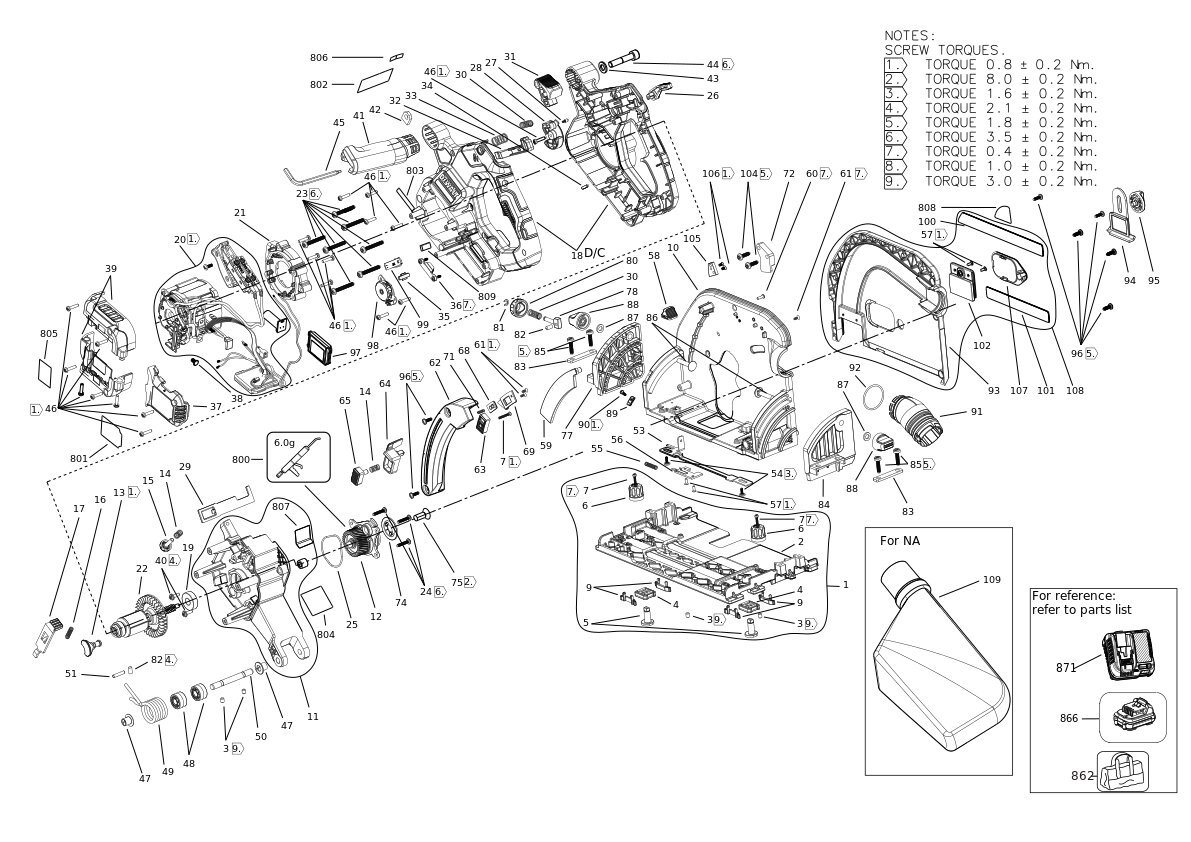

DEWALT FIERASTRAU VERTICAL CU ACUMULATOR (Type 1)
SKU Produs: DCS525NT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 7 | 330019-24 | 2 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 14 | N092954 | 2 | SPRING COMPRESSION | 4,57 Lei | |
| 16 | N738885 | 1 | SPRING | 4,57 Lei | |
| 19 | 605040-17 | 1 | BEARING, BALL, CW MFG | 37,73 Lei | |
| 23 | 330045-18 | 7 | SCREW | 4,57 Lei | |
| 24 | 330045-07 | 3 | SCREW | 4,57 Lei | |
| 25 | N094024 | 1 | O RING | 4,57 Lei | |
| 27 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 30 | NA116068 | 2 | SPRING | 3,78 Lei | |
| 34 | N261987 | 1 | CAP | 4,57 Lei | |
| 35 | N394333 | 1 | LENS | 4,57 Lei | |
| 36 | N791558 | 1 | COVER | 3,78 Lei | |
| 38 | NA105798 | 1 | TERMINAL BLOCK | 15,12 Lei | |
| 40 | N840182 | 2 | SCREW | 4,57 Lei | |
| 43 | 330016-03 | 1 | WASHER, PLAIN. STEEL, 8X16X1.6 THICK | 4,57 Lei | |
| 44 | 949886-38 | 1 | CAP SCREW, M8X40 | 7,37 Lei | |
| 46 | 330019-66 | 20 | SCREW | 4,57 Lei | |
| 54 | N118088 | 2 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 57 | 90502260 | 4 | SCREW | 4,57 Lei | |
| 60 | 330019-41 | 1 | VITE PLASTIC | 4,57 Lei | |
| 71 | N527878 | 1 | SPRING | 4,57 Lei | |
| 75 | 490549-00 | 1 | SCREW CSK SOCKET M8 | 4,57 Lei | |
| 82 | 330022-18 | 2 | SCREW | 5,21 Lei | |
| 83 | 490877-00 | 2 | HINGE PLATE | 5,21 Lei | |
| 85 | 330045-15 | 4 | Screw Metal | 4,57 Lei | |
| 86 | 098128-40 | 2 | BOLT, CARRIAGE M6X30 | 4,57 Lei | |
| 87 | NA099091 | 2 | WASHER | 3,78 Lei | |
| 90 | 330045-43 | 1 | SCREW TAPTITE | 4,57 Lei | |
| 96 | 330045-45 | 7 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 97 | N655436 | 1 | MODULE | 120,82 Lei | |
| 104 | 330045-14 | 2 | SCREW M5X16 T25 | 4,57 Lei | |
| 106 | NA356205 | 2 | SCREW | 3,78 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 861 | N429655 | 1 | KITBOX | 240,38 Lei |
