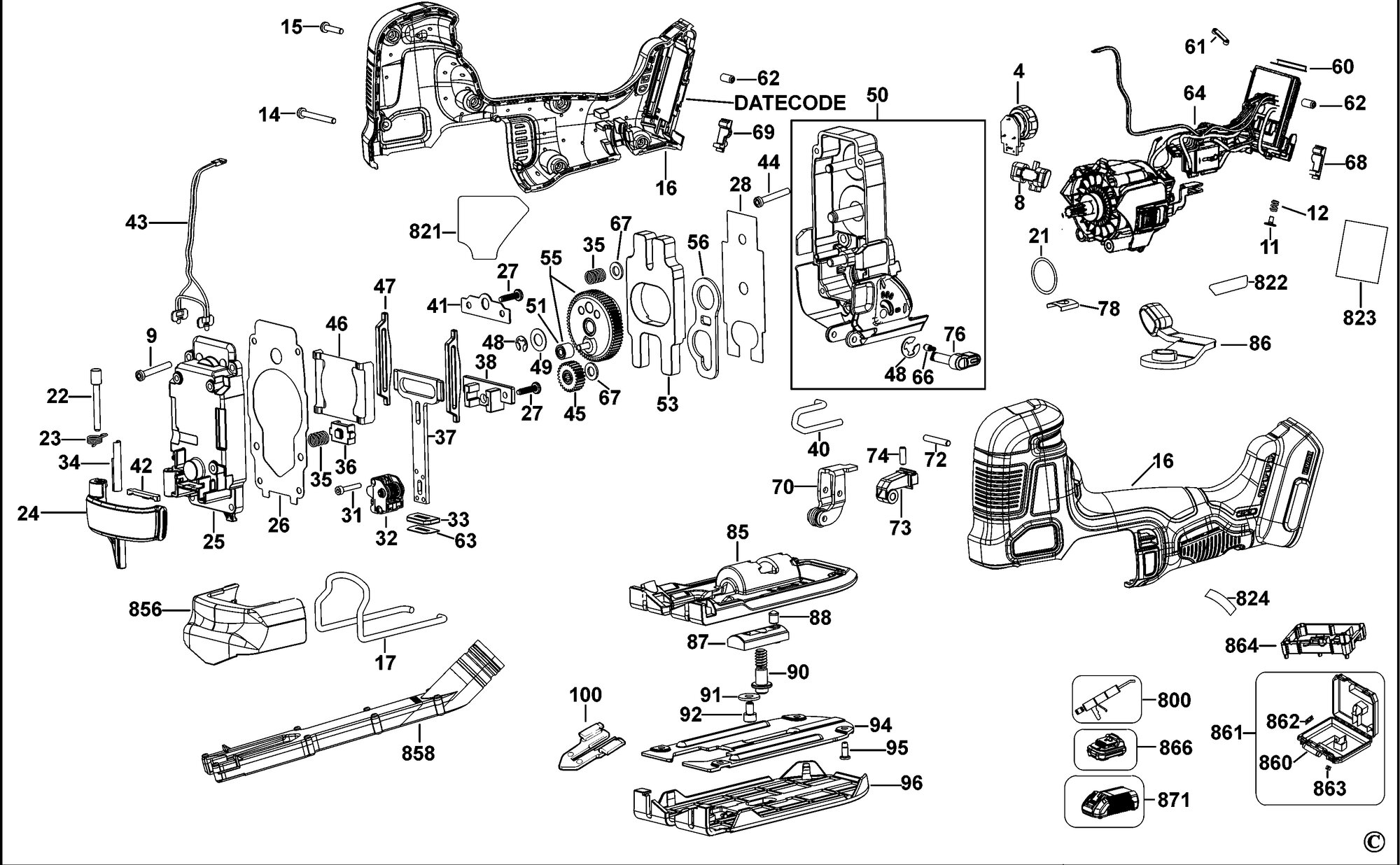

DEWALT XR 18V BL JIGSAW BG BARE (Type 10)
SKU Produs: DCS335N /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | N573899 | 1 | WHEEL SPEED | 41,93 Lei | |
| 8 | N544264 | 1 | BUTTON LOCK-OFF | 6,23 Lei | |
| 9 | 330045-07 | 4 | SCREW | 4,57 Lei | |
| 11 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 12 | N102647 | 1 | COIL TERMINAL BLOCK SPRING | 4,57 Lei | |
| 14 | 330019-06 | 1 | SCREW, PLSTC THD FORM, M3.5x32 T15 | 4,57 Lei | |
| 15 | 330019-03 | 9 | Screw M3.5X16 T15 | 4,57 Lei | |
| 16 | N577780 | 1 | SA HANDLESET BODY GRIP JIGSAW | 106,98 Lei | |
| 17 | N523099 | 1 | GUARD | 30,87 Lei | |
| 21 | 697029 | 1 | O-RING | 4,57 Lei | |
| 22 | N524855 | 1 | BLADE CLAMP LEVER PIN | 17,02 Lei | |
| 23 | N515119 | 1 | SPRING BLADE CLAMP LEVER | 4,57 Lei | |
| 24 | N565505 | 1 | BLADE CLAMP | 25,54 Lei | |
| 25 | N561929 | 1 | GEARCASE COVER | 57,81 Lei | |
| 26 | N514407 | 1 | GASKET | 4,57 Lei | |
| 27 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 28 | N509093 | 1 | WEAR PAD | 5,21 Lei | |
| 31 | 582837-00 | 2 | BOLT | 4,57 Lei | |
| 32 | N723991 | 1 | BLADE CLAMP | 96,56 Lei | |
| 33 | N723984 | 1 | SEAL SA | 13,85 Lei | |
| 34 | N548918 | 1 | CLAMP LEVER WEAR PLATE | 4,57 Lei | |
| 35 | N543918 | 1 | COMPRESSION SPRING | 4,57 Lei | |
| 36 | N573337 | 1 | BEARING LOWER STEEL | 8,64 Lei | |
| 37 | N499406 | 1 | RECIP SHAFT | 57,81 Lei | |
| 38 | N500477 | 1 | LOWER BEARING RAIL | 10,29 Lei | |
| 40 | N547459 | 1 | PINCH GUARD | 5,21 Lei | |
| 41 | N539624 | 1 | UPPER BEARING RAIL COVER | 4,57 Lei | |
| 42 | N543121 | 1 | LED RETAINER | 4,57 Lei | |
| 43 | N518314 | 1 | SA JIGSAW LED AND WIRES | 25,54 Lei | |
| 44 | 330019-21 | 4 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,57 Lei | |
| 45 | N723986 | 1 | Gear | 18,06 Lei | |
| 46 | N539623 | 1 | Upper Bearing Rail Wear | 5,21 Lei | |
| 47 | N539622 | 2 | Upper Bearing Rails | 5,21 Lei | |
| 48 | 571181-00 | 2 | E CLIP | 4,57 Lei | |
| 49 | 582829-00 | 1 | WASHER | 4,57 Lei | |
| 50 | N723994 | 1 | GEARCASE SA | 106,98 Lei | |
| 51 | 330004-20 | 1 | BEARING NEEDLE | 7,37 Lei | |
| 53 | N499205 | 1 | CONNTERWEIGHT | 30,87 Lei | |
| 55 | N723993 | 1 | GEAR SA | 106,98 Lei | |
| 56 | N509087 | 1 | ORBITAL ACTION LINK | 6,23 Lei | |
| 60 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 61 | N261987 | 1 | CAP | 4,57 Lei | |
| 62 | N487311 | 2 | RUBBER PIN | 4,57 Lei | |
| 63 | N579198 | 1 | SEAL | 4,57 Lei | |
| 64 | NA596761 | 1 | MOTOR & SWITCH SA | 702,56 Lei | |
| 66 | 326467-00 | 1 | DETENT | 4,57 Lei | |
| 67 | N563127 | 1 | WASHER M6 | 4,57 Lei | |
| 68 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 69 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 70 | N723988 | 1 | SA Support Bracket Service | 41,93 Lei | |
| 72 | NA124855 | 1 | PIN SA | 41,93 Lei | |
| 73 | N504498 | 1 | BLOWER NOZZLE | 4,57 Lei | |
| 74 | N516272 | 1 | ROLLER PIN 4X14 | 4,57 Lei | |
| 78 | N562695 | 1 | Bevel Wear Plate | 4,57 Lei | |
| 85 | N527629 | 1 | SHOE | 57,81 Lei | |
| 86 | N536524 | 1 | LEVER | 25,54 Lei | |
| 87 | N516006 | 1 | CLAMPING BAR | 17,02 Lei | |
| 88 | 584686-00 | 1 | PLUNGER | 8,64 Lei | |
| 90 | 582826-00 | 1 | BOLT | 6,23 Lei | |
| 91 | N595377 | 1 | WASHER M5x14,5x1,5 | 4,57 Lei | |
| 92 | N595379 | 1 | M5X8 Socket Head Cap Screw | 4,57 Lei | |
| 94 | N555231 | 1 | STEEL SHOE | 41,93 Lei | |
| 95 | N056875 | 4 | SCREW M4X10 | 4,57 Lei | |
| 96 | N548480 | 1 | SOLE PLATE | 15,12 Lei | |
| 100 | 402140-00 | 1 | GUIDE, BLADE | 6,23 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 821 | NB051937 | 1 | LABEL SHEET | 3,78 Lei | |
| 822 | N664486 | 1 | BRAND LABEL | 4,31 Lei | |
| 823 | NB051937 | 1 | LABEL SHEET | 3,78 Lei | |
| 824 | N581733 | 1 | MOTOR LABEL DCS334/335 | 4,57 Lei | |
| 856 | N575480 | 1 | FRONT DUST SHIELD | 7,37 Lei | |
| 858 | N564892 | 1 | DUST PORT | 25,54 Lei | |
| 860 | H1400198008 | 2 | HANDLE | 17,02 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | N577616 | 1 | KITBOX TRAY FOR DCS334 DCS335 | 57,81 Lei |
