DEWALT MASINA DE GAURIT/INSUSURBAT CU ACUMULATOR (Type 11)
SKU Produs: DCD791NT /Type: 11
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N438742 | 1 | TRANSMISSION SA | 307,21 Lei | |
| 2 | NA421036 | 1 | CLAMSHELL SA | 73,19 Lei | |
| 3 | NA067843 | 1 | MOTOR & SWITCH SA | 390,29 Lei | |
| 4 | 682211-00 | 9 | SCREW, PLASTITE | 4,57 Lei | |
| 6 | N399342 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 7 | N599497 | 1 | CHUCK KEYLESS | 73,19 Lei | |
| 8 | N442167 | 1 | LED LIGHT | 57,81 Lei | |
| 11 | N439416 | 1 | LABEL | 4,57 Lei | |
| 12 | N298039 | 1 | BRUSHLESS BRANDING LABEL | 8,64 Lei | |
| 13 | N377990 | 4 | SCREW M3.12X16 T10 | 4,57 Lei | |
| 14 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 15 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 16 | N475326 | 1 | SA MAGNET HOLDER USTI (MOULD) | 21,85 Lei | |
| 20 | N393603 | 1 | SELECTOR | 4,57 Lei | |
| 21 | N392855 | 1 | DETENT SPRING | 4,57 Lei | |
| 22 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 30 | N400715 | 1 | PM SPLINE RING | 8,64 Lei | |
| 31 | N438901 | 1 | GEARCASE SA | 34,05 Lei | |
| 32 | 326467-00 | 1 | DETENT | 4,57 Lei | |
| 33 | N411204 | 6 | CLUTCH PIN | 4,57 Lei | |
| 34 | N411205 | 1 | CLUTCH WASHER | 5,21 Lei | |
| 35 | N411207 | 1 | CLUTCH NUT | 6,23 Lei | |
| 36 | N422472 | 1 | CLUTCH SPRING | 17,02 Lei | |
| 37 | N422232 | 1 | CLUTCH COLLAR BL DRILL DRIVER | 13,85 Lei | |
| 38 | N438918 | 1 | SPINDLE SA | 52,22 Lei | |
| 39 | N039795 | 6 | SCREW | 4,57 Lei | |
| 40 | N396641 | 1 | TRANSMISSION PLATE | 4,57 Lei | |
| 41 | N075506 | 6 | SCREW | 4,57 Lei | |
| 42 | N400716 | 1 | GEAR CASE G2 | 5,21 Lei | |
| 43 | N063567 | 1 | FLAT BACKING PLATE | 4,57 Lei | |
| 44 | N030988 | 1 | 1ST REDUCTION RING GEAR | 7,37 Lei | |
| 45 | N030999 | 5 | 1ST REDUCTION PLANET | 4,57 Lei | |
| 46 | N124371 | 1 | CARRIER SA | 25,54 Lei | |
| 47 | N031079 | 1 | 2ND REDUCTION RING GEAR | 15,12 Lei | |
| 48 | N032409 | 1 | CLUTCH WASHER | 4,57 Lei | |
| 49 | N031080 | 5 | 2ND REDUCTION PLANET | 4,57 Lei | |
| 50 | N122400 | 1 | CARRIER SA | 30,87 Lei | |
| 51 | N031083 | 5 | 3RD REDUCTION PLANET | 4,57 Lei | |
| 52 | N078410 | 1 | 3RD REDUCTION GEAR, FLANGED | 17,02 Lei | |
| 53 | N122401 | 1 | CARRIER SA | 21,85 Lei | |
| 54 | N022985 | 1 | LOCKING RING | 19,95 Lei | |
| 55 | N093416 | 5 | ROLLER | 4,57 Lei | |
| 56 | N442738 | 1 | ANVIL ASSEMBLY | 34,05 Lei | |
| 57 | N090435 | 1 | WASHER | 4,57 Lei | |
| 58 | N397466 | 1 | SHIFTER BUTTON | 5,21 Lei | |
| 59 | N035441 | 1 | SHIFTER WIREFORM | 4,57 Lei | |
| 60 | N560646 | 1 | O RING | 3,78 Lei | |
| 70 | N439418 | 1 | LED LABEL EU 18V FOR G2 DRILL | 4,57 Lei | |

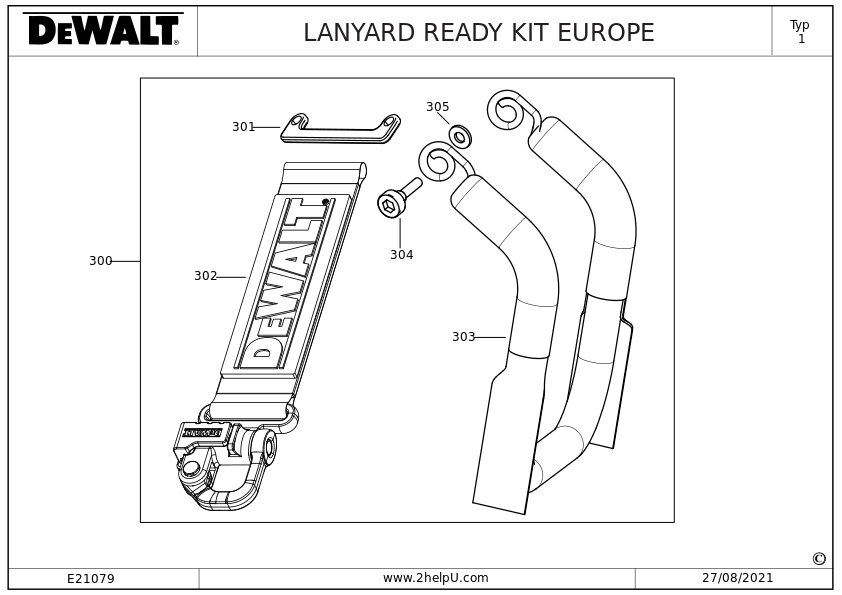

| 300 | NA325022 | 1 | SERVICE KIT | 438,59 Lei | |
| 301 | N537349 | 1 | STRAP. HOOKED | 4,57 Lei | |
| 302 | NA012391 | 2 | BRACKET | 41,93 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 41,93 Lei | |
| 304 | N542271 | 2 | SCREW | 12,71 Lei | |
| 305 | N462739 | 2 | WASHER | 4,57 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei | |
| 800 | NA360289 | 1 | GREASE | 66,15 Lei | |
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | 254,48 Lei | |
| 836 | 559697-99 | 1 | SERVICE TOOL | 201,76 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei |
