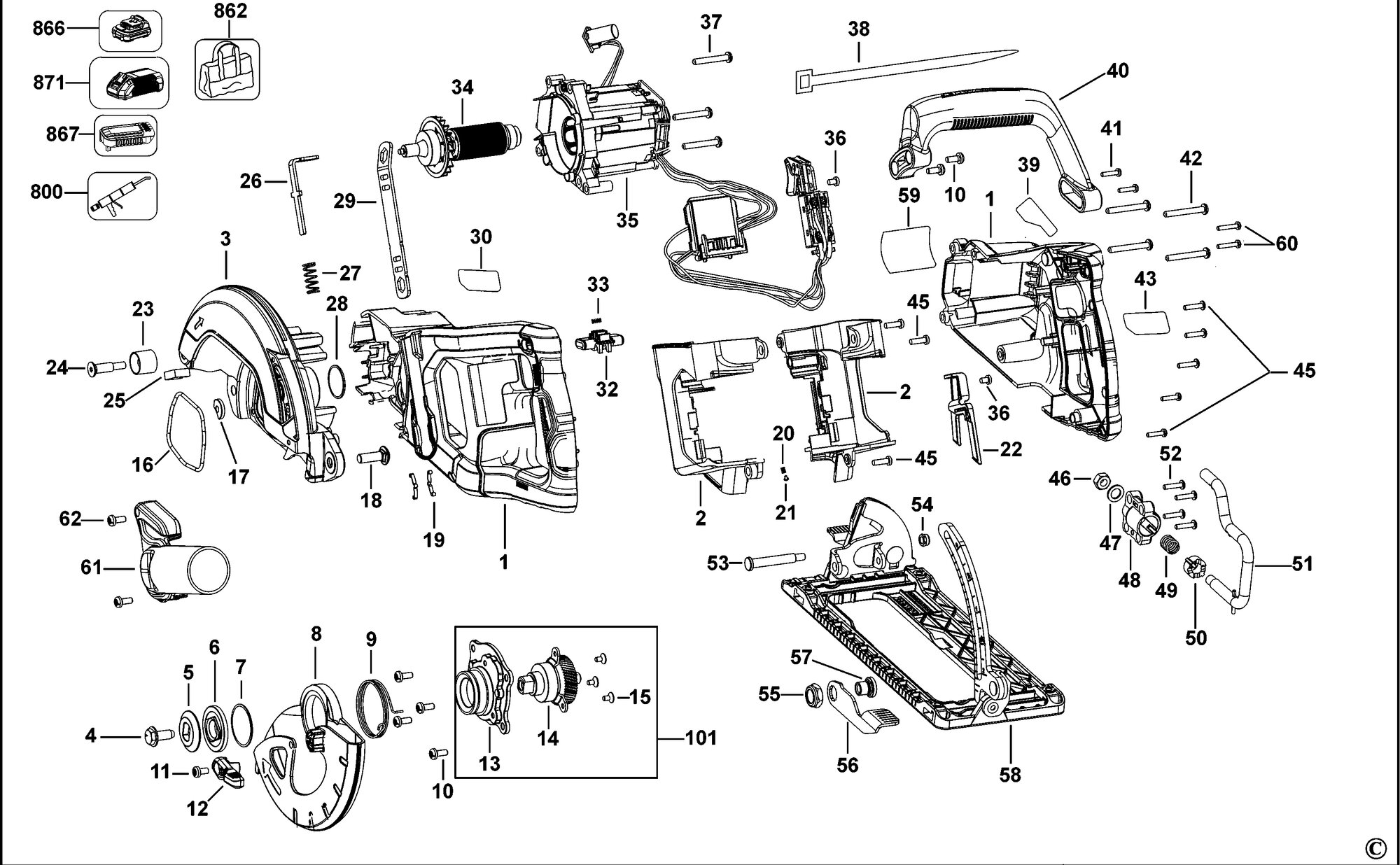

DEWALT FIERĂSTRĂU CIRCULAR (Type 2)
SKU Produs: DCS577N /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N580814 | 1 | CLAMSHELL SET | 157,92 Lei | |
| 2 | N519417 | 1 | CLAMSHELL SET | 41,93 Lei | |
| 3 | N608364 | 1 | GUARD UPPER | 225,26 Lei | |
| 4 | N521085 | 1 | BLADE BOLT M8 | 4,57 Lei | |
| 5 | N520395 | 1 | OUTER FLANGE | 21,85 Lei | |
| 6 | N519762 | 1 | INNNER FLANGE | 15,12 Lei | |
| 7 | N529425 | 1 | RETAINER | 4,57 Lei | |
| 8 | N515400 | 1 | GUARD LOWER | 88,55 Lei | |
| 9 | N521530 | 1 | SPRING | 6,23 Lei | |
| 10 | 330045-49 | 6 | SCREW | 4,57 Lei | |
| 11 | 098094-13 | 1 | SCREW M5x13 | 4,57 Lei | |
| 12 | N086628 | 1 | LEVER | 7,37 Lei | |
| 13 | N821586 | 1 | HUB | 145,09 Lei | |
| 14 | N557822 | 1 | SPINDLE SA | 145,09 Lei | |
| 15 | N461177 | 3 | SCREW | 4,57 Lei | |
| 16 | N521648 | 1 | SEAL | 15,12 Lei | |
| 17 | N525586 | 1 | DEFLECTOR | 4,57 Lei | |
| 18 | N531356 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 19 | N525261 | 2 | DETENT | 4,57 Lei | |
| 20 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 21 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 22 | N527530 | 1 | COVER | 7,37 Lei | |
| 23 | 381066-00 | 1 | BUMPER | 4,57 Lei | |
| 24 | N086135 | 1 | SCREW | 4,57 Lei | |
| 25 | N522053 | 1 | SEAL | 5,21 Lei | |
| 26 | N519670 | 1 | SPINDLE LOCK | 6,23 Lei | |
| 27 | N529070 | 1 | SPRING | 4,57 Lei | |
| 28 | N521649 | 1 | O RING | 7,37 Lei | |
| 29 | N420180 | 1 | SPANNER | 15,12 Lei | |
| 30 | N596262 | 1 | LABEL | 4,57 Lei | |
| 32 | N422878 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 33 | N433343 | 1 | SPRING | 4,57 Lei | |
| 34 | N796840 | 1 | ROTOR SA | 472,24 Lei | |
| 35 | N796765 | 1 | STATOR SA | 1673,25 Lei | |
| 36 | 330019-10 | 2 | SCREW | 4,57 Lei | |
| 37 | 330045-15 | 3 | Screw Metal | 4,57 Lei | |
| 38 | 90504014 | 1 | CABLE TIE | 4,57 Lei | |
| 39 | N459253 | 1 | LABEL | 4,57 Lei | |
| 40 | N519999 | 1 | HANDLE | 70,39 Lei | |
| 41 | 330019-12 | 2 | SCREW | 4,57 Lei | |
| 42 | 330045-19 | 4 | SCREW TEMP | 4,57 Lei | |
| 43 | N596263 | 1 | LABEL | 4,57 Lei | |
| 45 | 330019-03 | 8 | Screw M3.5X16 T15 | 4,57 Lei | |
| 46 | N549053 | 1 | NUT | 4,57 Lei | |
| 47 | N521194 | 1 | WASHER | 4,57 Lei | |
| 48 | N520011 | 1 | HOLDER | 8,64 Lei | |
| 49 | N521193 | 1 | SPRING | 4,57 Lei | |
| 50 | N521192 | 1 | BUSH | 4,57 Lei | |
| 51 | N542818 | 1 | HOOK | 41,93 Lei | |
| 52 | 330065-07 | 4 | SCREW | 4,57 Lei | |
| 53 | N521532 | 1 | BOLT | 4,57 Lei | |
| 54 | N541610 | 1 | LOCK-NUT | 4,57 Lei | |
| 55 | N521958 | 1 | LOCK NUT | 4,57 Lei | |
| 56 | N522425 | 1 | LEVER | 7,37 Lei | |
| 57 | N521735 | 1 | NUT | 17,02 Lei | |
| 58 | N608378 | 1 | SHOE SA | 451,79 Lei | |
| 59 | NA049845 | 1 | RATING LABEL | 4,31 Lei | |
| 60 | 90611830 | 2 | SCREW | 4,57 Lei | |
| 61 | N555341 | 1 | DUST PORT | 13,85 Lei | |
| 62 | N455083 | 2 | SCREW | 4,57 Lei | |
| 101 | N557802 | 1 | SPINDLE SA | 276,84 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
