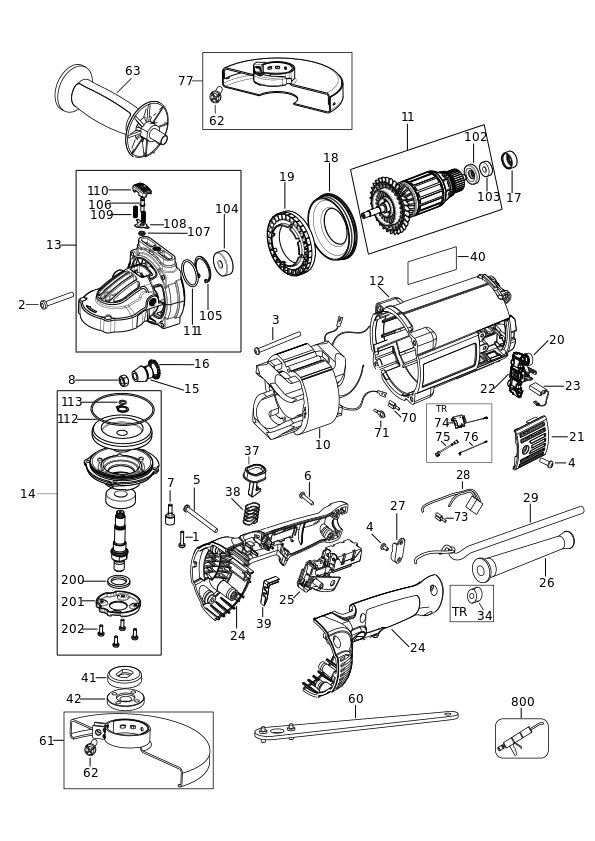

DEWALT POLIZOR UNGHIULAR (Type 10)
SKU Produs: DWE496 /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | 4,57 Lei | |
| 2 | 330019-26 | 4 | SCREW M5.28 X42 | 4,57 Lei | |
| 3 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 4 | 330019-11 | 4 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 5 | 330019-18 | 3 | SCREW, PLASTITE | 3,78 Lei | |
| 6 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 7 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 8 | 330015-03 | 1 | NUT,HEX | 4,57 Lei | |
| 10 | N565603 | 1 | FIELD 230V FOR SERVICE DWE497-TR | 213,19 Lei | |
| 11 | N565218 | 1 | ARMATURE 230V | 349,13 Lei | |
| 12 | N513668 | 1 | FIELDCASE | 80,04 Lei | |
| 13 | N252619 | 1 | GEARCASE SA | 195,02 Lei | |
| 14 | N203624 | 1 | GEARCASE COVER SA | 181,55 Lei | |
| 15 | N099841 | 1 | PINION | 30,87 Lei | |
| 16 | N132602 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 17 | 609970-00 | 1 | CUP, RUBBER | 4,57 Lei | |
| 18 | N094853 | 1 | BAFFLE FAN | 7,37 Lei | |
| 19 | N094854 | 1 | FAN | 7,37 Lei | |
| 20 | 645650-00 | 2 | BRUSH SPRING | 5,21 Lei | |
| 21 | 394387-01 | 2 | DOOR, BRUSH | 12,71 Lei | |
| 22 | N410308 | 2 | BRUSH HLDR.ASSY | 17,02 Lei | |
| 23 | N404514 | 2 | BRUSH PAIR | 37,73 Lei | |
| 25 | N482564 | 1 | SWITCH LOCK ON | 88,55 Lei | |
| 26 | N219433 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 27 | 604119-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 28 | 632218-00 | 1 | SA CAPACITOR | 4,57 Lei | |
| 29 | 562226-65 | 1 | CORDSET (EURO) | 70,39 Lei | |
| 34 | N419846 | 1 | FERRITE BEAN | 13,85 Lei | |
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 38 | 636502-00 | 1 | PRING | 4,57 Lei | |
| 39 | N391190 | 1 | COVER | 4,57 Lei | |
| 41 | 403150-01 | 1 | WASHER, CLAMP, INNER | 21,85 Lei | |
| 42 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 21,85 Lei | |
| 60 | 635261-00 | 1 | WRENCH PIN | 19,95 Lei | |
| 61 | NA179697 | 1 | GUARD | 88,41 Lei | |
| 62 | 606863-00 | 1 | SCREW, MACHINE, PAN HD, M6 * 1.0 * 25 | 4,57 Lei | |
| 63 | 651858-01 | 1 | SA HANDLE SIDE | 25,54 Lei | |
| 70 | 612273-00 | 1 | TERMINAL | 4,57 Lei | |
| 74 | N422067 | 1 | CONTROL MODULE SA | 120,82 Lei | |
| 75 | N442585 | 1 | LEAD SA | 6,23 Lei | |
| 76 | N442586 | 1 | LEAD SA | 7,37 Lei | |
| 77 | NA216780 | 1 | SA GUARD LAG KEYLESS 230MM DIAMOND | 119,91 Lei | |
| 102 | 393238-00 | 1 | SHIELD DUST | 5,21 Lei | |
| 103 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 104 | N389509 | 1 | EARING, BALL, CW MFG | 19,95 Lei | |
| 105 | N173539 | 1 | RETAINER | 4,57 Lei | |
| 106 | N173538 | 1 | LOCK PIN | 7,37 Lei | |
| 107 | N173540 | 1 | O RING | 4,57 Lei | |
| 108 | N108422 | 1 | PLATE | 4,57 Lei | |
| 109 | N110675 | 2 | SPRING | 4,57 Lei | |
| 110 | N110236 | 1 | BUTTON | 4,57 Lei | |
| 111 | N226986 | 1 | O RING | 10,29 Lei | |
| 112 | 397031-00 | 1 | O RING | 4,57 Lei | |
| 113 | 660143-00 | 1 | O RING | 4,57 Lei | |
| 200 | N103732 | 1 | FELT | 4,57 Lei | |
| 201 | N095989 | 1 | CAP | 13,85 Lei | |
| 202 | N247325 | 4 | SCREW | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
