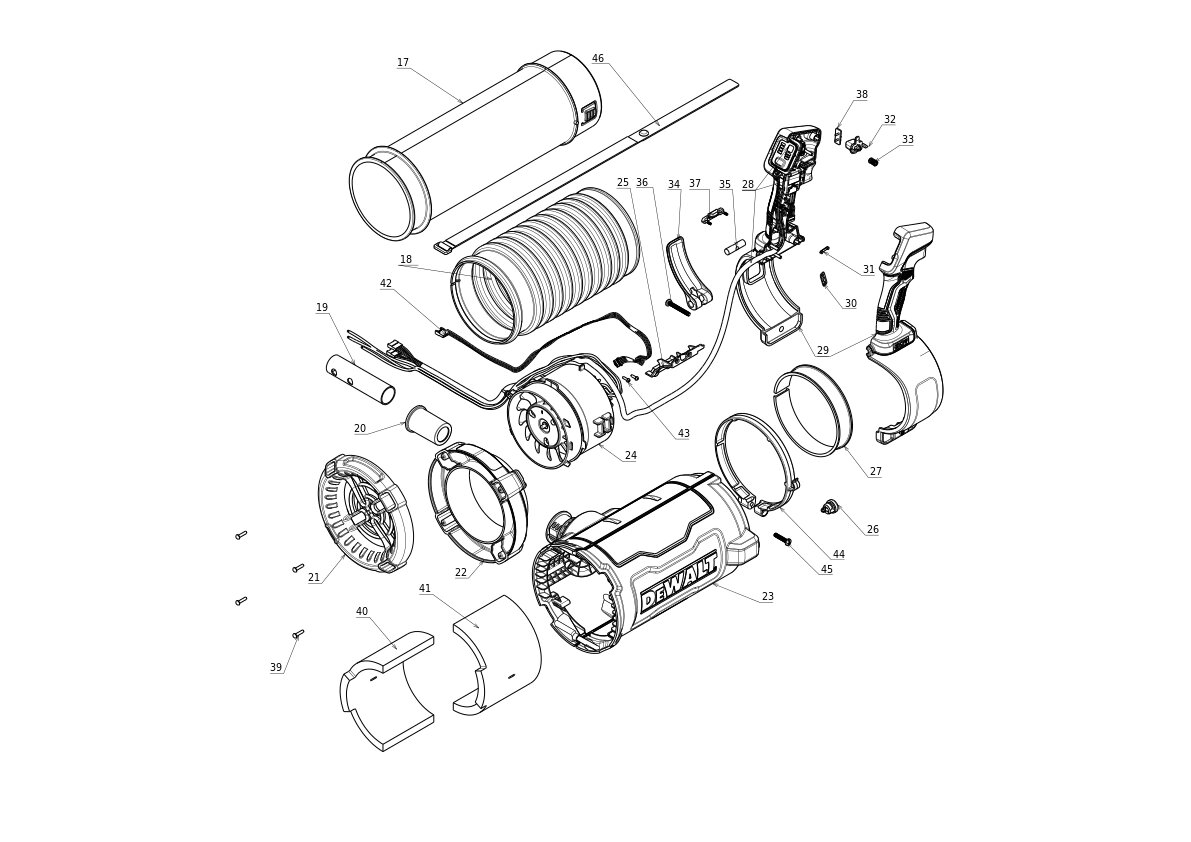

DEWALT SUFLANTA RUCSAC (Type 1)
SKU Produs: DCMBBL800N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA425369 | 1 | NOZZLE BLOWER | 21,11 Lei | |
| 2 | NA498590 | 1 | BLOW TUBE SA | 66,15 Lei | |
| 3 | NA571350 | 1 | HARNESS | 208,74 Lei | |
| 6 | NA817997 | 8 | SCREW-M6 25 | 3,78 Lei | |
| 8 | NA421955 | 1 | BACKPLATE | 99,86 Lei | |
| 9 | NA573323 | 1 | COVER-FASCIA FRONT | 16,49 Lei | |
| 10 | NA472153 | 1 | COVER-FASCIA REAR | 10,5 Lei | |
| 11 | NA512194 | 1 | STAND | 79,8 Lei | |
| 12 | NA421762 | 1 | COVER-ARM MOUNT FRONT | 47,78 Lei | |
| 14 | 90611830 | 4 | SCREW | 4,57 Lei | |
| 15 | 604410-00 | 12 | SCREW | 4,57 Lei | |
| 16 | NA564857 | 10 | NUT-M6X1 NYLON INSERT | 3,78 Lei | |
| 17 | NA497457 | 1 | TUBE-GRIP TUBE | 21,11 Lei | |
| 18 | NA425374 | 1 | TUBE-FLEX TUBE | 43,16 Lei | |
| 19 | NA422352 | 1 | ROD-CANTILEVER ROD | 18,06 Lei | |
| 20 | NA422353 | 1 | SLEEVE-NYLON SLEEVE | 12,5 Lei | |
| 21 | NA298876 | 1 | GRILLE | 43,16 Lei | |
| 22 | NA291204 | 1 | INTAKE | 28,14 Lei | |
| 23 | NA419831 | 1 | HOUSING SA | 25,52 Lei | |
| 25 | NA875701 | 1 | RETAINER | 5,15 Lei | |
| 27 | NA427063 | 1 | COLLAR | 18,06 Lei | |
| 30 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 31 | N261987 | 1 | CAP | 4,57 Lei | |
| 32 | NA512272 | 1 | LOCK BUTTON | 7,14 Lei | |
| 33 | NA213502 | 1 | SPRING | 3,78 Lei | |
| 34 | NA532312 | 1 | LEVER | 10,5 Lei | |
| 35 | NA543904 | 1 | PIN-PIVOT PIN | 11,45 Lei | |
| 36 | NA567294 | 1 | SCREW-M5X40 | 3,78 Lei | |
| 37 | N791558 | 1 | COVER | 3,78 Lei | |
| 38 | NA255730 | 1 | BUTTON | 3,78 Lei | |
| 39 | 90611830 | 28 | SCREW | 4,57 Lei | |
| 40 | NA523585 | 1 | LINER-FOAM ASSY SIDE | 10,5 Lei | |
| 41 | NA523586 | 1 | LINER-FOAM COVER SIDE | 10,5 Lei | |
| 42 | NA560258 | 1 | CONNECTING WIRE-SA WH MOTOR HALL CONNECT | 14,07 Lei | |
| 43 | 330019-41 | 4 | VITE PLASTIC | 4,57 Lei | |
| 44 | NA531286 | 1 | CLAMP-HOSE CLAMP | 25,52 Lei | |
| 45 | NA564870 | 1 | SCREW-M5X25 | 3,78 Lei | |
| 46 | NA553785 | 1 | STRAP-VELCRO STRAP | 12,5 Lei |
