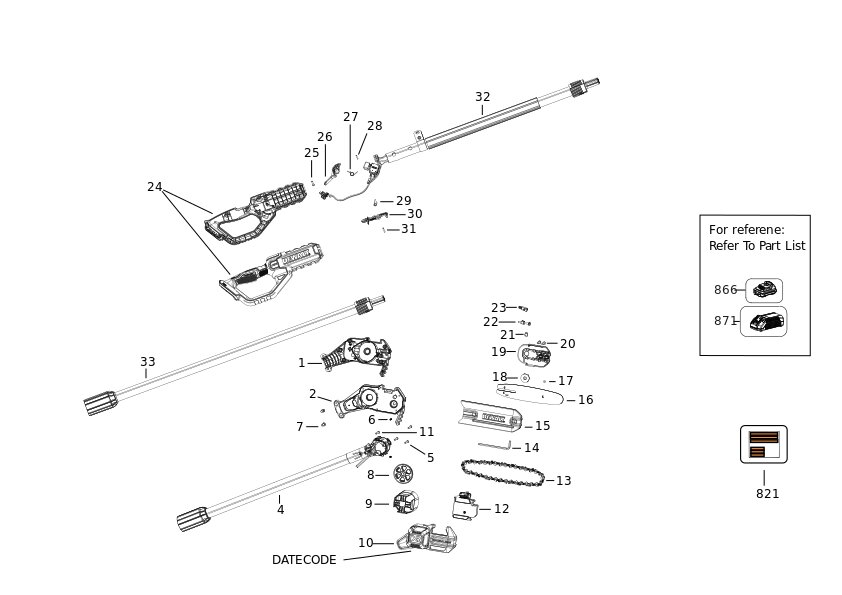

DEWALT ASCUTITOR PENTRU LANT (Type 2)
SKU Produs: DCMPS567N /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA187192 | 1 | GEARCASE COVER | 34,65 Lei | |
| 2 | NA187194 | 1 | COVER | 28,14 Lei | |
| 4 | N810082 | 1 | MOTOR SA | 613,14 Lei | |
| 5 | 330019-45 | 5 | SCREW | 4,57 Lei | |
| 6 | 176951-00 | 2 | SCREW | 4,57 Lei | |
| 7 | 330019-13 | 2 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 8 | NA144900 | 1 | OUTPUT SHAFT SA | 106,98 Lei | |
| 9 | N637496 | 1 | CAP | 15,12 Lei | |
| 10 | N597817 | 1 | CAP | 30,87 Lei | |
| 11 | 330019-05 | 3 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 12 | N808747 | 1 | TANK | 57,81 Lei | |
| 13 | N603750 | 1 | CHAIN | 52,22 Lei | |
| 14 | 624736-00 | 1 | HEX KEY 5 MM | 7,37 Lei | |
| 15 | N897811 | 1 | SHEATH | 14,07 Lei | |
| 16 | N735015 | 1 | BAR | 88,55 Lei | |
| 17 | 90104270 | 1 | O RING | 4,57 Lei | |
| 18 | N597159 | 1 | SPROCKET | 8,64 Lei | |
| 19 | NA032230 | 1 | COVER | 19,95 Lei | |
| 20 | N656621 | 2 | SCREW | 4,57 Lei | |
| 21 | 624521-00 | 1 | LOCKING RING | 4,57 Lei | |
| 22 | N810076 | 1 | TENSIONING PULLEY | 12,71 Lei | |
| 23 | N619179 | 1 | PUMP SA | 30,87 Lei | |
| 24 | NA879205 | 1 | HANDLE SA | 88,41 Lei | |
| 25 | 330019-03 | 16 | Screw M3.5X16 T15 | 4,57 Lei | |
| 26 | N646128 | 1 | TRIGGER | 12,71 Lei | |
| 27 | N659016 | 1 | SPRING | 4,57 Lei | |
| 28 | N670326 | 1 | PIVOT | 4,57 Lei | |
| 29 | N664433 | 1 | SPRING | 4,57 Lei | |
| 30 | N674967 | 1 | ACTUATOR | 13,85 Lei | |
| 31 | N664030 | 1 | PIVOT | 4,57 Lei | |
| 33 | NB436931 | 1 | POLE PIECE SA | 119,91 Lei | |
| 821 | NA533339 | 1 | RATING LABEL | 4,31 Lei |
