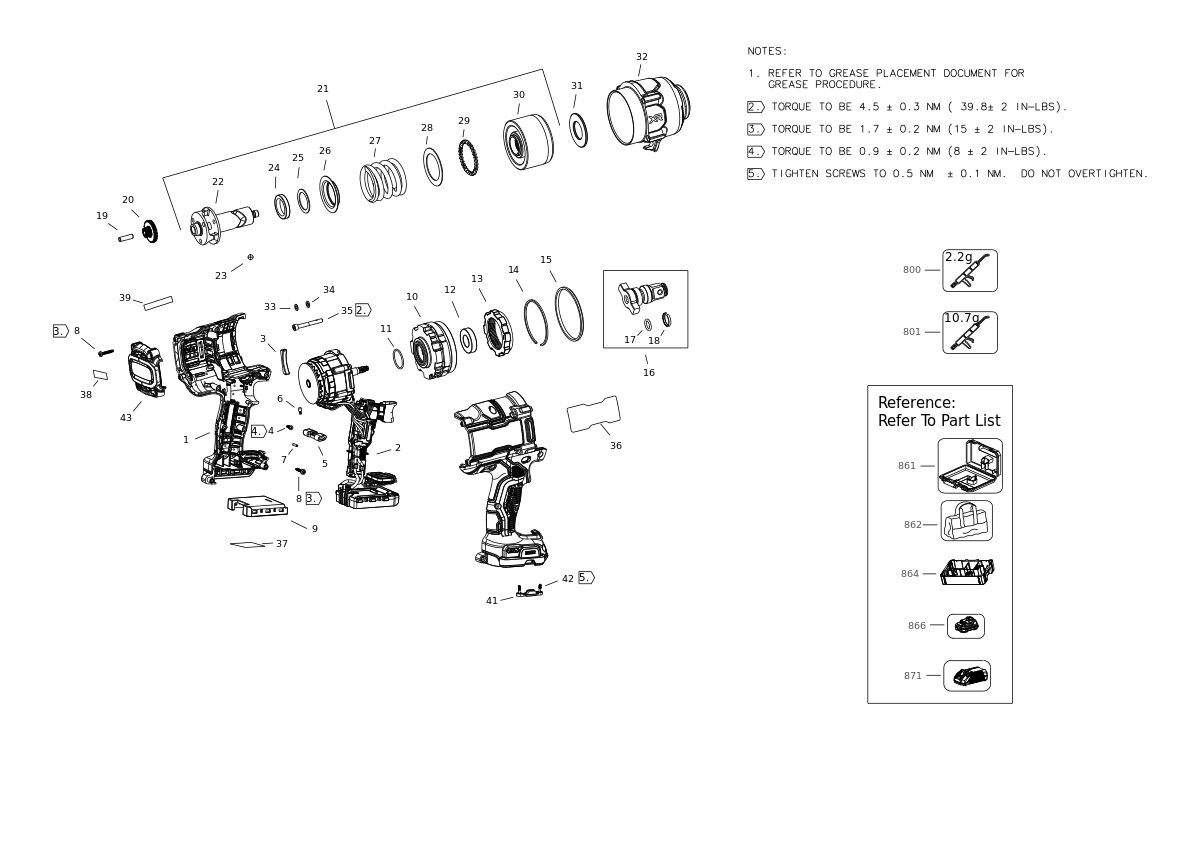

DEWALT MASINA DE INSURUBAT CU IMPACT CU ACUMULATOR (Type 2)
SKU Produs: DCF964N /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA233933 | 1 | HOUSING SA | 66,15 Lei | |
| 2 | NA379141 | 1 | MOTOR & SWITCH SA | 1,04 Lei | |
| 3 | N864724 | 2 | MOUNT | 3,78 Lei | |
| 4 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 5 | N865539 | 1 | ACTUATOR FWD/REV | 3,78 Lei | |
| 6 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 7 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 8 | 330019-04 | 11 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 9 | NA169892 | 1 | ISOLATOR | 14,07 Lei | |
| 10 | N846042 | 1 | GEARCASE | 73,19 Lei | |
| 11 | N411414 | 1 | O RING | 4,57 Lei | |
| 13 | N846040 | 1 | INTERGEAR | 47,78 Lei | |
| 14 | N888542 | 1 | RING | 5,15 Lei | |
| 15 | N846523 | 1 | RUBBER SEAL | 6,09 Lei | |
| 17 | N399753 | 1 | O RING | 4,57 Lei | |
| 18 | N432643 | 1 | NOSE RING | 5,21 Lei | |
| 19 | N756784 | 3 | PIN | 4,31 Lei | |
| 20 | NA031992 | 3 | Gear | 43,16 Lei | |
| 22 | NA391783 | 1 | CARRIER | 208,74 Lei | |
| 23 | NA091720 | 2 | BALL STEEL | 3,78 Lei | |
| 24 | N745990 | 1 | BUMPER | 6,09 Lei | |
| 25 | N745989 | 1 | WASHER | 3,78 Lei | |
| 26 | N745984 | 1 | WASHER | 4,31 Lei | |
| 27 | NA496106 | 1 | SPRING | 47,78 Lei | |
| 28 | N745996 | 1 | WASHER THRUST | 4,31 Lei | |
| 29 | 000475-00 | 30 | BALL STEEL 3/16 | 4,57 Lei | |
| 30 | NA680045 | 1 | IMPACTOR | 310,17 Lei | |
| 31 | N735844 | 1 | WASHER | 5,21 Lei | |
| 32 | NA341393 | 1 | NOSE SA | 161,18 Lei | |
| 33 | 90607886 | 4 | WASHER | 66,15 Lei | |
| 34 | N783664 | 4 | WASHER | 3,78 Lei | |
| 35 | N808793 | 4 | SCREW | 3,78 Lei | |
| 36 | NB145302 | 1 | RATING LABEL | 3,78 Lei | |
| 37 | NB145303 | 1 | LABEL | 3,78 Lei | |
| 38 | NA352854 | 1 | LABEL | 3,78 Lei | |
| 39 | NA247945 | 1 | LABEL | 3,78 Lei | |
| 41 | N787996 | 1 | INSERT | 4,57 Lei | |
| 42 | N831593 | 2 | SCREW | 4,57 Lei | |
| 43 | NA714523 | 1 | END CAP | 8,51 Lei | |
| 800 | NA360289 | 1 | GREASE | 66,15 Lei | |
| 801 | N017298 | 1 | GREASE | 213,19 Lei |
