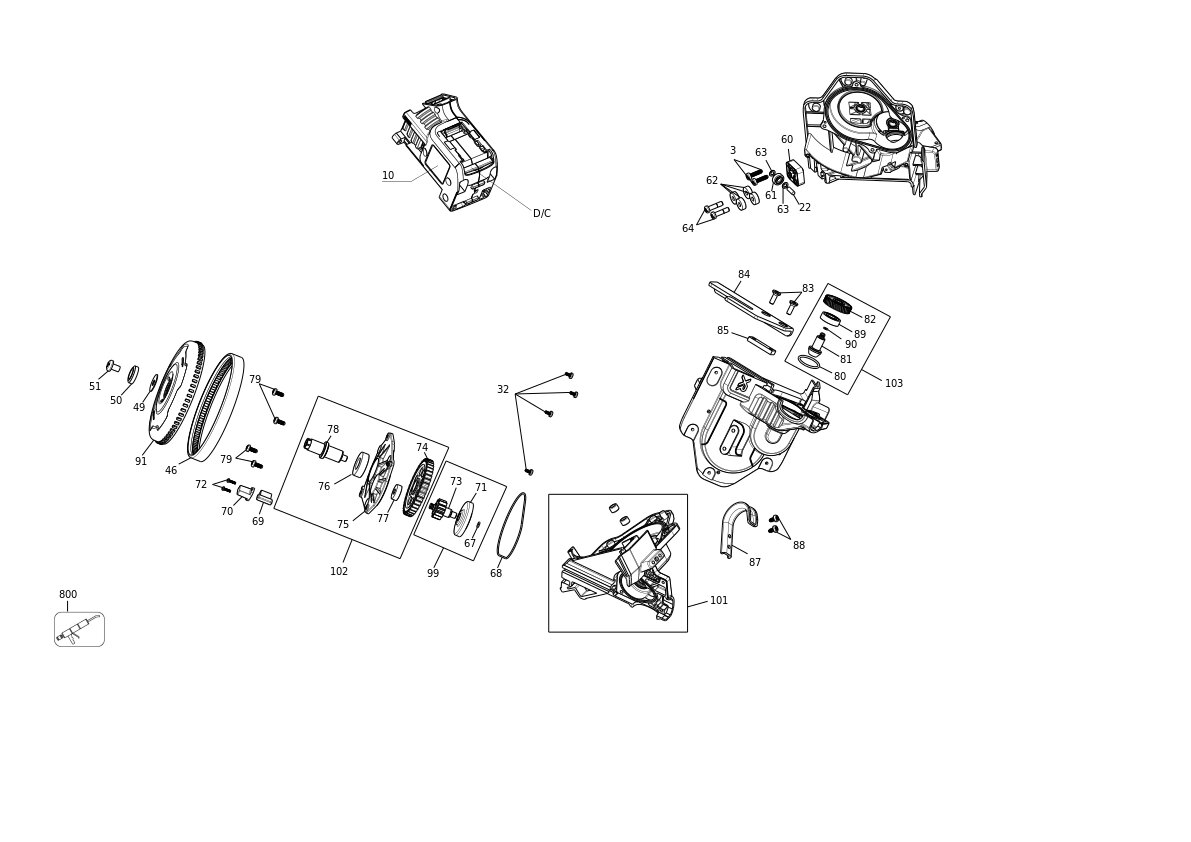

DEWALT FIERASTRAU CU BANDA (Type 1)
SKU Produs: DCS374N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N422502 | 1 | O RING | 3,78 Lei | |
| 2 | 330045-17 | 2 | SCREW | 12,5 Lei | |
| 3 | 330045-15 | 6 | Screw Metal | 4,57 Lei | |
| 4 | N421115 | 1 | SHROUD | 150,05 Lei | |
| 5 | 652853-00 | 2 | ROD | 5,15 Lei | |
| 6 | 330019-74 | 2 | SCREW | 3,78 Lei | |
| 7 | N467435 | 2 | BOLT | 6,09 Lei | |
| 8 | N476480 | 1 | HANDLE SA | 34,65 Lei | |
| 9 | 638064-00 | 2 | WASHER LOCK | 3,78 Lei | |
| 10 | NA799548 | 1 | RATING LABEL | 3,78 Lei | |
| 11 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 12 | N413576 | 1 | TUBE. EXHAUST | 3,78 Lei | |
| 13 | 330065-05 | 1 | SCEW PLSTC THD FORM M4X10 T20 | 4,57 Lei | |
| 14 | N400495 | 1 | BUTTON LOCK-OFF | 3,78 Lei | |
| 15 | N476319 | 1 | HOUSING SA | 43,16 Lei | |
| 16 | 654622-00 | 1 | INSERT | 3,78 Lei | |
| 18 | 682211-00 | 5 | SCREW, PLASTITE | 4,57 Lei | |
| 19 | 330019-14 | 6 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 20 | N410778 | 1 | SPEED REGULATOR | 31,19 Lei | |
| 21 | N404513 | 1 | COVERPLATE | 31,19 Lei | |
| 22 | 650732-00 | 2 | PIN | 3,78 Lei | |
| 23 | N087259 | 1 | DETENT | 4,57 Lei | |
| 24 | N416205 | 1 | LEVER | 6,09 Lei | |
| 25 | 651756-00 | 1 | SHAFT | 18,06 Lei | |
| 26 | 330045-45 | 4 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 27 | 658553-00 | 1 | SPANNER | 10,5 Lei | |
| 28 | 656970-00 | 1 | KNOB | 6,09 Lei | |
| 29 | 657027-00 | 1 | WASHER | 3,78 Lei | |
| 30 | N489902 | 1 | HANDLE | 34,65 Lei | |
| 31 | 655185-00 | 1 | BOLT | 4,31 Lei | |
| 32 | 330045-44 | 8 | SCREW, METAL THD FORM, M4X8 T20 | 4,57 Lei | |
| 33 | NA583201 | 1 | SHROUD | 25,52 Lei | |
| 34 | 651749-00 | 1 | YOKE | 11,45 Lei | |
| 35 | N242699 | 3 | SCREW | 4,57 Lei | |
| 36 | 660104-00 | 3 | BEARING HOUSING | 3,78 Lei | |
| 37 | 330024-52 | 1 | SCREW | 3,78 Lei | |
| 38 | 330016-03 | 1 | WASHER, PLAIN. STEEL, 8X16X1.6 THICK | 4,57 Lei | |
| 39 | 651748-00 | 1 | PLATE | 14,07 Lei | |
| 40 | 037653-00 | 1 | P AND R WALRET.RING | 4,57 Lei | |
| 41 | 803679 | 1 | WASHER | 3,78 Lei | |
| 42 | 656999-00 | 1 | SHAFT | 16,49 Lei | |
| 43 | 330016-21 | 1 | WASHER CON ROD D.8XD.25X3 | 4,57 Lei | |
| 44 | 656922-00 | 1 | SPACER | 3,78 Lei | |
| 45 | 873581 | 2 | SPRING | 10,5 Lei | |
| 46 | NA760196 | 2 | BAND | 47,78 Lei | |
| 47 | 803858 | 2 | BEARING | 11,45 Lei | |
| 48 | N414374 | 1 | WHEEL | 43,16 Lei | |
| 49 | 803435 | 2 | WASHER FIBRE | 5,15 Lei | |
| 50 | 863134 | 2 | WASHER | 5,15 Lei | |
| 51 | 330024-51 | 2 | SCREW | 3,78 Lei | |
| 52 | N414348 | 1 | COVER | 3,78 Lei | |
| 53 | N401707 | 1 | LED | 25,52 Lei | |
| 54 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,57 Lei | |
| 55 | 653513-00 | 1 | SCREW | 8,51 Lei | |
| 56 | 330015-12 | 1 | NUT | 3,78 Lei | |
| 57 | N418174 | 1 | BUTTON | 6,09 Lei | |
| 58 | N407055 | 1 | SLEEVE | 6,09 Lei | |
| 60 | N448267 | 2 | BLOCK | 14,07 Lei | |
| 61 | 605040-66 | 2 | BEARING | 11,45 Lei | |
| 62 | 605040-65 | 8 | BEARING | 12,71 Lei | |
| 63 | N447838 | 4 | WASHER BEARING BLOCK | 4,57 Lei | |
| 64 | 650736-00 | 4 | BOLT | 3,78 Lei | |
| 67 | N421125 | 1 | O RING | 3,78 Lei | |
| 68 | N422503 | 1 | O RING | 8,51 Lei | |
| 69 | N419842 | 1 | BRUSH | 6,09 Lei | |
| 70 | N423878 | 1 | BRUSH CAP | 3,78 Lei | |
| 71 | N413892 | 1 | RIVET | 34,65 Lei | |
| 72 | 330045-01 | 2 | SCREW | 3,78 Lei | |
| 73 | N405345 | 1 | GEARSHAFT | 34,65 Lei | |
| 74 | NA809408 | 1 | Gear | 66,15 Lei | |
| 75 | N521873 | 1 | GEARCASE COVER | 47,78 Lei | |
| 76 | 605040-41 | 1 | BEARING | 25,54 Lei | |
| 77 | 605040-55 | 1 | BEARING 608 | 15,12 Lei | |
| 78 | N395263 | 1 | OUTPUT SHAFT | 28,14 Lei | |
| 79 | 330045-49 | 4 | SCREW | 4,57 Lei | |
| 80 | N439121 | 1 | O RING | 3,78 Lei | |
| 81 | N413891 | 1 | SPINDLE | 43,16 Lei | |
| 82 | N398341 | 1 | Gear | 31,19 Lei | |
| 83 | 660010-00 | 2 | SCREW | 3,78 Lei | |
| 84 | 650716-00 | 1 | SHOE | 16,49 Lei | |
| 85 | 659418-00 | 1 | SHOE | 6,09 Lei | |
| 86 | NA583202 | 1 | SHROUD | 25,52 Lei | |
| 87 | 651744-00 | 1 | HOOK | 17,02 Lei | |
| 88 | 330045-13 | 2 | SCREW | 4,57 Lei | |
| 89 | 605040-24 | 1 | BEARING | 13,85 Lei | |
| 90 | 608115-00 | 1 | O RING | 4,57 Lei | |
| 91 | N413634 | 1 | WHEEL REAR | 58,17 Lei | |
| 98 | N458860 | 1 | FRONT WHEEL | 66,15 Lei | |
| 99 | N454810 | 1 | GEAR & SHAFT | 79,8 Lei | |
| 100 | N483898 | 1 | MOTOR & SWITCH SA | 641,76 Lei | |
| 101 | N458861 | 1 | CASTING SA | 228,8 Lei | |
| 102 | NA812282 | 1 | GEARCASE SA | 161,18 Lei | |
| 103 | N454812 | 1 | BEVEL GEAR ASSY | 107,73 Lei | |
| 104 | NA752958 | 1 | SPACER | 3,78 Lei | |
| 105 | NA738599 | 2 | LATCH | 8,51 Lei | |
| 106 | NA738501 | 2 | SCREW-ROUND HEAD SCREW M3X8 | 3,78 Lei | |
| 107 | NA738503 | 2 | WASHER | 3,78 Lei | |
| 108 | NA738499 | 1 | BUSHING | 6,09 Lei | |
| 109 | NA738498 | 1 | DOWEL | 3,78 Lei | |
| 110 | 593478-00 | 2 | SCREW OT M3X8 | 4,57 Lei | |
| 111 | NA738495 | 2 | WASHER | 3,78 Lei | |
| 112 | NA700583 | 1 | COVER LH-BLADE COVER LEFT | 21,11 Lei | |
| 113 | NA700741 | 1 | COVER RH-BLADE COVER RIGHT | 21,11 Lei | |
| 114 | NA708291 | 1 | LINKAGE SA | 16,49 Lei | |
| 115 | NA700279 | 2 | ROLL PIN | 6,09 Lei | |
| 116 | 330065-08 | 4 | SCREW M4X18 | 4,57 Lei | |
| 117 | NA810743 | 1 | COVER SA | 238,88 Lei | |
| 118 | NB085521 | 1 | PLATE | 3,78 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
