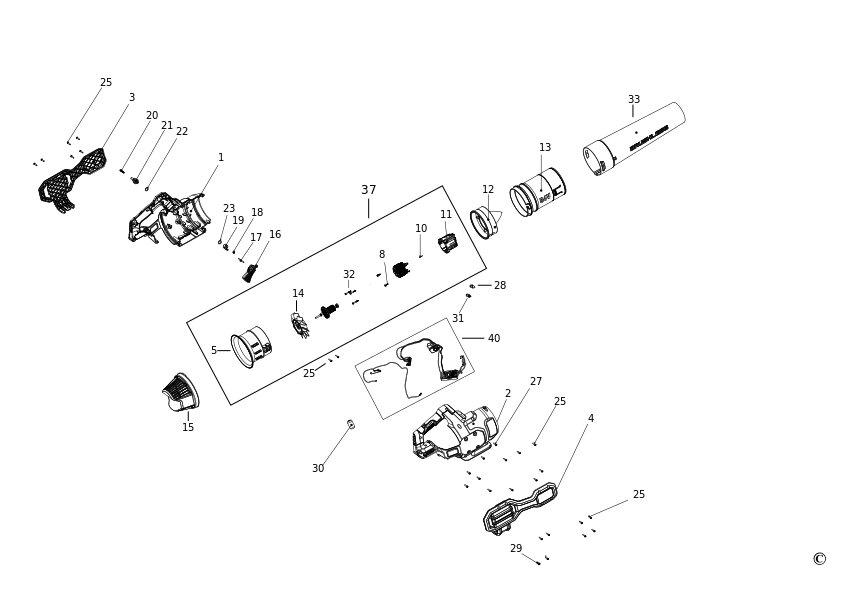

DEWALT SUFLANTĂ (Type 2)
SKU Produs: DCMBA572N /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N889060 | 1 | HOUSING SA | 186,17 Lei | |
| 2 | N889060 | 1 | HOUSING SA | 186,17 Lei | |
| 3 | N629802 | 1 | CAGE | 25,54 Lei | |
| 4 | N629803 | 1 | COVER | 21,85 Lei | |
| 5 | N613762 | 1 | BAFFLE | 41,93 Lei | |
| 8 | N427493 | 2 | SCREW | 4,57 Lei | |
| 10 | 631115-00 | 1 | RUBBER | 4,57 Lei | |
| 11 | N577427 | 1 | CUP | 13,85 Lei | |
| 12 | N608297 | 1 | HOUSING | 21,85 Lei | |
| 13 | N847499 | 1 | DUCT | 80,04 Lei | |
| 14 | N644525 | 1 | FAN | 25,54 Lei | |
| 15 | N682810 | 1 | CAP | 41,93 Lei | |
| 16 | 90605685 | 1 | TRIGGER | 7,37 Lei | |
| 17 | 90614091 | 1 | PIN | 4,57 Lei | |
| 18 | 90610773 | 1 | NUT M4 | 4,57 Lei | |
| 19 | 90605734 | 1 | CAM | 4,57 Lei | |
| 20 | N637776 | 1 | SCREW | 4,57 Lei | |
| 21 | N631238 | 1 | ACTUATOR | 5,21 Lei | |
| 22 | NA314339 | 1 | WASHER THRUST | 3,78 Lei | |
| 23 | 90605688 | 1 | SPRING | 4,57 Lei | |
| 25 | 90611830 | 25 | SCREW | 4,57 Lei | |
| 27 | 90626630 | 1 | SCREW | 4,57 Lei | |
| 29 | N563783 | 2 | SCREW | 4,57 Lei | |
| 30 | 90623337 | 1 | WASHER | 25,54 Lei | |
| 31 | 394429-02 | 1 | TIE | 3,78 Lei | |
| 32 | N648496 | 3 | SCREW | 4,57 Lei | |
| 33 | N778917 | 1 | TUBE | 96,56 Lei | |
| 37 | N601023 | 1 | MOTOR SA | 276,84 Lei | |
| 40 | NA147853 | 1 | CONTROL MODULE SA | 570,96 Lei |
