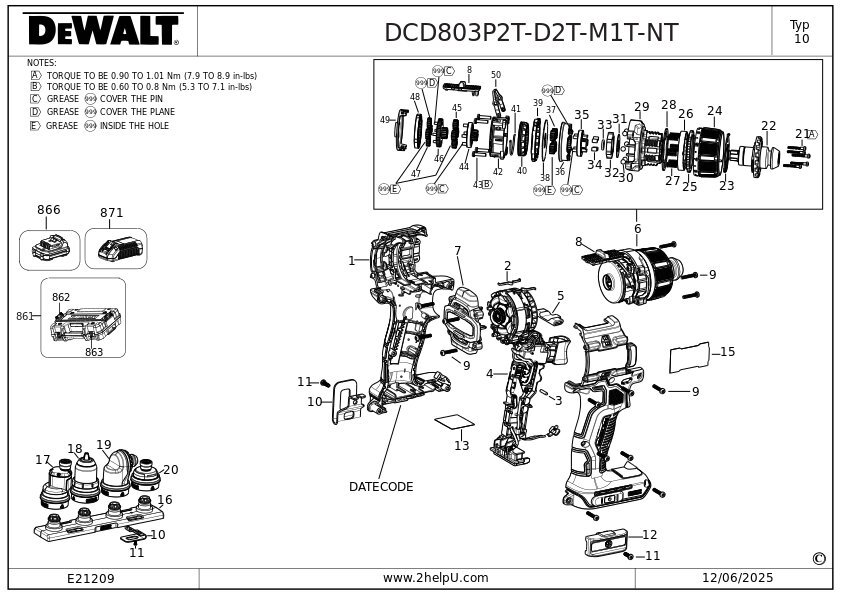

DEWALT MASINA DE GAURIT CU ACUMULATOR (Type 10)
SKU Produs: DCD803NT /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA730361 | 1 | CLAMSHELL SET | 66,15 Lei | |
| 2 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 3 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 4 | NA600668 | 1 | MOTOR SA | 589,89 Lei | |
| 5 | N399342 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 6 | NA771363 | 1 | TRANSMISSION SA | 238,88 Lei | |
| 7 | NA004706 | 1 | CAP | 12,5 Lei | |
| 8 | NA568354 | 1 | SELECTOR | 16,49 Lei | |
| 9 | 682211-00 | 15 | SCREW, PLASTITE | 4,57 Lei | |
| 10 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 11 | N042665 | 3 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 12 | N095778 | 1 | MAGNET HOLDER | 25,54 Lei | |
| 13 | NA738674 | 1 | BOTTOM FOOT LABEL DCD803 18V | 10,5 Lei | |
| 15 | NA570554 | 1 | RATING PLATE-EURO | 8,51 Lei | |
| 16 | NA771388 | 1 | HOLDER SA | 107,73 Lei | |
| 17 | NA771399 | 1 | HEAD SA-OFFSET HEAD | 238,88 Lei | |
| 18 | NA771400 | 1 | HEAD SA-CHUCK HEAD | 218,19 Lei | |
| 19 | NA771398 | 1 | HEAD SA-RIGHT ANGLE HEAD | 253,89 Lei | |
| 20 | NA771389 | 1 | HEAD SA-QUICK RELEASE HEAD | 139,97 Lei | |
| 21 | NA577545 | 5 | SCREW-M2.6 X 18 PLASTITE TORK 8 | 3,78 Lei | |
| 22 | NB088938 | 1 | SPINDLE SA | 150,05 Lei | |
| 23 | NA575646 | 1 | DETENT | 10,5 Lei | |
| 24 | NA564352 | 1 | COLLAR | 10,5 Lei | |
| 25 | NA564351 | 1 | NUT-CLUTCH | 10,5 Lei | |
| 26 | NA531099 | 1 | HOLDER-CLUTCH SPRING | 3,78 Lei | |
| 27 | NA028712 | 12 | SPRING | 4,57 Lei | |
| 28 | NA531194 | 1 | WASHER-CLUTCH | 7,14 Lei | |
| 29 | NA526659 | 1 | HOUSING-CLUTCH | 6,09 Lei | |
| 30 | 386690-00 | 6 | BALL, STEEL | 4,57 Lei | |
| 31 | N527659 | 1 | WASHER LOCK | 4,57 Lei | |
| 32 | N543525 | 1 | LOCKING RING | 17,02 Lei | |
| 33 | N548029 | 1 | O RING | 4,57 Lei | |
| 34 | N549024 | 4 | PIN | 4,57 Lei | |
| 35 | N678082 | 1 | CARRIER SA | 30,87 Lei | |
| 36 | N551385 | 1 | Gear | 13,85 Lei | |
| 37 | N543018 | 4 | Gear | 4,57 Lei | |
| 38 | N548368 | 1 | WASHER | 4,57 Lei | |
| 39 | N543943 | 1 | Gear | 12,71 Lei | |
| 40 | N541279 | 1 | Gear | 13,85 Lei | |
| 41 | N542091 | 1 | WIRE STEEL | 4,57 Lei | |
| 42 | N544134 | 1 | HOUSING | 7,37 Lei | |
| 43 | N075506 | 4 | SCREW | 4,57 Lei | |
| 44 | N678083 | 1 | CARRIER SA | 52,22 Lei | |
| 45 | N541277 | 4 | Gear | 4,57 Lei | |
| 46 | N678084 | 1 | CARRIER SA | 41,93 Lei | |
| 47 | N541274 | 4 | Gear | 4,57 Lei | |
| 48 | N541276 | 1 | Gear | 7,37 Lei | |
| 49 | NA160740 | 1 | BACKPLATE | 7,37 Lei | |
| 50 | NA145823 | 1 | LINK | 6,23 Lei | |
| 861 | NA621420 | 1 | KITBOX-DEFENDER | 139,97 Lei | |
| 862 | N409476 | 2 | LATCH-METAL | 11,45 Lei | |
| 863 | N409477 | 2 | LATCH | 8,64 Lei | |
| 999 | N017298 | 1 | GREASE | 213,19 Lei |
