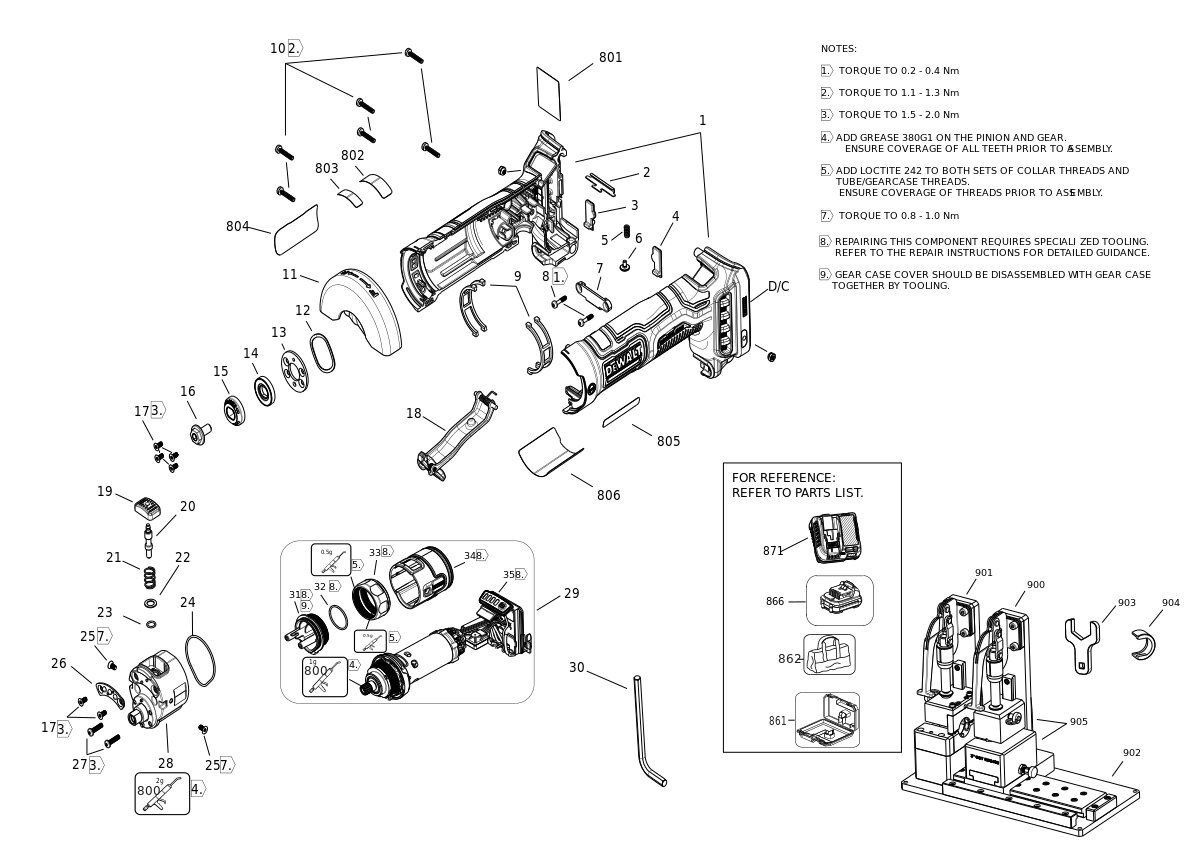

DEWALT MAȘINA DE TĂIAT (Type 1)
SKU Produs: DCG430N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA602585 | 1 | HANDLE SA | 34,65 Lei | |
| 2 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 3 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 4 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 5 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 6 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 7 | N787996 | 1 | INSERT | 4,57 Lei | |
| 8 | N831593 | 2 | SCREW | 4,57 Lei | |
| 9 | NA590653 | 2 | SEAL-SEAL MOTOR CAN | 3,78 Lei | |
| 10 | 330019-00 | 6 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 11 | NA703752 | 1 | GUARD-GUARD FOR 3 CUTOFF | 47,78 Lei | |
| 12 | NA689049 | 1 | SPRING-WAVE SPRING ID 25MM | 3,78 Lei | |
| 13 | NA712198 | 1 | GUARD PLATE-PLATE GUARD RETAINER | 6,09 Lei | |
| 14 | NA609121 | 1 | INNER FLANGE | 3,78 Lei | |
| 15 | NA533849 | 1 | OUTER FLANGE | 4,31 Lei | |
| 16 | NA571712 | 1 | BOLT | 3,78 Lei | |
| 17 | NA658466 | 4 | SCREW-M3X0.5X10 FLAT HEAD | 3,78 Lei | |
| 18 | NB145290 | 1 | PADDLE | 43,16 Lei | |
| 19 | NA630191 | 1 | LOCK BUTTON | 3,78 Lei | |
| 20 | N767774 | 1 | LOCKING PIN | 13,85 Lei | |
| 21 | N895855 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 22 | N895853 | 1 | WASHER SPACER | 4,57 Lei | |
| 23 | N895854 | 1 | O RING | 4,57 Lei | |
| 24 | NA618714 | 1 | O RING | 3,78 Lei | |
| 25 | NA356205 | 2 | SCREW | 3,78 Lei | |
| 26 | N907155 | 1 | STOP | 4,57 Lei | |
| 27 | 330045-74 | 1 | SCREW | 4,57 Lei | |
| 28 | NB416566 | 1 | GEARCASE SA | 107,73 Lei | |
| 29 | NB416364 | 1 | MOTOR SWITCHBOX SA-SA MOTOR-MODULE-GCC | 1,14 Lei | |
| 30 | NA071697 | 1 | WRENCH | 5,15 Lei | |
| 32 | NA497886 | 1 | O RING | 3,78 Lei | |
| 33 | NA407522 | 1 | CLAMP NUT | 21,11 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 801 | NA694243 | 1 | LABEL | 3,78 Lei | |
| 802 | NA678173 | 1 | LABEL-LABEL BRUSHLESS | 3,78 Lei | |
| 803 | NA678176 | 1 | LABEL | 3,78 Lei | |
| 804 | NA663421 | 1 | RATING LABEL | 3,78 Lei | |
| 805 | NA669213 | 1 | LABEL | 3,78 Lei | |
| 806 | NA851833 | 1 | WARNING LABEL | 3,78 Lei | |
| 900 | NB186333 | 1 | CLAMP SA-TOOLING | 3,39 Lei | |
| 901 | NB186345 | 1 | MOUNT SA-TOOLING | 4,93 Lei | |
| 902 | NB186339 | 1 | BASE SA-TOOLING | 3,7 Lei | |
| 903 | NA382867 | 1 | WRENCH-TOOLING | 2,75 Lei | |
| 904 | NA917348 | 1 | COLLAR-TOOLING | 2,75 Lei | |
| 905 | NB414562 | 1 | S.T.INSERTION TOOL-TOOLING | 2,08 Lei |
