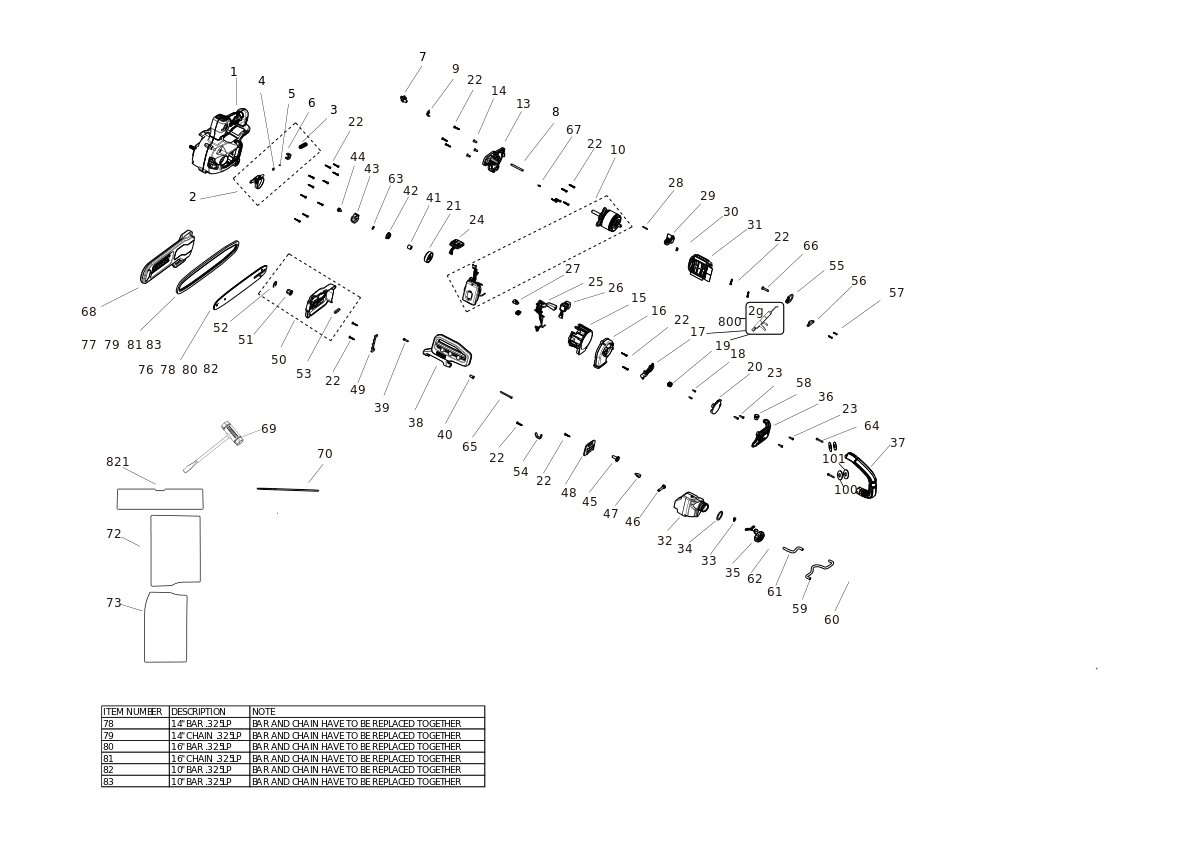

DEWALT MOTOFIERASTRAU (Type 1)
SKU Produs: DCMCST632N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA694336 | 1 | HOUSING SA | 186,17 Lei | |
| 2 | NA597016 | 1 | BRAKE SA | 66,15 Lei | |
| 3 | NA047674 | 1 | SPRING | 4,31 Lei | |
| 5 | 90594864 | 1 | PIN | 4,57 Lei | |
| 6 | NA237802 | 1 | BRAKE | 4,31 Lei | |
| 7 | NA490214 | 1 | CAM | 34,65 Lei | |
| 8 | 90608944 | 1 | PIN | 4,57 Lei | |
| 9 | NA292778 | 1 | SPRING | 3,78 Lei | |
| 10 | NB038345 | 1 | MOTOR SA-MOTOR & MODULE | 810,6 Lei | |
| 13 | NA553056 | 1 | PLATE | 31,19 Lei | |
| 14 | NA940623 | 3 | SCREW-M5*0.8 | 31,19 Lei | |
| 15 | NA341882 | 1 | SHROUD | 31,19 Lei | |
| 16 | NA638885 | 1 | BAFFLE | 31,19 Lei | |
| 17 | NA595567 | 1 | ADAPTOR SA | 43,16 Lei | |
| 18 | 330019-41 | 2 | VITE PLASTIC | 4,57 Lei | |
| 19 | NA670459 | 1 | Gear | 31,19 Lei | |
| 20 | NA607646 | 1 | SHROUD | 31,19 Lei | |
| 21 | NA578449 | 1 | DRUM-10MM | 31,19 Lei | |
| 22 | 330019-04 | 26 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 23 | 330019-02 | 4 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 24 | NB104833 | 1 | MODULE | 150,05 Lei | |
| 25 | NA588855 | 1 | WIRE HARNESS | 31,19 Lei | |
| 26 | NA557505 | 1 | TRIGGER | 31,19 Lei | |
| 27 | 650974-00 | 2 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 28 | N516878 | 1 | PIN | 4,57 Lei | |
| 29 | NA292176 | 1 | TRIGGER | 16,49 Lei | |
| 30 | N433343 | 1 | SPRING | 4,57 Lei | |
| 31 | NA342036 | 1 | INSERT | 31,19 Lei | |
| 32 | NA512253 | 1 | TANK | 31,19 Lei | |
| 33 | 90618295 | 1 | VALVE | 4,57 Lei | |
| 34 | N564358 | 1 | GASKET | 4,57 Lei | |
| 35 | N615366 | 1 | CAP SA | 19,95 Lei | |
| 36 | NA694234 | 1 | PLATE | 21,11 Lei | |
| 37 | NA512252 | 1 | HANDLE | 31,19 Lei | |
| 38 | NB118770 | 1 | GUARD | 73,19 Lei | |
| 39 | 90500654 | 1 | SCREW | 4,57 Lei | |
| 40 | NA643059 | 1 | ADAPTOR | 31,19 Lei | |
| 41 | NA591113 | 1 | SPACER | 31,19 Lei | |
| 42 | NA593205 | 1 | SEAL | 31,19 Lei | |
| 43 | NA265339 | 1 | SPROCKET | 16,49 Lei | |
| 44 | NA791848 | 1 | BOLT | 3,78 Lei | |
| 45 | NA389861 | 1 | KNOB | 21,11 Lei | |
| 46 | NA556679 | 1 | SHAFT | 31,19 Lei | |
| 47 | NA591304 | 1 | BARREL | 31,19 Lei | |
| 48 | NA520735 | 1 | MOUNT | 31,19 Lei | |
| 49 | NA232411 | 1 | PLATE | 6,09 Lei | |
| 50 | NB038357 | 1 | COVER SA | 79,8 Lei | |
| 51 | NA217422 | 1 | NUT | 10,5 Lei | |
| 52 | NA128407 | 1 | RING | 3,78 Lei | |
| 53 | 90622086 | 1 | SEAL | 4,57 Lei | |
| 54 | NA123777 | 1 | BRACKET | 3,78 Lei | |
| 56 | N787996 | 1 | INSERT | 4,57 Lei | |
| 57 | N831593 | 2 | SCREW | 4,57 Lei | |
| 58 | NA596800 | 1 | GROMMET | 31,19 Lei | |
| 59 | NA291827 | 1 | TUBE | 6,09 Lei | |
| 60 | NA291976 | 1 | SPRING | 3,78 Lei | |
| 61 | N511675 | 1 | TUBE OIL | 31,19 Lei | |
| 62 | N511677 | 1 | SPRING | 31,19 Lei | |
| 63 | N110454 | 1 | O RING | 3,78 Lei | |
| 64 | 330019-05 | 2 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 65 | 330019-08 | 1 | SCREW, PLASTIC THREAD FORM M3.5 * 45 T1 | 4,57 Lei | |
| 66 | NA730652 | 1 | SCREW | 3,78 Lei | |
| 67 | 90566914 | 1 | SCREW | 4,57 Lei | |
| 68 | NA318117 | 1 | SHEATH | 31,19 Lei | |
| 69 | NA209088 | 1 | WRENCH | 21,11 Lei | |
| 70 | NA016177 | 1 | FILE-OREGON CHAIN FILE 5/32 X 8 INCH FOR | 31,19 Lei | |
| 72 | NA625441 | 1 | WARNING LABEL | 3,78 Lei | |
| 73 | NA625440 | 1 | WARNING LABEL | 4,31 Lei | |
| 76 | NA373392 | 1 | BAR | 107,73 Lei | |
| 77 | NA291648 | 1 | CHAIN | 107,73 Lei | |
| 78 | NA373390 | 1 | BAR | 107,73 Lei | |
| 79 | NA291649 | 1 | CHAIN | 119,91 Lei | |
| 80 | NA373387 | 1 | BAR | 139,97 Lei | |
| 81 | NA291650 | 1 | CHAIN | 130,52 Lei | |
| 82 | NA373388 | 1 | BAR-10" | 47,78 Lei | |
| 83 | NA291647 | 1 | CHAIN-10" | 43,16 Lei | |
| 100 | 569639-00 | 2 | WASHER | 4,57 Lei | |
| 101 | 330016-01 | 1 | WASHER | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 821 | NA625443 | 1 | RATING LABEL | 3,78 Lei |
