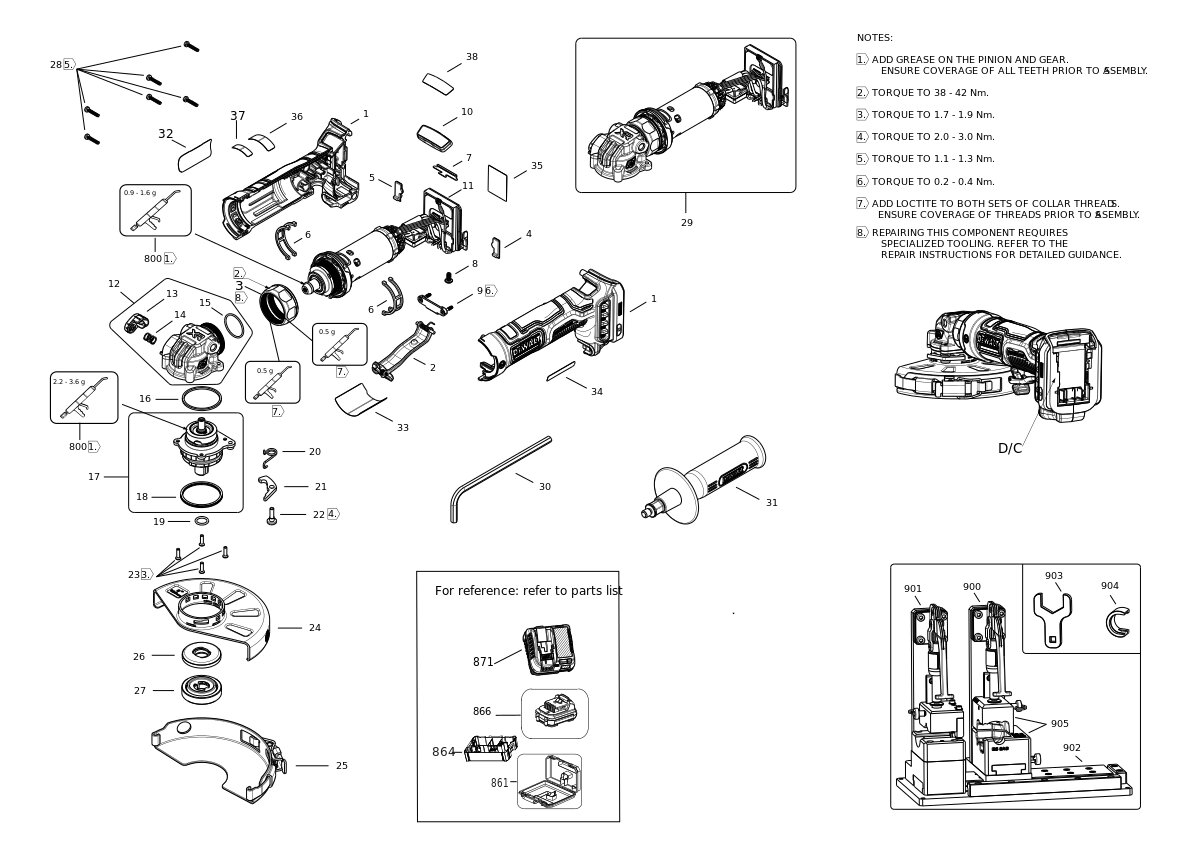

DEWALT POLIZOR UNGHIULAR (Type 1)
SKU Produs: DCG404N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA602585 | 1 | HANDLE SA | 34,65 Lei | |
| 2 | NB145290 | 1 | PADDLE | 43,16 Lei | |
| 3 | NA407522 | 1 | CLAMP NUT | 21,11 Lei | |
| 4 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 5 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 6 | NA590653 | 2 | SEAL-SEAL MOTOR CAN | 3,78 Lei | |
| 7 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 8 | NA105798 | 1 | TERMINAL BLOCK | 15,12 Lei | |
| 9 | N791558 | 1 | COVER | 3,78 Lei | |
| 10 | NA505446 | 1 | INSERT-INSERT AUX LABEL | 3,78 Lei | |
| 13 | NA427629 | 1 | BUTTON | 3,78 Lei | |
| 14 | NB054708 | 1 | SPRING | 3,78 Lei | |
| 15 | NA497886 | 1 | O RING | 3,78 Lei | |
| 16 | NA427574 | 1 | O RING | 3,78 Lei | |
| 17 | NB145545 | 1 | GEARCASE SA | 130,52 Lei | |
| 18 | N135116 | 1 | WASHER SPRING | 6,23 Lei | |
| 19 | N420261 | 1 | O RING | 4,57 Lei | |
| 20 | N105579 | 1 | SPRING | 4,57 Lei | |
| 21 | NA540830 | 1 | LEVER | 11,45 Lei | |
| 22 | N137733 | 1 | SCREW | 4,57 Lei | |
| 23 | NA276489 | 4 | SCREW-SCREW M3 X 12 FLAT HEAD T10 | 3,78 Lei | |
| 24 | NA680155 | 1 | GUARD | 25,52 Lei | |
| 25 | NA267971 | 1 | GUARD | 66,15 Lei | |
| 26 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 27 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 28 | 330019-00 | 6 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 29 | NB148541 | 1 | MOTOR SWITCH SA | 1,04 Lei | |
| 30 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 31 | NB219177 | 1 | HANDLE SIDE SA | 58,17 Lei | |
| 32 | NA619319 | 1 | RATING LABEL | 3,78 Lei | |
| 33 | NA619320 | 1 | WARNING LABEL | 3,78 Lei | |
| 34 | NA669213 | 1 | LABEL | 3,78 Lei | |
| 35 | NA694742 | 1 | LABEL-FOOT LABEL | 3,78 Lei | |
| 36 | NA678173 | 1 | LABEL-LABEL BRUSHLESS | 3,78 Lei | |
| 37 | NA678176 | 1 | LABEL | 3,78 Lei | |
| 38 | NA678178 | 1 | LABEL-LABEL TWO HANDS AUX BLANK | 3,78 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 900 | NB186333 | 1 | CLAMP SA-TOOLING | 3,39 Lei | |
| 901 | NB186345 | 1 | MOUNT SA-TOOLING | 4,93 Lei | |
| 902 | NB186339 | 1 | BASE SA-TOOLING | 3,7 Lei | |
| 903 | NA382867 | 1 | WRENCH-TOOLING | 2,75 Lei | |
| 904 | NA917348 | 1 | COLLAR-TOOLING | 2,75 Lei | |
| 905 | NB414850 | 1 | S.T.INSERTION TOOL | 2,08 Lei |
