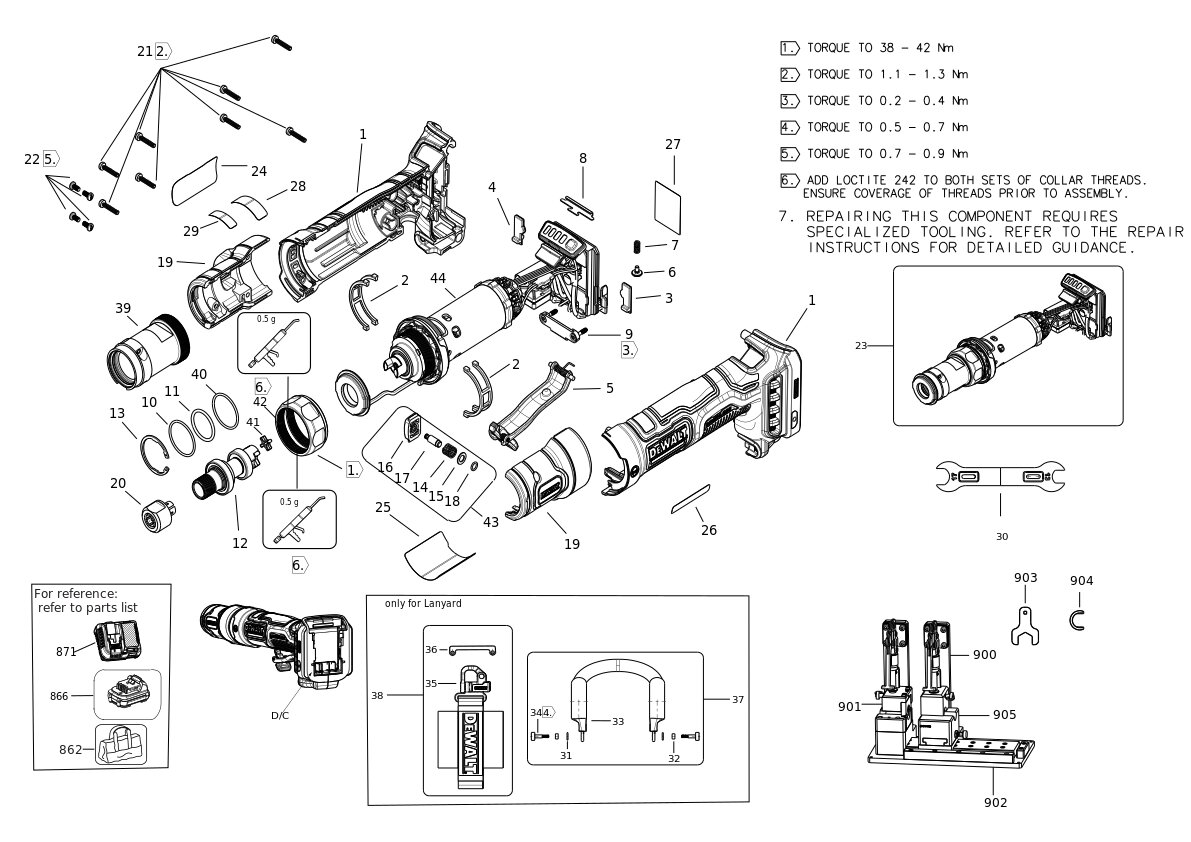

DEWALT POLIZOR DREPT (Type 1)
SKU Produs: DCG420N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA602585 | 1 | HANDLE SA | 34,65 Lei | |
| 2 | NA590653 | 2 | SEAL-SEAL MOTOR CAN | 3,78 Lei | |
| 3 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 4 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 5 | NB145290 | 1 | PADDLE | 43,16 Lei | |
| 6 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 7 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 8 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 9 | N791558 | 1 | COVER | 3,78 Lei | |
| 10 | NA758252 | 1 | O RING | 3,78 Lei | |
| 11 | NA643551 | 1 | RING-RING, RUBBER | 3,78 Lei | |
| 12 | NB076223 | 1 | SPINDLE SA | 73,19 Lei | |
| 13 | NA606361 | 1 | CIRCLIP | 3,78 Lei | |
| 14 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 15 | N094651 | 1 | WASHER | 3,78 Lei | |
| 16 | NA568934 | 1 | BUTTON | 3,78 Lei | |
| 17 | NA571795 | 1 | LOCK PIN | 4,31 Lei | |
| 18 | N094012 | 1 | O RING | 4,57 Lei | |
| 19 | NA565045 | 1 | SHROUD SA | 14,07 Lei | |
| 20 | N785197 | 1 | COLLET ASSEMBLY | 79,8 Lei | |
| 21 | 330019-00 | 8 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 22 | 330045-43 | 4 | SCREW TAPTITE | 4,57 Lei | |
| 23 | NB156789 | 1 | MOTOR & SWITCH SA | 1,14 Lei | |
| 24 | NA620628 | 1 | RATING LABEL | 3,78 Lei | |
| 25 | NB037723 | 1 | WARNING LABEL | 3,78 Lei | |
| 26 | NA669213 | 1 | LABEL | 3,78 Lei | |
| 27 | NA694749 | 1 | LABEL | 3,78 Lei | |
| 28 | NA678173 | 1 | LABEL-LABEL BRUSHLESS | 3,78 Lei | |
| 29 | NA678176 | 1 | LABEL | 3,78 Lei | |
| 30 | N332459 | 1 | WRENCH | 17,02 Lei | |
| 39 | NA565026 | 1 | NOSE SA | 99,86 Lei | |
| 40 | NA497886 | 1 | O RING | 3,78 Lei | |
| 41 | NA531013 | 1 | DRIVER | 3,78 Lei | |
| 42 | NA407522 | 1 | CLAMP NUT | 21,11 Lei | |
| 43 | NB429095 | 1 | SPINDLE LOCK | 31,19 Lei | |
| 900 | NB186333 | 1 | CLAMP SA-TOOLING | 3,39 Lei | |
| 901 | NB186345 | 1 | MOUNT SA-TOOLING | 4,93 Lei | |
| 902 | NB186339 | 1 | BASE SA-TOOLING | 3,7 Lei | |
| 903 | NA382867 | 1 | WRENCH-TOOLING | 2,75 Lei | |
| 904 | NA917348 | 1 | COLLAR-TOOLING | 2,75 Lei | |
| 905 | NB414553 | 1 | S.T.INSERTION TOOL-TOOLING | 3,58 Lei |
