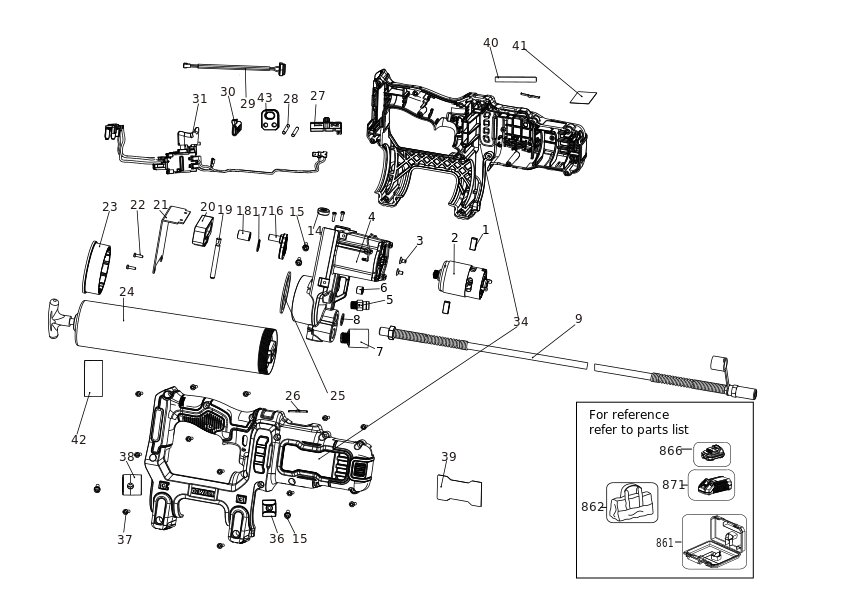

DEWALT PISTOL DE GRESARE CU ACUMULATOR (Type 1)
SKU Produs: DCGG581N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA098078 | 2 | CLAMP | 3,78 Lei | |
| 2 | NA320398 | 1 | MOTOR & PINION | 107,73 Lei | |
| 3 | N123754 | 2 | SCREW | 4,57 Lei | |
| 4 | NA320386 | 1 | PUMP SA | 373,38 Lei | |
| 5 | N253360 | 1 | VALVE | 21,11 Lei | |
| 6 | N151493 | 1 | PLUG | 7,37 Lei | |
| 7 | N365761 | 1 | VALVE KIT | 80,04 Lei | |
| 8 | N248486 | 1 | WASHER | 4,31 Lei | |
| 9 | NA152163 | 1 | HOSE SA | 198,66 Lei | |
| 14 | NA066261 | 1 | SEAL | 5,15 Lei | |
| 15 | NA099083 | 6 | SCREW | 3,78 Lei | |
| 16 | NA025410 | 1 | CRANK | 18,06 Lei | |
| 17 | N281879 | 1 | RING | 3,78 Lei | |
| 18 | NA025417 | 1 | ROLLER | 4,31 Lei | |
| 19 | NA025071 | 1 | PISTON | 7,14 Lei | |
| 20 | NA025379 | 1 | YOKE | 28,14 Lei | |
| 21 | NA007054 | 1 | COVERPLATE | 10,5 Lei | |
| 22 | NA123162 | 4 | SCREW | 3,78 Lei | |
| 23 | NA073811 | 1 | TUBE | 8,51 Lei | |
| 24 | N405735 | 1 | TUBE | 107,73 Lei | |
| 25 | NA047008 | 1 | GASKET | 4,31 Lei | |
| 26 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 27 | NA026833 | 1 | SWITCH | 11,45 Lei | |
| 28 | 330041-18 | 2 | ROLL PIN | 3,78 Lei | |
| 29 | NA109714 | 1 | LED | 21,11 Lei | |
| 30 | NA225309 | 1 | ACTUATOR-ACTUATOR LOCK OFF | 7,14 Lei | |
| 31 | NA173113 | 1 | SWITCH SA | 150,05 Lei | |
| 34 | NA230755 | 1 | HOUSING SA | 99,86 Lei | |
| 36 | NA083124 | 1 | HOLDER | 5,15 Lei | |
| 37 | 330019-03 | 12 | Screw M3.5X16 T15 | 4,57 Lei | |
| 38 | NA132196 | 1 | HOLDER | 6,09 Lei | |
| 39 | NB109128 | 1 | RATING LABEL | 3,78 Lei | |
| 40 | NA304873 | 1 | IDENTITY LABEL | 3,78 Lei | |
| 41 | NA304874 | 1 | LABEL-SPEED LABEL | 3,78 Lei | |
| 42 | NA315049 | 1 | WARNING LABEL | 3,78 Lei | |
| 43 | NA262075 | 1 | HOOK-RING HOOK | 18,06 Lei | |
| 862 | N594987 | 1 | TOOL BAG | 130,52 Lei |
