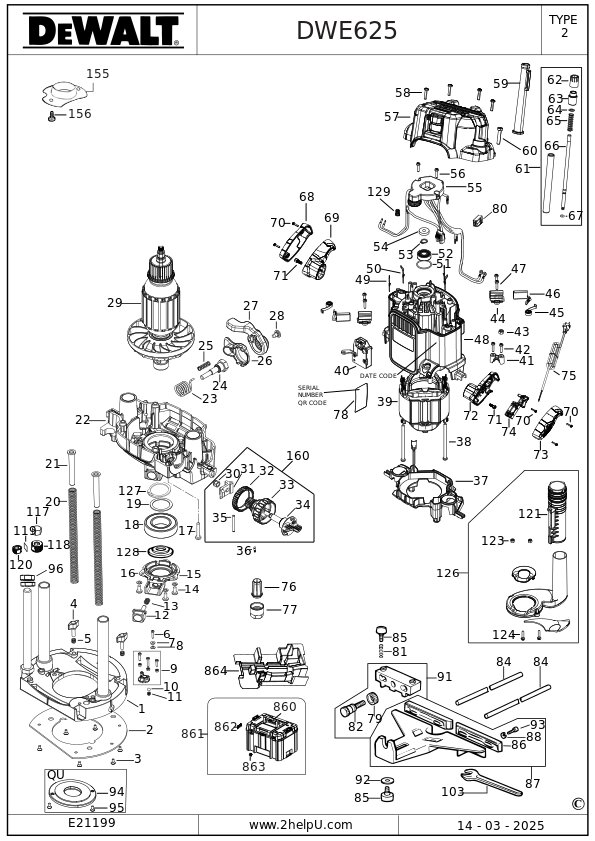

DEWALT FREZA VERTICALA (Type 2)
SKU Produs: DWE625 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA089130 | 1 | BASE SA | 373,38 Lei | |
| 2 | 328645-00 | 1 | PLATE,SLIDE | 57,81 Lei | |
| 3 | 249412-11 | 6 | SCREW M4X8 | 4,57 Lei | |
| 4 | 326573-01 | 2 | SCREW, WING M6*17 BLACK | 5,21 Lei | |
| 5 | 868082-00 | 2 | SPRING | 4,57 Lei | |
| 6 | 330045-07 | 1 | SCREW | 4,57 Lei | |
| 7 | 329836-00 | 1 | SLEEVE, | 5,21 Lei | |
| 8 | 385946-00 | 1 | WASHER SPRING MBR100 TYPE 2 | 4,57 Lei | |
| 9 | NA126965 | 1 | SA HEIGHT STOP REVOLVING - SERVICE | 66,15 Lei | |
| 10 | 720664-00 | 1 | BALL 8 MM | 4,57 Lei | |
| 11 | 868082-00 | 1 | SPRING | 4,57 Lei | |
| 12 | 942930-00 | 1 | SA BUTTON | 12,71 Lei | |
| 13 | 942904-00 | 1 | SPRING | 4,57 Lei | |
| 14 | N745981 | 3 | SCREW | 4,57 Lei | |
| 15 | 932839-00 | 3 | WASHER D.4,3 | 4,57 Lei | |
| 16 | 942900-03 | 1 | COVER | 52,22 Lei | |
| 17 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 18 | 868132-03 | 1 | BEARING 60052RZTN9/C3VT162 | 88,55 Lei | |
| 19 | 868127-02 | 1 | SPACER RING, D31.6 S 1,3 | 5,21 Lei | |
| 20 | NA098733 | 2 | SPRING | 4,31 Lei | |
| 21 | 868566-01 | 2 | RIVET | 4,57 Lei | |
| 22 | NA1014672 | 1 | CARRIER SA | 471,87 Lei | |
| 23 | NA041400 | 1 | SPRING | 21,85 Lei | |
| 24 | NA041399 | 1 | BOLT | 30,87 Lei | |
| 25 | N844363 | 1 | SPRING | 6,23 Lei | |
| 26 | N786603 | 1 | LEVER LOCK | 5,21 Lei | |
| 27 | NA041372 | 1 | LEVER LOCK | 7,37 Lei | |
| 28 | NA099546 | 1 | SCREW | 6,09 Lei | |
| 29 | NA089132 | 1 | ARMATURE SA | 613,14 Lei | |
| 30 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 31 | NA414019 | 1 | CLAMP | 28,14 Lei | |
| 32 | NA418170 | 1 | SCALE-METRIC | 14,07 Lei | |
| 33 | NA418176 | 1 | ADJUSTER | 21,11 Lei | |
| 34 | NA418182 | 1 | CLAMPWHEEL | 34,65 Lei | |
| 35 | NA426027 | 1 | PIN | 3,78 Lei | |
| 36 | N043924 | 1 | DETENT | 4,57 Lei | |
| 37 | NA089138 | 1 | BAFFLE SA | 88,41 Lei | |
| 38 | 330019-33 | 2 | SCREW | 4,57 Lei | |
| 39 | NA089134 | 1 | FIELD SA | 240,38 Lei | |
| 40 | N920121 | 1 | GACC MODULE | 289,04 Lei | |
| 41 | N763638 | 1 | CORD CLAMP | 4,57 Lei | |
| 42 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 43 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 44 | N794824 | 2 | BRUSHBOX SA | 17,02 Lei | |
| 45 | NA025131 | 2 | BRUSH SPRING | 6,23 Lei | |
| 46 | NA089136 | 1 | BRUSH PAIR | 106,98 Lei | |
| 47 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 48 | NA418156 | 1 | FIELDCASE | 161,18 Lei | |
| 49 | 477075-00 | 2 | CONNECTOR | 4,57 Lei | |
| 50 | N767883 | 2 | CONNECTOR | 3,78 Lei | |
| 51 | N411414 | 1 | O RING | 4,57 Lei | |
| 52 | 577745-00 | 1 | BEARING 6000 T1XDDW | 25,54 Lei | |
| 53 | N863546 | 1 | CIRCLIP | 4,57 Lei | |
| 54 | 868141-00 | 1 | POLE PIECE | 25,54 Lei | |
| 55 | NA126960 | 1 | MODULE | 119,91 Lei | |
| 56 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 57 | N890155 | 1 | END CAP | 52,22 Lei | |
| 58 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 59 | 942277-00 | 1 | SLEEVE D.12 | 17,02 Lei | |
| 60 | 949701-12 | 1 | RD.HD.SCREW M.5X25 | 4,57 Lei | |
| 61 | NA126964 | 1 | ADJUSTER DEPTH | 166,11 Lei | |
| 62 | 326264-00 | 1 | KNOB | 4,57 Lei | |
| 63 | 326265-00 | 1 | WHEEL SCALE | 7,37 Lei | |
| 64 | 321118 | 1 | WASHER 6 .1 STEEL | 4,57 Lei | |
| 65 | 323395-14 | 1 | SPRING 9-33.49 - 33 . 4 | 4,57 Lei | |
| 66 | NA081911 | 1 | ROD SA | 30,87 Lei | |
| 67 | 750831 | 1 | O RING (SPINDLE LOCK) | 4,57 Lei | |
| 68 | N890813 | 1 | HANDLE COVER | 21,11 Lei | |
| 69 | N890812 | 1 | HANDLE LH | 28,14 Lei | |
| 70 | 330019-03 | 5 | Screw M3.5X16 T15 | 4,57 Lei | |
| 71 | N895116 | 2 | SCREW | 5,15 Lei | |
| 72 | N771122 | 1 | HANDLE RH | 28,14 Lei | |
| 73 | N771134 | 1 | HANDLE COVER | 21,11 Lei | |
| 74 | N873760 | 1 | SWITCH | 96,56 Lei | |
| 75 | N880149 | 1 | CORDSET | 130,52 Lei | |
| 76 | 868116-00 | 1 | E40106 COLLET MM.12 | 130,35 Lei | |
| 77 | 942893-01 | 1 | NUT | 30,87 Lei | |
| 78 | NA636664 | 1 | RATING PLATE-QS | 12,5 Lei | |
| 79 | 942918-00 | 1 | INDEX, ADJ | 30,87 Lei | |
| 80 | N590957 | 2 | CONNECTOR | 10,29 Lei | |
| 81 | 868082-00 | 5 | SPRING | 4,57 Lei | |
| 82 | 942917-00 | 1 | SCREW | 80,04 Lei | |
| 84 | 326966-00 | 2 | ROD, GUIDE | 25,54 Lei | |
| 85 | 326573-01 | 5 | SCREW, WING M6*17 BLACK | 5,21 Lei | |
| 86 | 942915-00 | 2 | FENCE | 41,93 Lei | |
| 87 | 948581-01 | 1 | SIDE FENCE, MOF 177 | 130,35 Lei | |
| 88 | 860073-01 | 4 | WASHER,FLAT 5.3X10 UNI 6592 | 4,57 Lei | |
| 89 | 330065-09 | 2 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 91 | 948582-01 | 1 | SA SIDE GUIDE REGULATION | 130,35 Lei | |
| 92 | 249221-00 | 1 | WASHER | 4,57 Lei | |
| 93 | 943023-00 | 5 | SCREW | 4,57 Lei | |
| 96 | 860083-17 | 2 | NUT,HEX THIN M.12 UNI5589 | 4,57 Lei | |
| 103 | 868111-00 | 1 | KEY SE 22 DIN 894 | 19,95 Lei | |
| 117 | 868150-00 | 1 | NUT -M 12 HRECES DIN 91 | 10,29 Lei | |
| 118 | 942910-00 | 1 | ADJUSTER | 25,54 Lei | |
| 119 | 942912-00 | 1 | SPRING, LEAF | 4,57 Lei | |
| 120 | 942911-00 | 1 | BUTTON | 21,85 Lei | |
| 121 | N780084 | 1 | DUST PORT | 30,87 Lei | |
| 123 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 124 | 869076-00 | 2 | SCREW | 4,57 Lei | |
| 126 | N887234 | 2 | DUST PORT | 99,86 Lei | |
| 127 | 941541-00 | 1 | RETAINING RING D.25 | 4,57 Lei | |
| 128 | N436230 | 1 | LOCK NUT | 30,87 Lei | |
| 129 | 869246-00 | 1 | SPRING DW743N | 4,57 Lei | |
| 150 | 650855-00 | 1 | FELT | 4,57 Lei | |
| 155 | 249098-00 | 1 | SLEEVE,GUIDE 30 | 52,22 Lei | |
| 156 | 249412-20 | 2 | SCREW M5X10 | 4,57 Lei | |
| 160 | NA1014707 | 1 | ADJUSTER SA-METRIC TYPE 2 | 139,97 Lei | |
| 836 | 1003989-99 | 1 | S.T.RELEASE TOOL | 218,72 Lei | |
| 860 | H1400198008 | 1 | HANDLE | 17,02 Lei | |
| 861 | N445186 | 1 | KITBOX | 307,21 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | NA076398 | 1 | PLASTIC INSERT | 181,55 Lei |
