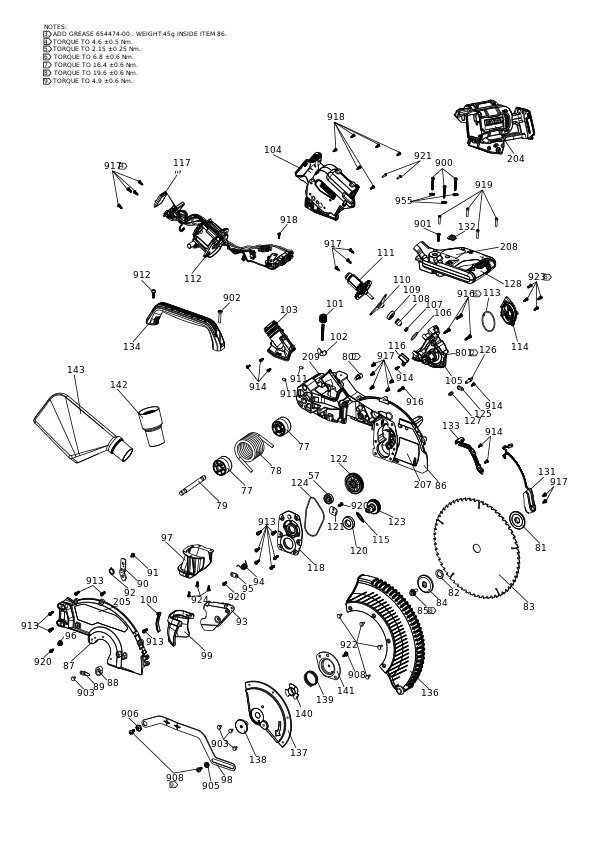

DEWALT FIERASTRAU VERTICAL CU MASA (Type 20)
SKU Produs: DCS782N /Type: 20
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA371898 | 1 | BASE SA | 1,48 Lei | |
| 2 | N821420 | 1 | PLATE | 213,19 Lei | |
| 3 | NA170532 | 2 | SCREW | 6,23 Lei | |
| 4 | 330045-55 | 2 | SCREW | 4,57 Lei | |
| 5 | 868777-00 | 5 | FOOT | 4,57 Lei | |
| 6 | 330045-26 | 2 | SCREW | 6,23 Lei | |
| 7 | N873188 | 1 | BAR | 130,35 Lei | |
| 8 | NA521470 | 1 | EXTENSION | 130,52 Lei | |
| 9 | NA523284 | 1 | EXTENSION | 130,52 Lei | |
| 10 | 618192-00 | 1 | PLATE | 52,22 Lei | |
| 11 | 049787-00 | 1 | O RING | 3,78 Lei | |
| 12 | 153451-00 | 1 | BEARING THRUST | 5,21 Lei | |
| 13 | 153792-00 | 2 | LAP WASHER | 4,57 Lei | |
| 14 | N058318 | 1 | SCREW M8X1,25 L.27,5 DWS780 | 5,21 Lei | |
| 15 | N044739 | 1 | LOCK NUT | 4,57 Lei | |
| 16 | N556926 | 1 | DUST CAP | 4,57 Lei | |
| 17 | N825905 | 1 | PLATE | 30,87 Lei | |
| 18 | N926465 | 6 | SCREW | 5,21 Lei | |
| 19 | NA596593 | 1 | TABLE SA | 1,14 Lei | |
| 20 | N536137 | 2 | SCREW,HEX 10x80 DIN 933 | 10,29 Lei | |
| 21 | N861377 | 1 | NUT | 13,85 Lei | |
| 22 | NA366233 | 1 | CLAMP PLATE | 14,07 Lei | |
| 23 | NA318899 | 1 | PLATE | 47,78 Lei | |
| 24 | N908297 | 2 | SCREW | 13,85 Lei | |
| 25 | N821325 | 1 | SPRING | 34,05 Lei | |
| 26 | NA524673 | 1 | ROD | 34,65 Lei | |
| 27 | N844439 | 1 | HANDLE | 57,81 Lei | |
| 28 | 624460-00 | 1 | PIN | 6,23 Lei | |
| 29 | NA327453 | 1 | SPRING | 5,15 Lei | |
| 30 | N844438 | 1 | PIN | 13,85 Lei | |
| 31 | N844471 | 1 | TRIGGER | 21,85 Lei | |
| 32 | N845268 | 1 | PIN | 13,85 Lei | |
| 33 | N844473 | 1 | ACTUATOR | 21,85 Lei | |
| 34 | N477762 | 2 | PLATE | 4,57 Lei | |
| 35 | N913376 | 1 | POINTER | 13,85 Lei | |
| 36 | NA233611 | 2 | PAWL | 28,14 Lei | |
| 37 | NA233609 | 2 | PAWL | 47,78 Lei | |
| 38 | N058315 | 2 | SHOULDER SCREW M6 | 5,21 Lei | |
| 39 | N600034 | 2 | SCREW | 6,23 Lei | |
| 40 | N600059 | 1 | SCREW M8X35 | 7,37 Lei | |
| 41 | N585429 | 1 | BEVEL SCALE | 96,56 Lei | |
| 42 | NA523929 | 1 | FENCE | 390,29 Lei | |
| 43 | 098105-03 | 4 | Screw Flat Head M8X1.25 | 14,07 Lei | |
| 44 | N480604 | 2 | KNOB SA | 34,05 Lei | |
| 45 | 641484-00 | 2 | PLATE | 5,21 Lei | |
| 46 | N912965 | 2 | FENCE | 96,56 Lei | |
| 47 | 098103-18 | 2 | Screw Thread Forming | 4,57 Lei | |
| 49 | NA596594 | 1 | FENCE LH | 198,66 Lei | |
| 50 | NA596595 | 1 | FENCE RH | 208,74 Lei | |
| 51 | N825552 | 4 | WASHER | 5,21 Lei | |
| 52 | N825535 | 1 | NUT | 7,37 Lei | |
| 53 | N531468 | 1 | HANDLE | 47,78 Lei | |
| 54 | NA596596 | 1 | HOUSING | 2,3 Lei | |
| 55 | N051244 | 2 | RUBBER WASHER | 4,57 Lei | |
| 56 | N058314 | 4 | SCREW SHOULDER M5X12 | 6,23 Lei | |
| 57 | 605040-21 | 2 | BEARING | 25,54 Lei | |
| 58 | 153666-00 | 3 | SCREW | 4,57 Lei | |
| 59 | NA024364 | 1 | KNOB | 57,81 Lei | |
| 60 | 659919-00 | 1 | SPRING | 6,23 Lei | |
| 61 | N058312 | 2 | SCREW | 5,21 Lei | |
| 62 | N058308 | 1 | BEVEL POINTER, RIGHT | 6,23 Lei | |
| 63 | N058309 | 1 | BEVEL POINTER, LEFT | 6,23 Lei | |
| 64 | 385946-00 | 4 | WASHER SPRING MBR100 TYPE 2 | 4,57 Lei | |
| 65 | N861044 | 1 | PIN | 52,22 Lei | |
| 66 | N562268 | 2 | KNOB | 15,12 Lei | |
| 67 | 624038-00 | 2 | RETAINER | 4,57 Lei | |
| 68 | N917636 | 2 | PLATE | 19,95 Lei | |
| 69 | 330045-22 | 2 | SCREW | 4,57 Lei | |
| 70 | N828707 | 1 | HOOK | 37,73 Lei | |
| 71 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 72 | N600007 | 1 | WRENCH | 17,02 Lei | |
| 73 | N911387 | 1 | PAWL | 19,95 Lei | |
| 74 | N562266 | 1 | PIN | 25,54 Lei | |
| 75 | N562267 | 2 | SPRING | 6,23 Lei | |
| 76 | 330045-05 | 1 | SCREW.TEMP | 4,57 Lei | |
| 77 | N844475 | 2 | SPRING | 25,54 Lei | |
| 78 | N822264 | 1 | ARM | 264,01 Lei | |
| 79 | N832511 | 1 | SHAFT | 25,54 Lei | |
| 80 | N885267 | 1 | SCREW | 15,12 Lei | |
| 81 | N538855 | 1 | WASHER INNER CLAMP | 25,54 Lei | |
| 82 | 152636-00 | 1 | BLADE HOLDER 2.3 | 12,71 Lei | |
| 84 | N538823 | 1 | CLAMP OUTER | 19,95 Lei | |
| 85 | N600011 | 1 | SCREW | 8,64 Lei | |
| 86 | NA596597 | 1 | ARM | 471,87 Lei | |
| 87 | NA375070 | 1 | GUARD UPPER | 166,11 Lei | |
| 88 | N861062 | 1 | BUMPER | 4,57 Lei | |
| 89 | NA615783 | 1 | PLATE | 6,09 Lei | |
| 90 | N826849 | 1 | PLATE | 15,12 Lei | |
| 91 | N869203 | 1 | SCREW | 15,12 Lei | |
| 92 | N826848 | 1 | SPRING | 12,71 Lei | |
| 93 | N826860 | 1 | DEFLECTOR | 41,93 Lei | |
| 94 | N827877 | 1 | SPRING | 13,85 Lei | |
| 95 | N829510 | 1 | RETAINER | 7,37 Lei | |
| 96 | N875407 | 1 | DEFLECTOR | 12,71 Lei | |
| 97 | N826859 | 1 | GUARD | 41,93 Lei | |
| 98 | NA189003 | 1 | GUARD | 57,81 Lei | |
| 99 | N827944 | 1 | FLAP | 96,56 Lei | |
| 100 | N935010 | 1 | SEAL | 17,02 Lei | |
| 101 | N854646 | 1 | KNOB | 25,54 Lei | |
| 102 | 150718-00 | 1 | NUT WING | 4,57 Lei | |
| 103 | NA009493 | 1 | DUCT | 19,95 Lei | |
| 104 | NA325124 | 1 | MOTOR HOUSING SA | 176,19 Lei | |
| 105 | NA320047 | 1 | GEAR CASE SA | 390,29 Lei | |
| 106 | NA032364 | 1 | O RING | 5,21 Lei | |
| 107 | N878161 | 1 | NUT | 10,29 Lei | |
| 108 | N538531 | 1 | PINION | 37,73 Lei | |
| 109 | N129813-03 | 1 | BEARING,BALL HUAYANG MFG 6000 | 15,12 Lei | |
| 110 | N810722 | 1 | RETAINER | 21,85 Lei | |
| 111 | NA325066 | 1 | ROTOR SA | 1,04 Lei | |
| 112 | NA596612 | 1 | STATOR SA | 2,3 Lei | |
| 113 | N823417 | 1 | SEAL | 13,85 Lei | |
| 114 | N811211 | 1 | GEAR CASE SA | 34,05 Lei | |
| 115 | NA738864 | 1 | O RING | 5,15 Lei | |
| 116 | N921891 | 1 | COVER | 4,57 Lei | |
| 117 | N637090 | 1 | MODULE | 130,35 Lei | |
| 118 | N811091 | 1 | BEARING | 195,02 Lei | |
| 120 | 605040-40 | 1 | BEARING | 37,73 Lei | |
| 121 | N811575 | 1 | RETAINER | 7,37 Lei | |
| 122 | NA025457 | 1 | GEARSHAFT SA | 389,28 Lei | |
| 123 | N811088 | 1 | SPINDLE & GEAR | 289,04 Lei | |
| 124 | N811096 | 1 | COVER | 37,73 Lei | |
| 125 | 393071-00 | 1 | PLATE | 4,57 Lei | |
| 126 | NA129419 | 1 | LOCK PIN | 21,85 Lei | |
| 127 | 448176-00 | 1 | SPRING | 4,57 Lei | |
| 128 | NA333840 | 1 | HANDLE SA | 119,91 Lei | |
| 131 | N687584 | 1 | LED LIGHT | 145,09 Lei | |
| 132 | N300152 | 1 | RUBBER BOOT, WORKLIGHT ACTIVATION SWITC | 10,29 Lei | |
| 133 | N865139 | 1 | COVER | 13,85 Lei | |
| 134 | N862009 | 1 | HANDLE | 70,39 Lei | |
| 136 | NA189010 | 1 | GUARD | 150,05 Lei | |
| 137 | NA189006 | 1 | PLATE | 157,92 Lei | |
| 138 | NA189005 | 1 | RETAINER | 41,93 Lei | |
| 139 | NA189008 | 1 | SPRING | 15,12 Lei | |
| 140 | NA189007 | 1 | PIVOT | 7,37 Lei | |
| 141 | NA189009 | 1 | PLATE | 41,93 Lei | |
| 142 | NA130835 | 1 | ADAPTOR | 18,06 Lei | |
| 143 | N126162 | 1 | DUST BAG | 41,93 Lei | |
| 201 | 394976-00 | 2 | LABEL | 10,29 Lei | |
| 202 | NA721219 | 1 | LABEL | 11,45 Lei | |
| 203 | N466081 | 1 | WARNING LABEL | 4,31 Lei | |
| 204 | NA564483 | 1 | LABEL | 3,78 Lei | |
| 205 | NA564506 | 1 | IDENTITY LABEL | 21,11 Lei | |
| 206 | NA173714 | 1 | LABEL | 7,37 Lei | |
| 207 | NA564507 | 1 | RATING LABEL | 12,5 Lei | |
| 208 | NA381141 | 1 | WARNING LABEL | 6,09 Lei | |
| 209 | NA546579 | 1 | LABEL | 6,09 Lei | |
| 300 | N142123 | 1 | CLAMP SA | 240,38 Lei | |
| 301 | N142125 | 1 | KNOB | 17,02 Lei | |
| 302 | 389750-00 | 1 | RETAINER | 3,78 Lei | |
| 303 | N142124 | 1 | CLAMP | 79,8 Lei | |
| 801 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 900 | NA187677 | 3 | SCREW | 4,57 Lei | |
| 901 | NA187678 | 1 | SCREW | 4,57 Lei | |
| 902 | NA187682 | 1 | SCREW | 5,21 Lei | |
| 903 | 385915-04 | 4 | SCREW S | 4,57 Lei | |
| 905 | 146740-00 | 1 | SLEEVE | 4,57 Lei | |
| 906 | NA189004 | 1 | SLEEVE | 15,12 Lei | |
| 908 | 330045-23 | 9 | SCREW | 4,57 Lei | |
| 910 | NA103675 | 4 | SCREW | 5,21 Lei | |
| 911 | 150075-00 | 3 | SCREW | 5,21 Lei | |
| 912 | NA187687 | 5 | SCREW | 5,21 Lei | |
| 913 | 330045-49 | 16 | SCREW | 4,57 Lei | |
| 914 | NA187689 | 8 | SCREW | 4,57 Lei | |
| 916 | 330045-16 | 4 | Screw Metal | 4,57 Lei | |
| 917 | NA187680 | 18 | SCREW | 4,57 Lei | |
| 918 | NA187673 | 7 | SCREW | 4,57 Lei | |
| 919 | NA187258 | 4 | SCREW | 4,57 Lei | |
| 920 | 330045-49 | 2 | SCREW | 4,57 Lei | |
| 921 | 330019-66 | 2 | SCREW | 4,57 Lei | |
| 922 | 385915-01 | 4 | SCREW | 4,57 Lei | |
| 923 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 924 | NA150912 | 3 | SCREW | 4,57 Lei | |
| 955 | NA702751 | 3 | WASHER | 3,78 Lei |
