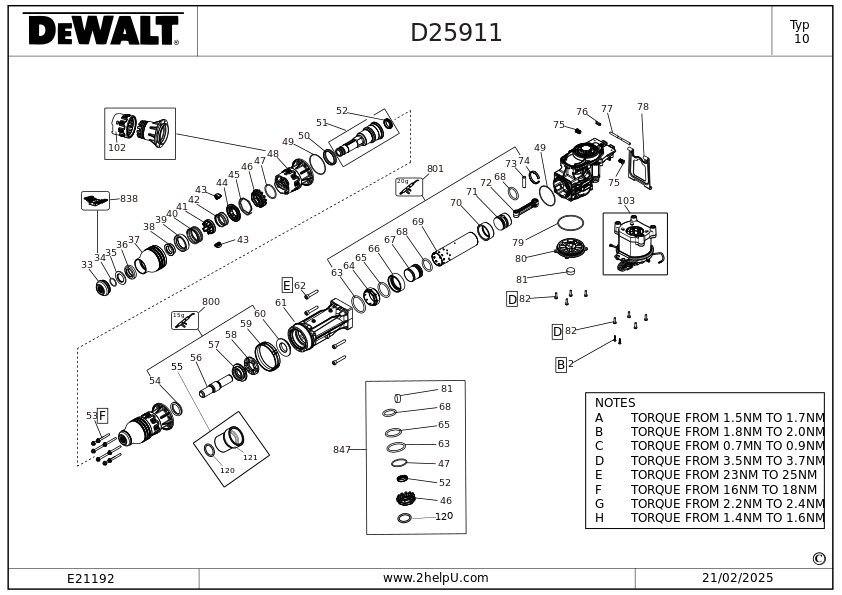

DEWALT CIOCAN DEMOLATOR (Type 10)
SKU Produs: D25911K /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA029598 | 1 | HOUSING SA | 263,03 Lei | |
| 2 | 330065-08 | 27 | SCREW M4X18 | 4,57 Lei | |
| 3 | NA228762 | 2 | GUIDE BLOCK | 6,09 Lei | |
| 4 | N906377 | 2 | DAMPER | 11,45 Lei | |
| 5 | N865826 | 1 | WIRE HARNESS | 28,14 Lei | |
| 6 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 7 | NA049554 | 1 | HANDLE COVER | 6,09 Lei | |
| 8 | N919485 | 1 | AXIS | 7,14 Lei | |
| 9 | NA083203 | 1 | SPRING | 3,78 Lei | |
| 10 | N849617 | 1 | SLIDE | 4,31 Lei | |
| 11 | N855091 | 1 | SPRING | 8,51 Lei | |
| 12 | N855177 | 1 | PLATE | 6,09 Lei | |
| 13 | NA001694 | 1 | GUIDE | 6,09 Lei | |
| 14 | NA262558 | 1 | WASHER | 3,78 Lei | |
| 15 | N935651 | 1 | SWITCH | 28,14 Lei | |
| 16 | NA025564 | 1 | MODULE | 161,18 Lei | |
| 17 | NA029067 | 1 | CLUTCH MODULE | 99,86 Lei | |
| 18 | NA038931 | 1 | BREAKER | 139,97 Lei | |
| 19 | N865821 | 1 | WIRE HARNESS | 31,19 Lei | |
| 20 | NA334564 | 1 | CONTROL MODULE SA | 734,9 Lei | |
| 21 | N921918 | 1 | CORD CLAMP | 21,11 Lei | |
| 22 | NA141417 | 1 | BOX | 16,49 Lei | |
| 23 | NA097306 | 1 | TERMINAL BLOCK | 10,5 Lei | |
| 25 | N935075 | 1 | BREAKER | 298,62 Lei | |
| 26 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 27 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 28 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 29 | N843733 | 1 | HANDLE SIDE SA | 176,19 Lei | |
| 30 | N746271 | 1 | COVER | 58,17 Lei | |
| 31 | 330019-26 | 2 | SCREW M5.28 X42 | 4,57 Lei | |
| 32 | NA131173 | 1 | HOUSING FRONT | 16,49 Lei | |
| 33 | NA176495 | 1 | SEAL | 41,93 Lei | |
| 34 | N522784 | 1 | RETAINER | 4,57 Lei | |
| 35 | N516487 | 1 | WASHER | 7,37 Lei | |
| 36 | NA176490 | 1 | RUBBER | 21,85 Lei | |
| 37 | N532534 | 1 | SLEEVE | 21,11 Lei | |
| 38 | NA147565 | 1 | DAMPER | 25,52 Lei | |
| 39 | N511834 | 1 | BUSH | 25,54 Lei | |
| 40 | N520782 | 1 | SPRING | 7,37 Lei | |
| 41 | N408040 | 1 | SEAL | 21,85 Lei | |
| 42 | N546022 | 1 | SPRING LOCKING 12KG SDS | 8,64 Lei | |
| 43 | N511836 | 2 | LOCKING DEVICE | 37,73 Lei | |
| 44 | N532488 | 1 | GUIDE SPRING 12KG SDS | 7,37 Lei | |
| 45 | N929397 | 1 | SPRING | 4,31 Lei | |
| 46 | NA365538 | 1 | SLEEVE | 43,16 Lei | |
| 47 | N918192 | 1 | O RING | 11,45 Lei | |
| 48 | NA334572 | 1 | HOLDER TOOL | 551,99 Lei | |
| 49 | N853695 | 2 | O RING | 6,09 Lei | |
| 50 | NA068950 | 1 | DAMPER | 21,11 Lei | |
| 51 | NA334559 | 1 | SPINDLE SA | 471,87 Lei | |
| 52 | N784061 | 1 | SEAL | 18,06 Lei | |
| 53 | NA278416 | 8 | SCREW | 5,15 Lei | |
| 54 | N784052 | 1 | SLEEVE BEARING | 21,11 Lei | |
| 55 | NA562768 | 1 | SERVICE KIT | 176,19 Lei | |
| 56 | N784058 | 1 | BEAT PIECE | 161,18 Lei | |
| 57 | N770296 | 1 | BUSH | 88,41 Lei | |
| 58 | N770302 | 1 | DAMPER | 66,15 Lei | |
| 59 | N770319 | 1 | SLIDER | 21,11 Lei | |
| 60 | N851202 | 1 | WASHER | 25,52 Lei | |
| 61 | N819437 | 1 | HOUSING FRONT | 208,74 Lei | |
| 62 | N866784 | 4 | SCREW | 6,09 Lei | |
| 63 | N853690 | 1 | O RING | 18,06 Lei | |
| 64 | N835754 | 1 | CYLINDER | 34,65 Lei | |
| 65 | N770286 | 1 | O RING | 16,49 Lei | |
| 66 | NA640511 | 1 | CYLINDER | 25,52 Lei | |
| 67 | N772436 | 1 | RAM | 130,52 Lei | |
| 68 | N809161 | 2 | O RING | 18,06 Lei | |
| 69 | NA640615 | 1 | SERVICE KIT | 218,19 Lei | |
| 70 | NA640547 | 1 | CYLINDER | 18,06 Lei | |
| 71 | N784889 | 1 | PISTON KIT | 73,19 Lei | |
| 72 | N849636 | 1 | CONNECTING ROD | 21,11 Lei | |
| 73 | N855767 | 1 | PIN | 10,5 Lei | |
| 74 | N854055 | 1 | RING | 4,31 Lei | |
| 75 | NA025059 | 2 | CONTACT PLATE | 3,78 Lei | |
| 76 | NA025057 | 1 | CLIP | 3,78 Lei | |
| 77 | N919476 | 1 | AXIS | 6,09 Lei | |
| 78 | N911183 | 1 | CONTACT PLATE | 28,14 Lei | |
| 79 | N455140 | 1 | O RING | 8,64 Lei | |
| 80 | NA187983 | 1 | CRANK KIT | 28,14 Lei | |
| 81 | 487229-00 | 1 | FELT | 5,21 Lei | |
| 83 | N810039 | 1 | HOUSING GEAR | 31,19 Lei | |
| 84 | N927841 | 1 | SPRING | 3,78 Lei | |
| 85 | NA334573 | 1 | GEAR SA | 166,11 Lei | |
| 89 | N526266 | 1 | D | 4,57 Lei | |
| 90 | NA408088 | 1 | GEAR SA | 130,52 Lei | |
| 91 | N913721 | 1 | SEAL | 11,45 Lei | |
| 92 | 330003-69 | 1 | BEARING, BALL 17x40x12-6203T1XDDW1C3E | 34,05 Lei | |
| 93 | NA409838 | 1 | GEARCASE SA | 358,05 Lei | |
| 94 | 330003-68 | 1 | BEARING, BALL | 57,81 Lei | |
| 95 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 96 | 949729-03 | 1 | RETAINING RING D.35 | 4,57 Lei | |
| 97 | 650249-00 | 1 | O RING | 4,57 Lei | |
| 98 | NA076391 | 1 | RING | 3,78 Lei | |
| 99 | N868365 | 1 | CRANKSHAFT | 218,19 Lei | |
| 100 | NA334581 | 1 | ROTOR SA | 317,1 Lei | |
| 101 | NA356597 | 1 | CORDSET | 99,86 Lei | |
| 102 | N537380 | 1 | SLEEVE TURNING 12KG SDS | 41,93 Lei | |
| 103 | NA753282 | 1 | MOTOR & SWITCH SA | 471,87 Lei | |
| 104 | N865825 | 1 | WIRE HARNESS | 28,14 Lei | |
| 105 | NA334558 | 1 | GEARCASE SA | 677,67 Lei | |
| 120 | NA410062 | 1 | O RING | 6,09 Lei | |
| 121 | NA410078 | 1 | BEAT PIECE | 150,05 Lei | |
| 140 | NA684256 | 1 | RATING PLATE-QS | 16,49 Lei | |
| 141 | N208653 | 1 | LABEL PERFORM PROTECT 61X22MM | 4,57 Lei | |
| 142 | NA165845 | 1 | LABEL | 3,78 Lei | |
| 143 | NA165842 | 1 | LABEL | 3,78 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | 208,11 Lei | |
| 838 | 559651-99 | 1 | SERVICE TOOL | 1579,36 Lei | |
| 847 | NA334574 | 1 | SERVICE KIT | 150,05 Lei | |
| 850 | NA514097 | 1 | WIRE HARNESS | 11,45 Lei | |
| 861 | NA111460 | 1 | KITBOX | 471,87 Lei |
