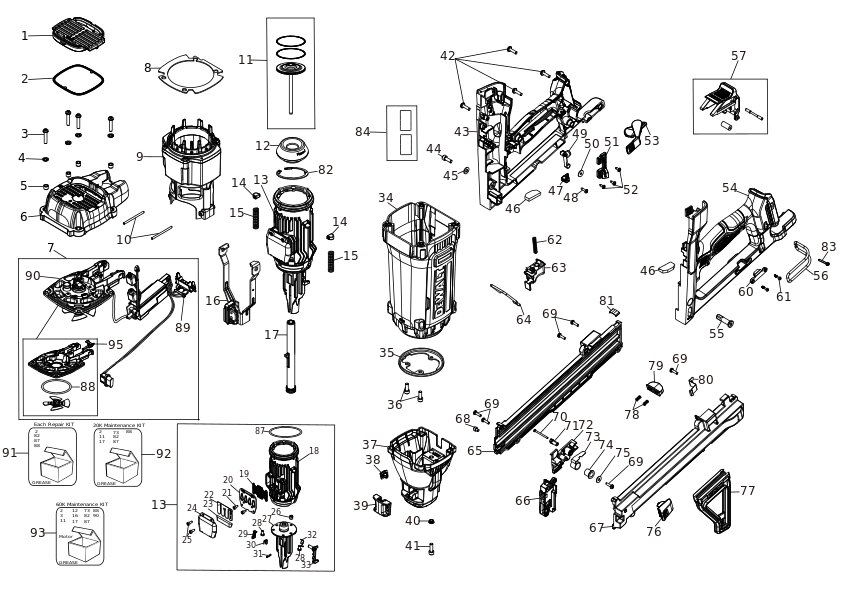

DEWALT PISTOL DA BATUT CUIE (Type 1)
SKU Produs: DGN845N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA253872 | 1 | COVER-TOP | 16,49 Lei | |
| 2 | 5170080-77 | 1 | FILTER | 99,86 Lei | |
| 3 | 5170080-78 | 4 | SCREW | 4,31 Lei | |
| 4 | 5170080-79 | 4 | WASHER | 3,78 Lei | |
| 5 | 5170080-80 | 4 | SPACER | 6,09 Lei | |
| 6 | NA236281 | 1 | CAP | 58,17 Lei | |
| 7 | NA620034 | 1 | CAP SA | 2,75 Lei | |
| 8 | NA600396 | 1 | SPACER | 34,65 Lei | |
| 9 | NA600020 | 1 | C5 CHAMBER KIT | 438,59 Lei | |
| 10 | 5170080-81 | 2 | LOCKING PIN | 14,07 Lei | |
| 11 | NA600442 | 1 | DRIVER SA | 957,29 Lei | |
| 12 | NA600428 | 1 | BUMPER | 99,86 Lei | |
| 13 | 5170080-82 | 1 | CYLINDER SA | 2,12 Lei | |
| 14 | 5170080-83 | 2 | BUSHING | 6,09 Lei | |
| 15 | 5170080-84 | 2 | SPRING | 3,78 Lei | |
| 16 | 5170080-85 | 1 | TRIP SA | 506,73 Lei | |
| 17 | NA291806 | 1 | PIECE | 677,67 Lei | |
| 18 | 5170080-86 | 1 | CYLINDER | 551,99 Lei | |
| 19 | 5170080-87 | 1 | GASKET | 21,11 Lei | |
| 20 | 5170080-88 | 1 | DIAPHRAGM | 34,65 Lei | |
| 21 | 5170080-89 | 2 | SCREW | 4,31 Lei | |
| 22 | 5170080-90 | 1 | PLATE | 58,17 Lei | |
| 23 | 5170080-91 | 1 | FILTER | 25,52 Lei | |
| 24 | 5170080-92 | 1 | COVER | 31,19 Lei | |
| 25 | 5170080-93 | 2 | SCREW | 3,78 Lei | |
| 26 | 5170080-94 | 1 | SLEEVE | 25,52 Lei | |
| 27 | NA60038 | 1 | NOSE | 1,04 Lei | |
| 28 | 5170080-95 | 2 | SCREW | 5,15 Lei | |
| 29 | 5170080-96 | 1 | LEVER | 34,65 Lei | |
| 30 | 5170080-97 | 1 | SPRING | 4,31 Lei | |
| 31 | 5170080-98 | 1 | PIN | 3,78 Lei | |
| 32 | 5170080-99 | 1 | SPRING | 4,31 Lei | |
| 33 | 5170081-00 | 1 | BLOCK | 198,66 Lei | |
| 34 | NA236277 | 1 | HOUSING | 273,95 Lei | |
| 35 | 5170081-01 | 1 | RETAINER | 47,78 Lei | |
| 36 | 5170081-02 | 2 | SCREW | 7,14 Lei | |
| 37 | NA236282 | 1 | HOUSING | 73,19 Lei | |
| 38 | NA315948 | 1 | BUTTON | 5,15 Lei | |
| 39 | NA260001 | 1 | SLIDER | 12,5 Lei | |
| 40 | 5170081-03 | 1 | WASHER | 12,5 Lei | |
| 41 | 5170081-04 | 1 | SCREW | 7,14 Lei | |
| 42 | 5170081-05 | 4 | SCREW | 3,78 Lei | |
| 43 | NA236280 | 1 | COVER | 218,19 Lei | |
| 44 | 5170081-06 | 1 | SCREW | 7,14 Lei | |
| 45 | 5170081-07 | 1 | WASHER | 3,78 Lei | |
| 46 | 5170081-08 | 2 | PAD | 7,14 Lei | |
| 47 | 5170081-09 | 1 | TRIGGER | 10,5 Lei | |
| 48 | 5170081-10 | 1 | SCREW | 3,78 Lei | |
| 49 | 5170081-11 | 1 | CAM LEVER | 58,17 Lei | |
| 50 | 5170081-12 | 1 | WASHER | 3,78 Lei | |
| 51 | 5170081-13 | 1 | PLATE | 7,14 Lei | |
| 52 | 5170081-14 | 3 | SCREW | 3,78 Lei | |
| 53 | NA377311 | 1 | CAM LEVER | 16,49 Lei | |
| 54 | NA236279 | 1 | CLAMP | 218,19 Lei | |
| 55 | 5170081-15 | 1 | NUT | 21,11 Lei | |
| 56 | N412549 | 1 | RAFTER HOOK CCN | 15,12 Lei | |
| 57 | 5170081-16 | 1 | DOOR | 34,65 Lei | |
| 60 | N787996 | 1 | INSERT | 4,57 Lei | |
| 61 | N831593 | 2 | SCREW | 4,57 Lei | |
| 62 | 5170081-18 | 1 | SPRING | 3,78 Lei | |
| 63 | NA265237 | 1 | TRIGGER | 18,06 Lei | |
| 64 | 5170081-19 | 1 | BAR | 12,5 Lei | |
| 65 | NA240835 | 1 | MAGAZINE SA | 119,91 Lei | |
| 66 | NA240802 | 1 | MAGAZINE INTERFACE | 228,8 Lei | |
| 67 | NA240836 | 1 | COVER | 130,52 Lei | |
| 68 | N123971 | 1 | SCREW, MACH, M4X4.75 T20 | 4,57 Lei | |
| 69 | N330019 | 6 | SCREW | 3,78 Lei | |
| 70 | N054948 | 1 | SCREW | 4,57 Lei | |
| 71 | N545647 | 1 | PIN | 7,14 Lei | |
| 72 | NA245621 | 1 | PUSHER | 18,06 Lei | |
| 73 | N545684 | 1 | SPRING | 34,65 Lei | |
| 74 | N547019 | 1 | BUSHING | 5,15 Lei | |
| 75 | 330019-02 | 1 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 76 | N545675 | 1 | CAP LATCH 1IN(SUBC) | 6,23 Lei | |
| 77 | NA364895 | 1 | FOOT | 34,65 Lei | |
| 78 | N466546 | 2 | LATCH PUSHER SPRING | 4,57 Lei | |
| 79 | N464508 | 1 | MAGAZINE LATCH PUSHER | 6,23 Lei | |
| 80 | N114100 | 1 | LATCH LOCK | 5,21 Lei | |
| 81 | N464365 | 1 | MAGAZINE END CLIP | 4,57 Lei | |
| 82 | NA600542 | 1 | RING | 28,14 Lei | |
| 83 | 5170081-20 | 1 | SCREW | 6,09 Lei | |
| 84 | 5170081-21 | 1 | LABEL | 25,52 Lei | |
| 87 | 5170087-82 | 1 | O RING | 34,65 Lei | |
| 88 | 5170087-83 | 1 | O RING | 58,17 Lei | |
| 89 | 5170118-19 | 1 | PCB SA-PCBASSEMBLY UNIT | 1,29 Lei | |
| 90 | 5170118-20 | 1 | CAP SA-COMBUSTION CAP UNIT | 1,99 Lei | |
| 91 | 5170129-26 | 1 | KIT-EACH REPAIR KIT | 273,95 Lei | |
| 92 | 5170129-27 | 1 | KIT-20K MAINTENANCE KIT | 1,89 Lei | |
| 93 | 5170129-28 | 1 | KIT-60K MAINTENANCE KIT | 3,11 Lei | |
| 94 | 5170129-81 | 1 | GREASE-SUPER LUBE SYNTHETIC GREASE 41030 | 99,86 Lei |
