DEWALT SURUBELNITA CU ACUMULATOR (Type 1)
SKU Produs: DCF622N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N178812 | 1 | CLAMSHELL SET | 70,39 Lei | |
| 2 | N473971 | 1 | MOTOR AND SWITCH SA | 472,24 Lei | |
| 3 | N257859 | 1 | TRIGGER LOCK-ON | 4,57 Lei | |
| 4 | N257879 | 1 | SPRING | 4,57 Lei | |
| 5 | 682211-00 | 11 | SCREW, PLASTITE | 4,57 Lei | |
| 6 | 56122-00 | 1 | O RING | 10,29 Lei | |
| 7 | N112274 | 1 | WASHER, THRUST | 4,57 Lei | |
| 8 | 605852-00 | 1 | BEARING, THRUST | 8,64 Lei | |
| 9 | N451902 | 1 | WASHER | 3,78 Lei | |
| 10 | N473980 | 1 | Gear | 41,93 Lei | |
| 11 | N473979 | 1 | CLUTCH SA | 80,04 Lei | |
| 12 | 089210-00 | 2 | RING, RETAINER, ROUND | 6,23 Lei | |
| 13 | N454924 | 1 | GUIDE | 4,57 Lei | |
| 14 | N454925 | 1 | SPRING | 4,57 Lei | |
| 15 | N455021 | 1 | BEARING | 17,02 Lei | |
| 16 | N455017 | 1 | Gear | 12,71 Lei | |
| 17 | N473976 | 1 | GEARCASE SA | 37,73 Lei | |
| 18 | N473978 | 1 | SPINDLE AND GEAR SA | 96,56 Lei | |
| 19 | N473975 | 1 | NOSE SA | 240,38 Lei | |
| 20 | N435687 | 1 | HOOK SA | 41,93 Lei | |
| 21 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 24 | NA050139 | 1 | RATING LABEL | 3,78 Lei | |
| 25 | N333803 | 1 | BRAND LABEL | 4,57 Lei | |
| 26 | N403409 | 1 | LABEL | 4,57 Lei | |

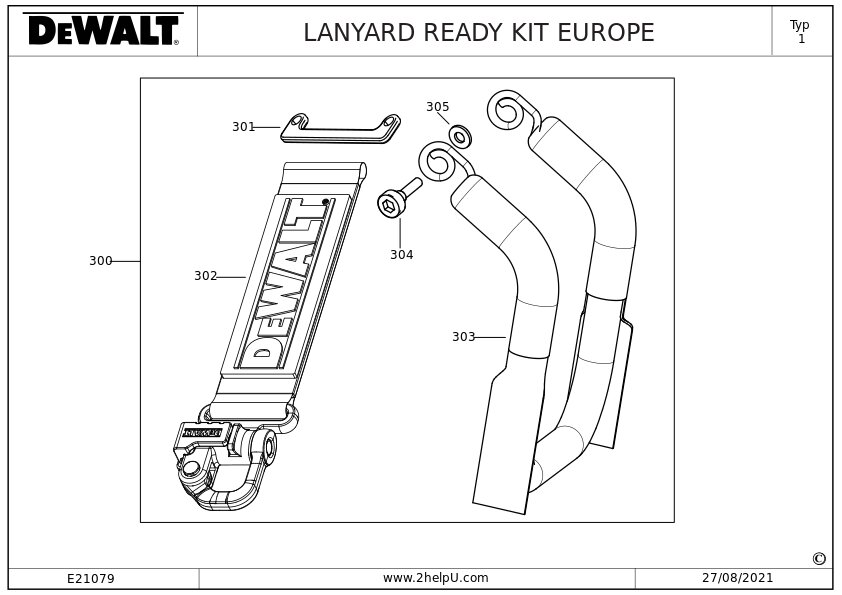

| 300 | NA325022 | 1 | SERVICE KIT | 438,59 Lei | |
| 301 | N537349 | 1 | STRAP. HOOKED | 4,57 Lei | |
| 302 | NA012391 | 2 | BRACKET | 41,93 Lei | |
| 303 | NA012370 | 1 | CLIP SA | 41,93 Lei | |
| 304 | N542271 | 2 | SCREW | 12,71 Lei | |
| 305 | N462739 | 2 | WASHER | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei |
