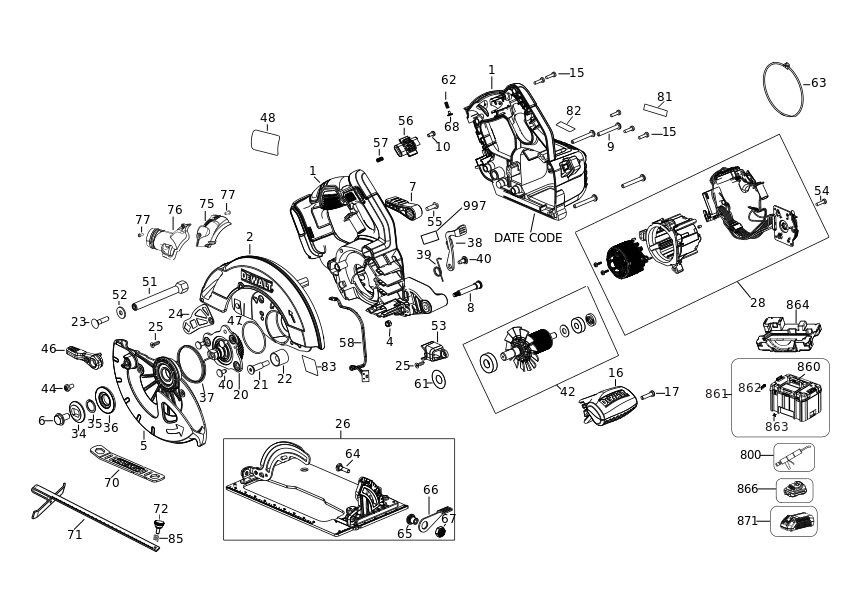

DEWALT FIERASTRAU CIRCULAR CU ACUMULATOR (Type 2)
SKU Produs: DCS570NT /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N462731 | 1 | CLAMSHELL SET | 106,98 Lei | |
| 2 | N499337 | 1 | GEARCASE SA | 213,19 Lei | |
| 4 | N123103 | 1 | STOP NUT | 4,57 Lei | |
| 5 | N378852 | 1 | GUARD LOWER | 96,56 Lei | |
| 6 | 145344-00 | 1 | SCREW SPECIAL | 10,29 Lei | |
| 7 | N419350 | 1 | LEVER | 5,21 Lei | |
| 8 | N099101 | 1 | BOLT | 5,21 Lei | |
| 9 | 330045-19 | 4 | SCREW TEMP | 4,57 Lei | |
| 10 | 330019-10 | 1 | SCREW | 4,57 Lei | |
| 15 | 330019-03 | 7 | Screw M3.5X16 T15 | 4,57 Lei | |
| 16 | N510174 | 1 | HANDLE | 15,12 Lei | |
| 17 | 330019-13 | 1 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 20 | N472351 | 1 | SPINDLE SA | 106,98 Lei | |
| 21 | N086135 | 1 | SCREW | 4,57 Lei | |
| 22 | 381066-00 | 1 | BUMPER | 4,57 Lei | |
| 23 | 098128-90 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 24 | N135988 | 1 | STRAP | 5,21 Lei | |
| 25 | 593515-00 | 2 | SCREW | 4,57 Lei | |
| 26 | N505911 | 1 | SHOE SA | 225,26 Lei | |
| 28 | N805577 | 1 | MOTOR AND SWITCH SA | 713,77 Lei | |
| 34 | 145343-01 | 1 | WASHER OUTER CLAMP | 7,37 Lei | |
| 35 | N120426 | 1 | RETAINER | 4,57 Lei | |
| 36 | N084137 | 1 | WASHER INNER CLAMP | 13,85 Lei | |
| 37 | N100006 | 1 | SPRING | 7,37 Lei | |
| 38 | N090570 | 1 | LEVER LOCK | 13,85 Lei | |
| 39 | N100123 | 1 | SPRING | 4,57 Lei | |
| 40 | 385915-04 | 4 | SCREW S | 4,57 Lei | |
| 42 | N917615 | 1 | ROTOR SA | 276,84 Lei | |
| 44 | 098094-13 | 1 | SCREW M5x13 | 4,57 Lei | |
| 46 | N086628 | 1 | LEVER | 7,37 Lei | |
| 47 | N361499 | 1 | O RING | 4,57 Lei | |
| 48 | NA049840 | 1 | RATING LABEL | 5,21 Lei | |
| 51 | N420031 | 1 | SHAFT | 37,73 Lei | |
| 52 | N620480 | 1 | WASHER | 4,57 Lei | |
| 53 | N421358 | 1 | COVER | 4,57 Lei | |
| 54 | N034545 | 4 | SCREW | 4,57 Lei | |
| 55 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 56 | N422878 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 57 | N433343 | 1 | SPRING | 4,57 Lei | |
| 61 | N447499 | 1 | WASHER FIBRE | 4,57 Lei | |
| 62 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 63 | 90504014 | 1 | CABLE TIE | 4,57 Lei | |
| 64 | 098128-90 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 65 | N094731 | 1 | SCREW | 15,12 Lei | |
| 66 | 145347-00 | 1 | LEVER | 8,64 Lei | |
| 67 | N117921 | 1 | STOP NUT | 4,57 Lei | |
| 68 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 70 | N493688 | 1 | SPANNER | 10,29 Lei | |
| 71 | N074939 | 1 | FENCE | 37,73 Lei | |
| 72 | N287119 | 1 | SCREW | 7,37 Lei | |
| 75 | N168420 | 1 | DUST PORT | 5,21 Lei | |
| 76 | N108974 | 1 | DUST PORT | 8,64 Lei | |
| 77 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 81 | N498793 | 1 | BRAND LABEL | 4,57 Lei | |
| 82 | N522902 | 1 | LABEL | 4,57 Lei | |
| 83 | N466984 | 1 | LABEL | 4,57 Lei | |
| 85 | 058287-00 | 1 | SPRING, CPRSN | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 860 | H1400198008 | 1 | HANDLE | 17,02 Lei | |
| 861 | N429655 | 1 | KITBOX | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | N498615 | 1 | TRAY | 57,81 Lei | |
| 997 | NA710246 | 1 | FOAM | 3,78 Lei |
