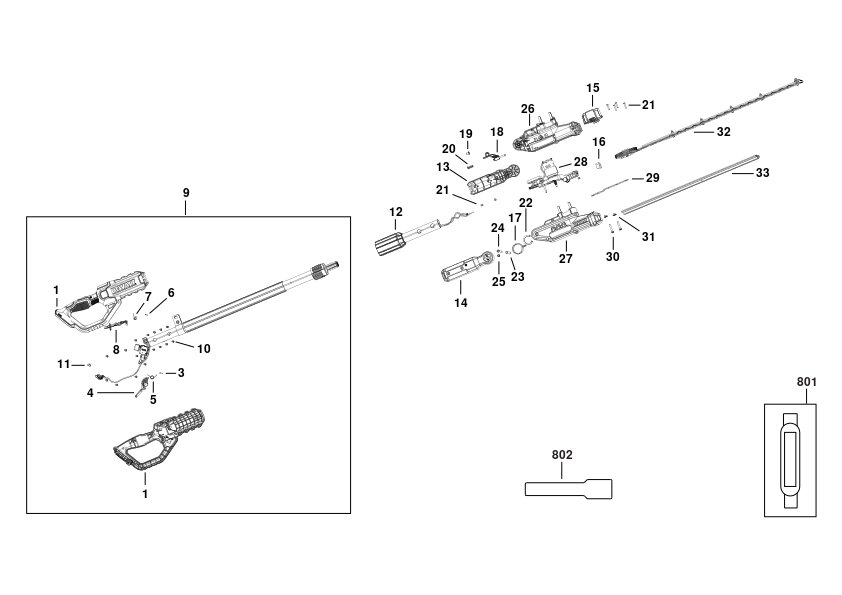

DEWALT MASINA DE TUNS GARD VIU CU ACUMULATOR (Type 1)
SKU Produs: DCMPH566N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N870427 | 1 | CLAMSHELL PAIR | 120,82 Lei | |
| 3 | N670326 | 1 | PIVOT | 4,57 Lei | |
| 4 | N646128 | 1 | TRIGGER | 12,71 Lei | |
| 5 | N659016 | 1 | SPRING | 4,57 Lei | |
| 6 | N664030 | 1 | PIVOT | 4,57 Lei | |
| 7 | N664433 | 1 | SPRING | 4,57 Lei | |
| 8 | N674967 | 1 | ACTUATOR | 13,85 Lei | |
| 9 | N738134 | 1 | SWITCH SA | 389,28 Lei | |
| 10 | 330019-03 | 16 | Screw M3.5X16 T15 | 4,57 Lei | |
| 11 | 330019-06 | 1 | SCREW, PLSTC THD FORM, M3.5x32 T15 | 4,57 Lei | |
| 12 | N727014 | 1 | POLE PIECE SA | 80,04 Lei | |
| 13 | N695769 | 1 | PIVOT | 21,85 Lei | |
| 14 | N695770 | 1 | PIVOT | 21,85 Lei | |
| 15 | N702834 | 1 | CAP | 19,95 Lei | |
| 16 | N692632 | 1 | FELT | 6,23 Lei | |
| 17 | N683090 | 1 | RING | 13,85 Lei | |
| 18 | N695743 | 1 | BUTTON | 19,95 Lei | |
| 19 | N695742 | 1 | PIN | 4,57 Lei | |
| 20 | N719624 | 12 | SCREW | 4,57 Lei | |
| 21 | 330019-04 | 12 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 22 | N715112 | 1 | WASHER | 5,21 Lei | |
| 23 | N714562 | 1 | SLEEVE | 12,71 Lei | |
| 24 | N753977 | 1 | SCREW | 4,57 Lei | |
| 25 | N461154 | 1 | NUT | 4,57 Lei | |
| 26 | N677751 | 1 | COVER | 41,93 Lei | |
| 27 | N677752 | 1 | COVER | 57,81 Lei | |
| 28 | N875115 | 1 | MOTOR SA | 300,47 Lei | |
| 29 | 90570808 | 1 | PLATE | 10,29 Lei | |
| 30 | N778918 | 1 | BOLT | 4,57 Lei | |
| 31 | N603748 | 2 | SPACER | 4,57 Lei | |
| 32 | N814522 | 1 | BLADE SA | 317,1 Lei | |
| 33 | N767711 | 1 | SHEATH | 17,02 Lei | |
| 801 | N502343 | 1 | STRAP | 34,05 Lei |
