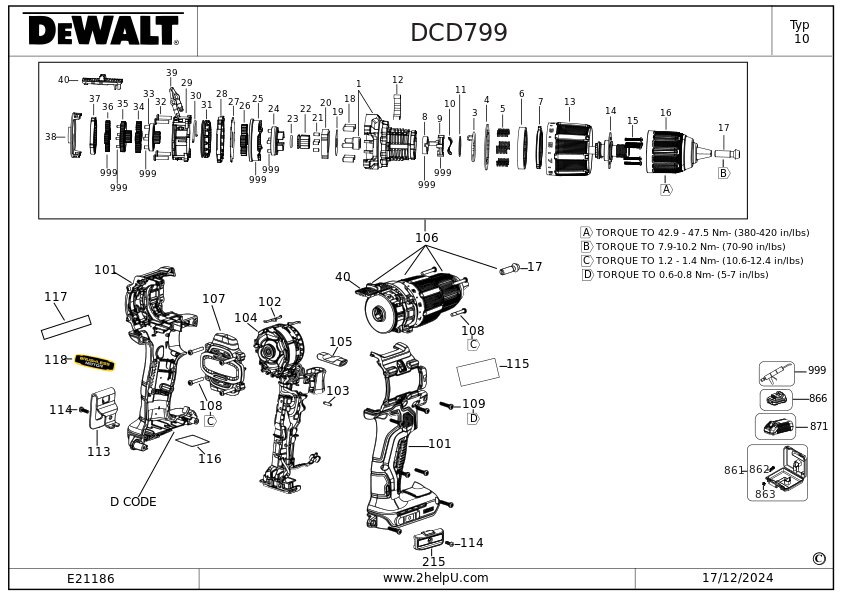

DEWALT MASINA DE GAURIT CU PERCUTIE (Type 10)
SKU Produs: DCD799N /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA549830 | 1 | HOUSING | 43,16 Lei | |
| 3 | N616763 | 1 | SPRING | 4,57 Lei | |
| 4 | N544404 | 1 | WASHER | 4,57 Lei | |
| 5 | NA028712 | 12 | SPRING | 4,57 Lei | |
| 6 | N647198 | 1 | HOLDER | 4,57 Lei | |
| 7 | N543649 | 1 | NUT | 8,64 Lei | |
| 8 | N598613 | 1 | Gear | 17,02 Lei | |
| 9 | N598614 | 1 | Gear | 13,85 Lei | |
| 10 | N618571 | 1 | WASHER | 4,57 Lei | |
| 11 | N613395 | 1 | WASHER | 4,57 Lei | |
| 12 | N602515 | 1 | SPRING | 4,57 Lei | |
| 13 | N618143 | 1 | COLLAR | 15,12 Lei | |
| 14 | N696446 | 1 | SPINDLE SA | 57,81 Lei | |
| 15 | N039795 | 5 | SCREW | 4,57 Lei | |
| 16 | NA728702 | 1 | CHUCK KEYLESS | 79,8 Lei | |
| 17 | N092854 | 1 | SCREW FOR CHUCK | 4,57 Lei | |
| 18 | NA298616 | 6 | CLUTCH PIN | 4,31 Lei | |
| 19 | N090435 | 1 | WASHER | 4,57 Lei | |
| 20 | N022985 | 1 | LOCKING RING | 19,95 Lei | |
| 21 | N507193 | 4 | PIN | 4,57 Lei | |
| 22 | N645930 | 1 | ANVIL MIDWAY | 14,07 Lei | |
| 23 | N560646 | 1 | O RING | 3,78 Lei | |
| 24 | N696448 | 1 | CARRIER SA | 21,85 Lei | |
| 25 | N551385 | 1 | Gear | 13,85 Lei | |
| 26 | N543018 | 4 | Gear | 4,57 Lei | |
| 27 | N548368 | 1 | WASHER | 4,57 Lei | |
| 28 | N543943 | 1 | Gear | 12,71 Lei | |
| 29 | N544134 | 1 | HOUSING | 7,37 Lei | |
| 30 | N542091 | 1 | WIRE STEEL | 4,57 Lei | |
| 31 | N541279 | 1 | Gear | 13,85 Lei | |
| 32 | N075506 | 4 | SCREW | 4,57 Lei | |
| 33 | N678083 | 1 | CARRIER SA | 52,22 Lei | |
| 34 | N541277 | 4 | Gear | 4,57 Lei | |
| 35 | N678084 | 1 | CARRIER SA | 41,93 Lei | |
| 36 | N541274 | 4 | Gear | 4,57 Lei | |
| 37 | N541276 | 1 | Gear | 7,37 Lei | |
| 38 | NA160740 | 1 | BACKPLATE | 7,37 Lei | |
| 39 | NA145823 | 1 | LINK | 6,23 Lei | |
| 40 | NA568354 | 1 | SELECTOR | 16,49 Lei | |
| 101 | NA730392 | 1 | CLAMSHELL PAIR | 66,15 Lei | |
| 102 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 103 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 104 | NA600668 | 1 | MOTOR SA | 589,89 Lei | |
| 105 | N399342 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 106 | NA663192 | 1 | TRANSMISSION SA-METAL CHUCK | 390,29 Lei | |
| 107 | NA004706 | 1 | CAP | 12,5 Lei | |
| 108 | 682211-00 | 8 | SCREW, PLASTITE | 4,57 Lei | |
| 109 | 682211-00 | 7 | SCREW, PLASTITE | 4,57 Lei | |
| 113 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 114 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 115 | NA353841 | 1 | RATING PLATE | 3,78 Lei | |
| 116 | NA353842 | 1 | LABEL | 3,78 Lei | |
| 117 | NA353843 | 1 | BRAND LABEL-18V | 3,78 Lei | |
| 118 | NA392494 | 1 | LABEL-BRUSHLESS | 3,78 Lei | |
| 215 | N475326 | 1 | SA MAGNET HOLDER USTI (MOULD) | 21,85 Lei | |
| 999 | NA360289 | 1 | GREASE | 66,15 Lei |
