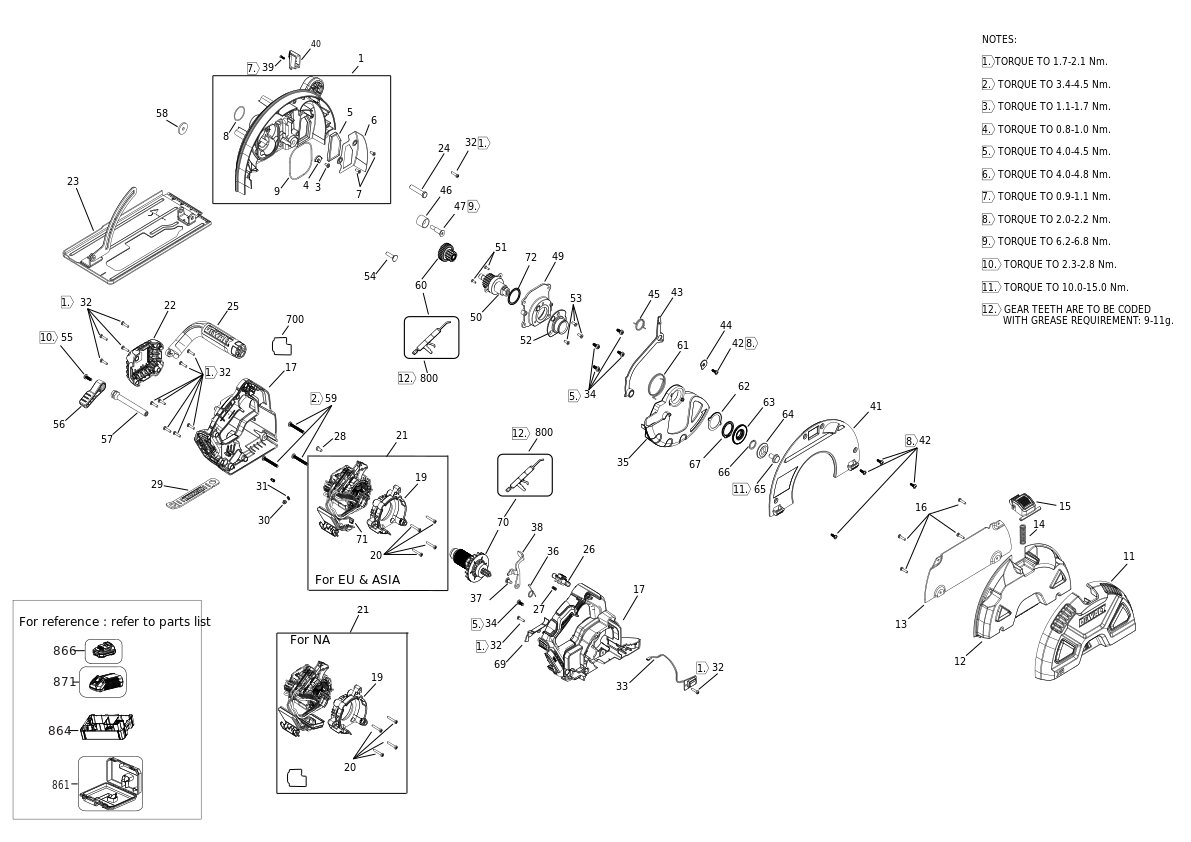

DEWALT FIERĂSTRĂU CIRCULAR (Type 1)
SKU Produs: DCS383N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA638025 | 1 | GEARCASE SA | 390,29 Lei | |
| 3 | NA165152 | 1 | LIMITER-DEFLECTION LIMITER | 4,31 Lei | |
| 4 | N514767 | 2 | SCREW | 4,57 Lei | |
| 5 | NA334827 | 1 | WINDOW | 73,19 Lei | |
| 6 | NA295246 | 1 | PLATE-BLAST PLATE | 25,52 Lei | |
| 7 | N503419 | 2 | SCREW | 4,57 Lei | |
| 8 | N380571 | 1 | O-RING | 3,78 Lei | |
| 9 | NA201075 | 1 | SEAL | 14,07 Lei | |
| 11 | NA261889 | 1 | CLAMSHELL | 107,73 Lei | |
| 12 | NA261890 | 1 | COLLECTOR-COLLECTOR BODY | 130,52 Lei | |
| 13 | NA277859 | 1 | COVERPLATE-COLLECTOR PLATE | 34,65 Lei | |
| 14 | NA352707 | 1 | SPRING | 3,78 Lei | |
| 15 | NA266447 | 1 | BUTTON | 12,5 Lei | |
| 16 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 17 | NA577272 | 1 | HANDLE SA | 88,41 Lei | |
| 19 | NA407615 | 1 | BAFFLE | 16,49 Lei | |
| 20 | 330019-05 | 4 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 21 | NA662752 | 1 | MOTOR & SWITCH SA | 957,29 Lei | |
| 22 | NA411963 | 1 | END CAP | 21,11 Lei | |
| 23 | NA430008 | 1 | SHOE SA | 150,05 Lei | |
| 24 | NA133400 | 1 | PIN | 7,14 Lei | |
| 25 | NA143683 | 1 | HANDLE | 47,78 Lei | |
| 26 | N422878 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 27 | N433343 | 1 | SPRING | 4,57 Lei | |
| 28 | 330019-10 | 1 | SCREW | 4,57 Lei | |
| 29 | N420180 | 1 | SPANNER | 15,12 Lei | |
| 30 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 31 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 32 | 330019-03 | 14 | Screw M3.5X16 T15 | 4,57 Lei | |
| 33 | NA315291 | 1 | LED LIGHT | 31,19 Lei | |
| 34 | 330045-49 | 5 | SCREW | 4,57 Lei | |
| 35 | NA410409 | 1 | GUARD LOWER | 107,73 Lei | |
| 36 | N100123 | 1 | SPRING | 4,57 Lei | |
| 37 | 385915-04 | 1 | SCREW S | 4,57 Lei | |
| 38 | N090570 | 1 | LEVER LOCK | 13,85 Lei | |
| 39 | 330065-25 | 1 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 40 | NA357953 | 1 | PAD-LGL THUMB PAD | 6,09 Lei | |
| 41 | NA277861 | 1 | GUARD | 107,73 Lei | |
| 42 | 330045-45 | 5 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 43 | NA322871 | 1 | LEVER-SA LOWER GUARD LEVER | 25,52 Lei | |
| 44 | NA296408 | 1 | BUSHING | 6,09 Lei | |
| 45 | NA352622 | 1 | SPRING | 3,78 Lei | |
| 46 | 381066-00 | 1 | BUMPER | 4,57 Lei | |
| 47 | N086135 | 1 | SCREW | 4,57 Lei | |
| 49 | NA410410 | 1 | GEARCASE COVER | 88,41 Lei | |
| 50 | NA638024 | 1 | SPINDLE SA | 107,73 Lei | |
| 51 | N796738 | 2 | SCREW-M3 | 3,78 Lei | |
| 52 | NA252752 | 1 | HUB | 31,19 Lei | |
| 53 | N503419 | 3 | SCREW | 4,57 Lei | |
| 54 | NA415942 | 1 | CARRIAGE BOLT | 3,78 Lei | |
| 55 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 56 | N419350 | 1 | LEVER | 5,21 Lei | |
| 57 | NA412111 | 1 | THREADED ROD | 25,52 Lei | |
| 58 | NA398628 | 1 | WASHER | 6,09 Lei | |
| 59 | 330045-19 | 3 | SCREW TEMP | 4,57 Lei | |
| 60 | NA638017 | 1 | GEAR SA | 66,15 Lei | |
| 61 | NA246667 | 1 | SPRING TORSION | 10,5 Lei | |
| 62 | NA206066 | 1 | WASHER | 3,78 Lei | |
| 63 | N084137 | 1 | WASHER INNER CLAMP | 13,85 Lei | |
| 64 | N123200 | 1 | OUTER FLANGE | 30,87 Lei | |
| 65 | 145344-00 | 1 | SCREW SPECIAL | 10,29 Lei | |
| 66 | N120426 | 1 | RETAINER | 4,57 Lei | |
| 67 | NA252290 | 1 | SPRING-RETAINING RING | 3,78 Lei | |
| 69 | NA596767 | 1 | HOLDER | 5,15 Lei | |
| 70 | NA638638 | 1 | ROTOR SA | 208,74 Lei | |
| 71 | NA615367 | 1 | PLUG | 3,78 Lei | |
| 72 | NA664119 | 1 | SEAL | 3,78 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
