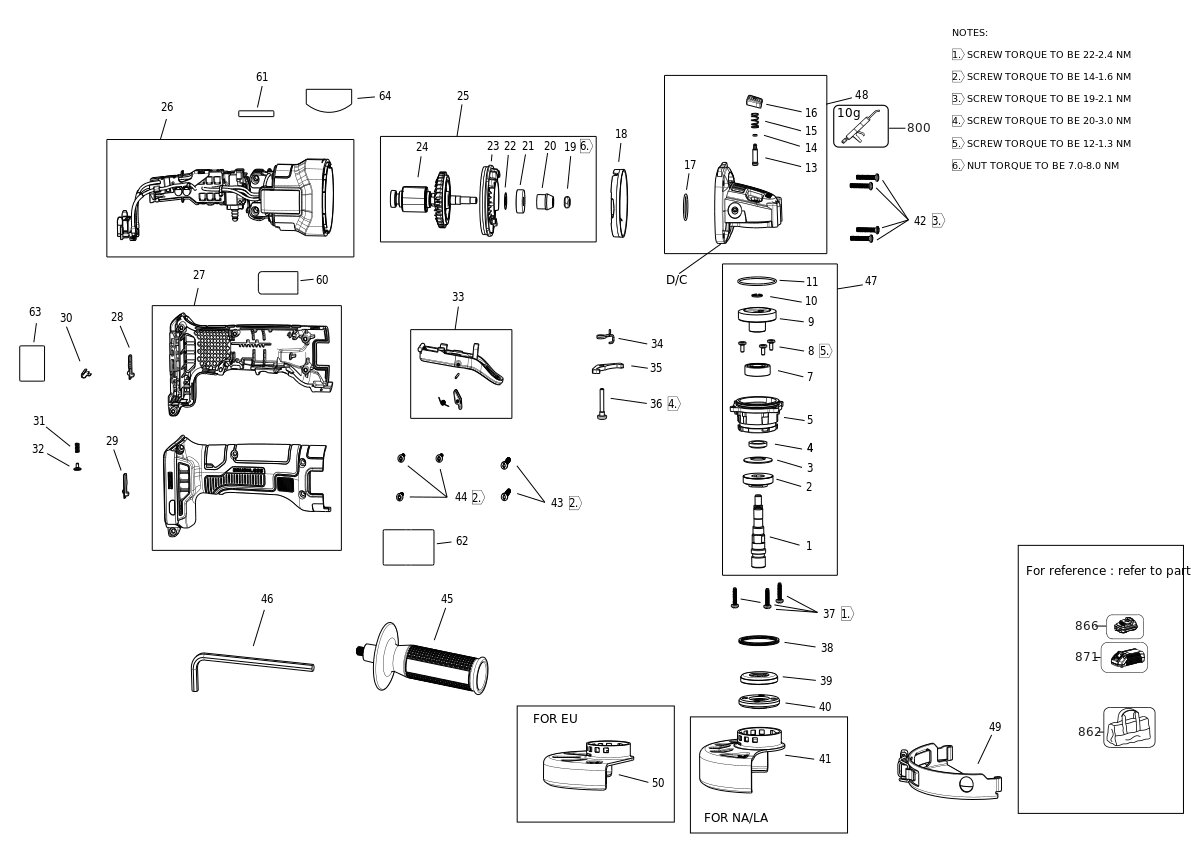

DEWALT POLIZOR UNGHIULAR MIC (Type 1)
SKU Produs: DCG407NT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA425969 | 1 | SPINDLE-M14 | 18,06 Lei | |
| 2 | N448927 | 1 | WASHER | 17,02 Lei | |
| 3 | N451305 | 1 | WASHER SPRING | 4,57 Lei | |
| 4 | N390307 | 1 | SPACER | 10,29 Lei | |
| 5 | NA384886 | 3 | COVER GEARCASE | 25,52 Lei | |
| 7 | 605040-21 | 1 | BEARING | 25,54 Lei | |
| 8 | N514767 | 1 | SCREW | 4,57 Lei | |
| 9 | NA411393 | 1 | GEAR-GEAR 29 T STEEL | 25,52 Lei | |
| 10 | NA411389 | 1 | CIRCLIP | 3,78 Lei | |
| 11 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 13 | NA088952 | 1 | LOCK PIN | 4,31 Lei | |
| 14 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 15 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 16 | NA407658 | 1 | BUTTON LOCK-ON-BUTTON SPINDLE LOCK | 3,78 Lei | |
| 17 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 18 | NA396900 | 1 | BAFFLE | 3,78 Lei | |
| 19 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 20 | NA411392 | 1 | PINION | 16,49 Lei | |
| 21 | N214432 | 1 | BEARING | 7,37 Lei | |
| 22 | N213812 | 1 | WASHER | 4,57 Lei | |
| 23 | NA419306 | 1 | FAN | 4,31 Lei | |
| 24 | NA395016 | 1 | ROTOR SA | 107,73 Lei | |
| 25 | NA741113 | 1 | ARMATURE SA | 150,05 Lei | |
| 26 | NA701831 | 1 | MOTOR & SWITCH SA | 373,38 Lei | |
| 27 | NA423571 | 1 | HANDLE SA | 47,78 Lei | |
| 28 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 29 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 30 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 31 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 32 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 33 | N497112 | 1 | SA SLIDER LEVER | 13,85 Lei | |
| 34 | N105579 | 3 | SPRING | 4,57 Lei | |
| 35 | N637725 | 1 | LEVER | 13,85 Lei | |
| 36 | N297219 | 1 | SCREW SHOULDER M4 | 4,57 Lei | |
| 37 | 330045-06 | 1 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 38 | N135116 | 4 | WASHER SPRING | 6,23 Lei | |
| 39 | 391969-00 | 3 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 40 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 41 | NA680155 | 1 | GUARD | 25,52 Lei | |
| 42 | 330065-31 | 1 | SCREW | 4,57 Lei | |
| 43 | 330065-33 | 1 | SCREW M4X34 T15 | 4,57 Lei | |
| 44 | 330019-04 | 1 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 45 | N401305 | 1 | SIDE HANDLE | 19,95 Lei | |
| 46 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 47 | NA708489 | 1 | GEARCASE COVER SA | 119,91 Lei | |
| 48 | NA741128 | 1 | GEARCASE SA | 88,41 Lei | |
| 49 | NA267971 | 1 | GUARD | 66,15 Lei | |
| 50 | N489903 | 1 | ARES SLIDER LEVER PIN | 4,57 Lei | |
| 61 | NA505216 | 1 | RATING LABEL | 3,78 Lei | |
| 62 | NA505183 | 1 | IDENTITY LABEL | 3,78 Lei | |
| 63 | NA505218 | 1 | WARNING LABEL | 3,78 Lei | |
| 64 | NA505217 | 1 | LABEL | 3,78 Lei | |
| 65 | N602440 | 1 | LABEL | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 864 | NA690455 | 1 | TRAY | 47,78 Lei |
