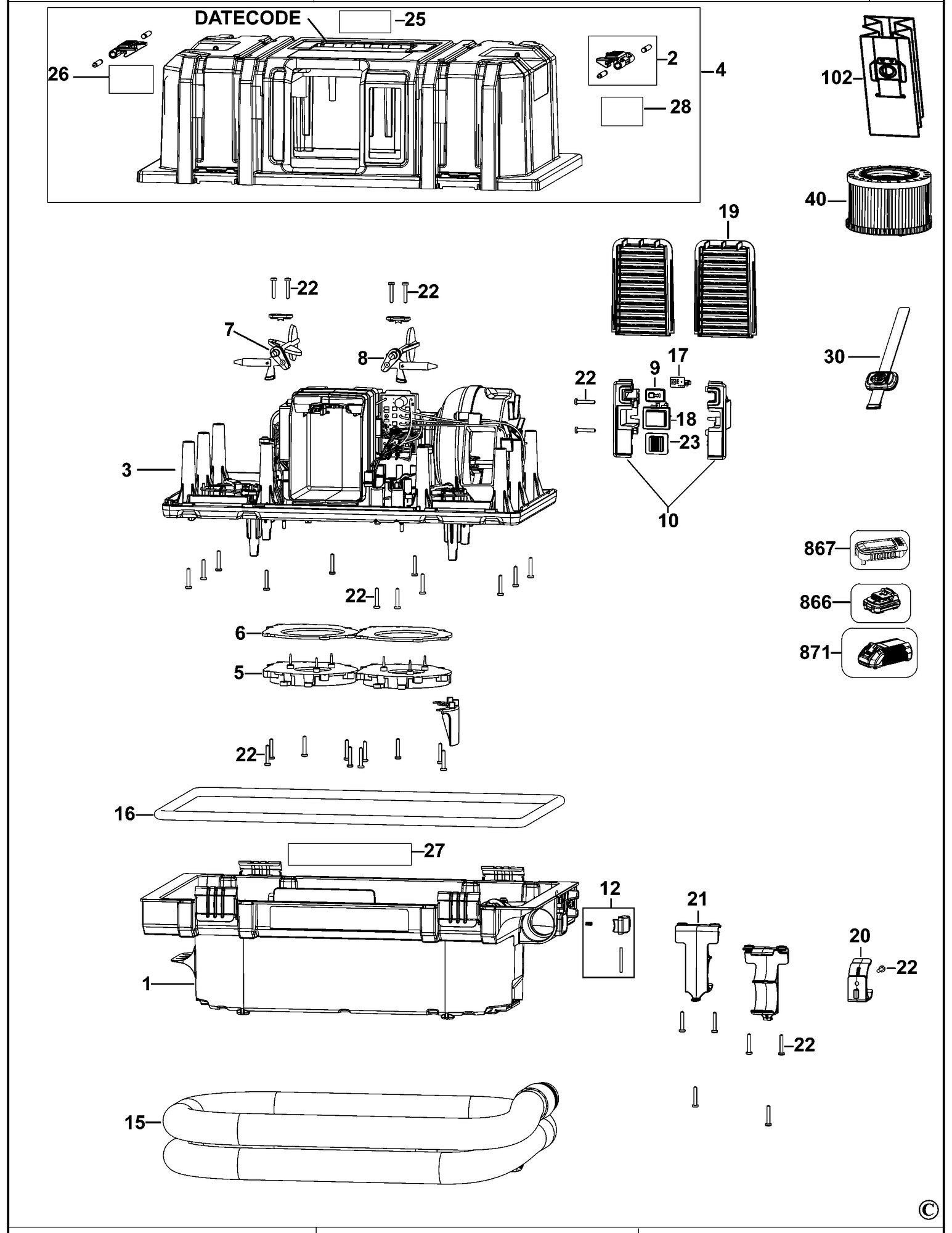

DEWALT EXTRACTOR VID (Type 1)
SKU Produs: DCV586MN /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N619312 | 1 | TANK | 433,24 Lei | |
| 2 | N619385 | 2 | LATCH | 70,39 Lei | |
| 4 | N619629 | 1 | COVER AND LABEL | 433,24 Lei | |
| 5 | N619630 | 2 | COVER SA | 88,55 Lei | |
| 6 | N509633 | 2 | SEAL | 4,57 Lei | |
| 7 | N619631 | 1 | VALVE | 25,54 Lei | |
| 8 | N619632 | 1 | VALVE | 80,04 Lei | |
| 9 | N702897 | 1 | BUTTON SA | 6,09 Lei | |
| 10 | N619653 | 1 | CLAMSHELL SET | 25,54 Lei | |
| 12 | N619639 | 1 | BUTTON RELEASE | 6,23 Lei | |
| 15 | N619919 | 1 | HOSE SA | 289,04 Lei | |
| 16 | N526329 | 1 | SEAL | 25,54 Lei | |
| 17 | N761463 | 1 | HARNESS | 80,04 Lei | |
| 18 | N538526 | 1 | SWITCH | 41,93 Lei | |
| 19 | N533758 | 2 | VENT | 15,12 Lei | |
| 20 | N521042 | 1 | CLIP | 6,23 Lei | |
| 21 | N521041 | 2 | CLIP | 7,37 Lei | |
| 22 | 330019-14 | 32 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 23 | N569901 | 1 | BUTTON | 4,57 Lei | |
| 25 | N583246 | 1 | BRAND LABEL | 16,49 Lei | |
| 26 | N583798 | 1 | LABEL | 6,09 Lei | |
| 27 | N583248 | 1 | BRAND LABEL | 10,5 Lei | |
| 28 | N583243 | 1 | LABEL | 4,31 Lei | |
| 30 | N696881 | 1 | BUTTON SA | 169,36 Lei | |
| 40 | N445836 | 2 | FILTER | 169,36 Lei | |
| 102 | N677027 | 1 | BAG DUST | 41,93 Lei |
