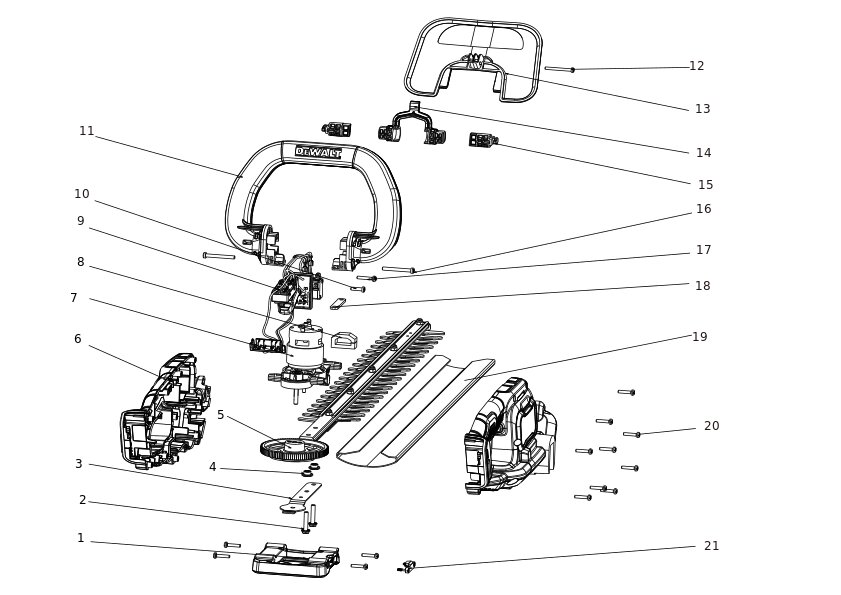

DEWALT MASINA DE TUNS GARD VIU CU ACUMULATOR (Type 1)
SKU Produs: DCMHT562N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA551929 | 1 | MOUNT | 7,14 Lei | |
| 2 | 90628896 | 2 | SCREW | 4,57 Lei | |
| 3 | N803499 | 1 | SUPPORT PLATE | 11,45 Lei | |
| 4 | 90624863 | 2 | SPACER | 4,57 Lei | |
| 5 | NA505128 | 1 | BLADE SA | 273,95 Lei | |
| 6 | NA505125 | 1 | HOUSING SA | 79,8 Lei | |
| 7 | NA678931 | 1 | MOTOR GEARCASE | 161,18 Lei | |
| 8 | N692632 | 1 | FELT | 6,23 Lei | |
| 9 | NA420867 | 1 | CONTROL MODULE SA | 176,19 Lei | |
| 10 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 11 | NA523258 | 1 | HANDLE SA | 47,78 Lei | |
| 12 | 330019-59 | 1 | SCREW | 4,57 Lei | |
| 13 | NA106549 | 1 | GUARD SA | 12,5 Lei | |
| 14 | 90627617 | 1 | LINK | 7,37 Lei | |
| 15 | 90627616 | 2 | LUG | 3,78 Lei | |
| 16 | 330019-16 | 2 | SCREW, PLASTIC THD FORM, M4*38 T20 | 4,57 Lei | |
| 17 | NA652124 | 1 | SCREW | 3,78 Lei | |
| 18 | 90568498 | 1 | PLATE | 5,21 Lei | |
| 19 | 90629314 | 1 | SHEATH | 19,95 Lei | |
| 20 | 330019-80 | 13 | SCREW PLSTIC THD FORM M4.06X18 | 4,57 Lei | |
| 21 | N791558 | 1 | COVER | 3,78 Lei |
