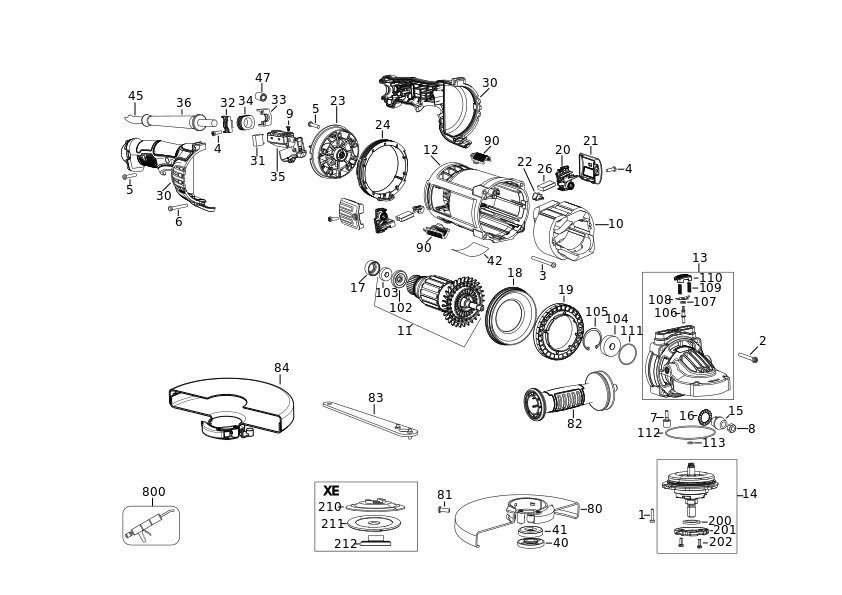

DEWALT POLIZOR UNGHIULAR (Type 5)
SKU Produs: DWE4557 /Type: 5
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | 4,57 Lei | |
| 2 | 330019-26 | 4 | SCREW M5.28 X42 | 4,57 Lei | |
| 3 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 4 | 330019-12 | 4 | SCREW | 4,57 Lei | |
| 5 | 330019-32 | 11 | SCREW,PLASTITE | 4,57 Lei | |
| 6 | 330019-15 | 2 | SCREW, PLASTIC THREAD FORM M4 X 32 T20 | 4,57 Lei | |
| 7 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 8 | 330015-03 | 1 | NUT,HEX | 4,57 Lei | |
| 9 | N111595 | 4 | SCREW | 4,57 Lei | |
| 10 | NA268621 | 1 | FIELD SA | 341,25 Lei | |
| 11 | NA200384 | 1 | ARMATURE SA | 506,73 Lei | |
| 12 | N096025 | 1 | FIELDCASE | 96,56 Lei | |
| 13 | N252619 | 1 | GEARCASE SA | 195,02 Lei | |
| 14 | NA262601 | 1 | GEARCASE COVER SA | 253,89 Lei | |
| 15 | N112754 | 1 | PINION | 41,93 Lei | |
| 16 | N132602 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 17 | 609970-00 | 1 | CUP, RUBBER | 4,57 Lei | |
| 18 | N094853 | 1 | BAFFLE FAN | 7,37 Lei | |
| 19 | N094854 | 1 | FAN | 7,37 Lei | |
| 20 | N106196 | 2 | BRUSH HOLDER SA | 25,54 Lei | |
| 21 | N111898 | 2 | BRUSH COVER | 7,37 Lei | |
| 22 | N139735 | 2 | TERMINAL | 8,64 Lei | |
| 23 | NA205530 | 1 | FAN SA | 43,16 Lei | |
| 24 | N110984 | 1 | RING | 19,95 Lei | |
| 26 | N404514 | 1 | BRUSH PAIR | 37,73 Lei | |
| 30 | N145819 | 1 | HANDLE SA | 57,81 Lei | |
| 31 | N144788 | 1 | CAPACITOR | 12,71 Lei | |
| 32 | N142099 | 1 | CORD CLAMP | 4,57 Lei | |
| 33 | N104732 | 1 | CORD CLAMP | 4,57 Lei | |
| 34 | N135624 | 1 | SHOCK ABSORBER | 6,23 Lei | |
| 35 | N122893 | 1 | SWITCH SA | 70,39 Lei | |
| 36 | 604118-00 | 1 | CORD PROTECTOR | 13,85 Lei | |
| 40 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 21,85 Lei | |
| 41 | 403150-01 | 1 | WASHER, CLAMP, INNER | 21,85 Lei | |
| 42 | NA269374 | 1 | RATING LABEL | 3,78 Lei | |
| 45 | N116821 | 1 | CORDSET (EURO) | 106,98 Lei | |
| 47 | N419846 | 1 | FERRITE BEAN | 13,85 Lei | |
| 80 | NA179703 | 1 | GUARD | 58,17 Lei | |
| 81 | 606863-00 | 1 | SCREW, MACHINE, PAN HD, M6 * 1.0 * 25 | 4,57 Lei | |
| 82 | N241543 | 1 | SIDE HANDLE | 106,98 Lei | |
| 83 | 635261-00 | 1 | WRENCH PIN | 19,95 Lei | |
| 84 | NA394102 | 1 | GUARD SA | 88,41 Lei | |
| 90 | N398650 | 2 | COVER | 5,21 Lei | |
| 102 | 393238-00 | 1 | SHIELD DUST | 5,21 Lei | |
| 103 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 104 | N389509 | 1 | EARING, BALL, CW MFG | 19,95 Lei | |
| 105 | N173539 | 1 | RETAINER | 4,57 Lei | |
| 106 | N173538 | 1 | LOCK PIN | 7,37 Lei | |
| 107 | N173540 | 1 | O RING | 4,57 Lei | |
| 108 | N108422 | 1 | PLATE | 4,57 Lei | |
| 109 | N110675 | 2 | SPRING | 4,57 Lei | |
| 110 | N110236 | 1 | BUTTON | 4,57 Lei | |
| 111 | N226986 | 1 | O RING | 10,29 Lei | |
| 112 | 397031-00 | 1 | O RING | 4,57 Lei | |
| 113 | 660143-00 | 1 | O RING | 4,57 Lei | |
| 200 | N103732 | 1 | FELT | 4,57 Lei | |
| 201 | N095989 | 1 | CAP | 13,85 Lei | |
| 202 | N247325 | 4 | SCREW | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
