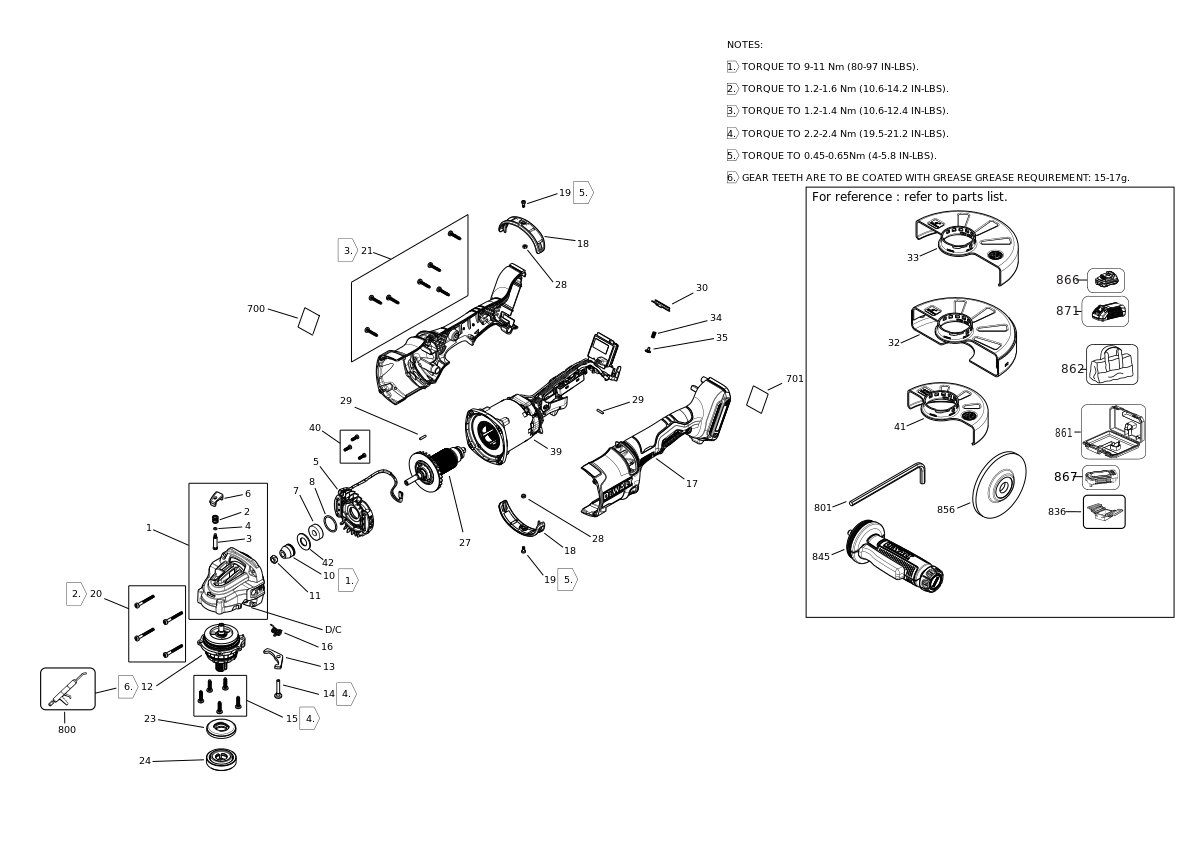

DEWALT POLIZOR UNGHIULAR (Type 1)
SKU Produs: DCG418SHDN /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA533117 | 1 | GEARCASE SA | 130,52 Lei | |
| 2 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 3 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 4 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 5 | NA533122 | 1 | SWITCH SA | 99,86 Lei | |
| 6 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 7 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 8 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 10 | N461411 | 1 | PINION | 25,54 Lei | |
| 11 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 12 | N508009 | 1 | GEARCASE COVER SA | 157,92 Lei | |
| 13 | N637725 | 1 | LEVER | 13,85 Lei | |
| 14 | N297219 | 1 | SCREW SHOULDER M4 | 4,57 Lei | |
| 15 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 16 | N465886 | 1 | SPRING | 4,57 Lei | |
| 17 | NA074009 | 1 | HOUSING SA | 58,17 Lei | |
| 18 | N436965 | 2 | VENT | 17,02 Lei | |
| 19 | N575500 | 2 | SCREW | 4,57 Lei | |
| 20 | N412210 | 4 | SCREW | 4,57 Lei | |
| 21 | 330019-04 | 7 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 23 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 24 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 27 | NA533140 | 1 | ARMATURE SA | 166,11 Lei | |
| 28 | 330015-00 | 2 | NUT | 4,57 Lei | |
| 29 | N071836 | 2 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 30 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 32 | N311439 | 1 | GUARD | 106,98 Lei | |
| 33 | NA327263 | 1 | GUARD-HP THOR 5" TYPE 27 EU GUARD | 31,19 Lei | |
| 34 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 35 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 39 | NA702755 | 1 | MOTOR SWITCH SA | 1,14 Lei | |
| 40 | 330045-01 | 3 | SCREW | 3,78 Lei | |
| 42 | NA066293 | 1 | WASHER | 4,57 Lei | |
| 700 | NA354241 | 1 | RATING LABEL | 3,78 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 801 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 836 | 5140229-19 | 1 | SERVICE TOOL | 238,88 Lei | |
| 845 | NA688521 | 1 | SIDE HANDLE | 139,97 Lei |
