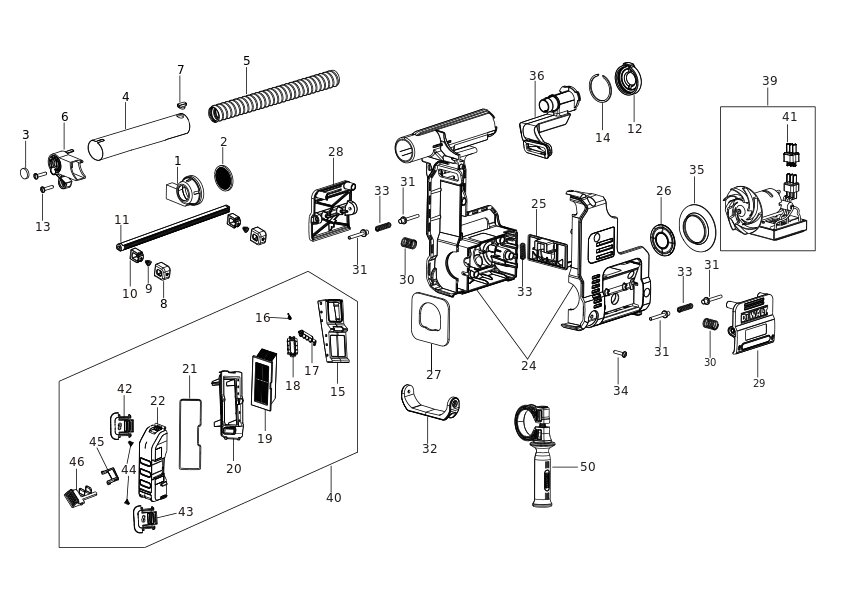

DEWALT EXTRACTOR DE PRAF (Type 2)
SKU Produs: D25303DH /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N388472 | 1 | HEAD | 13,85 Lei | |
| 2 | 580255-00 | 1 | BRUSH | 30,87 Lei | |
| 3 | 496549-00 | 1 | FELT | 4,57 Lei | |
| 4 | N389556 | 1 | VACUUM TUBE SA | 70,39 Lei | |
| 5 | N404443 | 1 | TUBE | 52,22 Lei | |
| 6 | N388457 | 1 | HOLDER | 10,29 Lei | |
| 7 | N388456 | 1 | INSERT | 8,64 Lei | |
| 8 | 580262-00 | 2 | HOUSING, KNOB | 4,57 Lei | |
| 9 | 584458-00 | 2 | SPRING, CONICAL | 4,57 Lei | |
| 10 | 580261-00 | 2 | KNOB, ADJUSTMENT LENGTH | 4,57 Lei | |
| 11 | 1008326-00 | 1 | ADJUSTER | 17,02 Lei | |
| 12 | N411895 | 1 | COVER | 15,12 Lei | |
| 13 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 14 | N414801 | 1 | CIRCLIP | 7,37 Lei | |
| 15 | N504187 | 1 | COVER | 14,07 Lei | |
| 16 | 640558 | 1 | SPRING | 11,45 Lei | |
| 17 | N501632 | 1 | VALVE | 4,31 Lei | |
| 18 | N502404 | 1 | COVER | 3,78 Lei | |
| 19 | N501820 | 1 | FILTER | 73,19 Lei | |
| 20 | N504023 | 1 | COVER | 16,49 Lei | |
| 21 | N501822 | 1 | SEAL | 16,49 Lei | |
| 22 | N501620 | 1 | CANISTER | 43,16 Lei | |
| 24 | 6010391-39 | 1 | HOUSING PAIR | 157,92 Lei | |
| 25 | N392702 | 1 | EJECTOR | 21,85 Lei | |
| 26 | N416875 | 1 | SEAL | 7,37 Lei | |
| 27 | N416876 | 1 | SEAL | 7,37 Lei | |
| 28 | N392627 | 1 | LATCH | 21,85 Lei | |
| 29 | N392626 | 1 | LATCH | 17,02 Lei | |
| 30 | N414163 | 2 | SPRING | 4,57 Lei | |
| 31 | N400748 | 4 | PIN | 4,57 Lei | |
| 32 | N406485 | 1 | CLAMP | 19,95 Lei | |
| 33 | N417064 | 2 | SPRING | 4,57 Lei | |
| 34 | 330065-08 | 10 | SCREW M4X18 | 4,57 Lei | |
| 35 | 588804-00 | 1 | FAN PROTECTOR | 8,64 Lei | |
| 36 | N407856 | 1 | DUCT | 34,05 Lei | |
| 39 | 6010391-40 | 1 | MOTOR SA | 613,14 Lei | |
| 40 | N501619 | 1 | FILTER SA | 289,04 Lei | |
| 41 | N394540 | 1 | CONNECTOR | 19,95 Lei | |
| 42 | N398726 | 1 | LATCH | 8,64 Lei | |
| 43 | N398724 | 1 | LATCH | 7,37 Lei | |
| 44 | N440706 | 2 | SPRING | 4,57 Lei | |
| 45 | N511562 | 1 | FRAME | 7,37 Lei | |
| 46 | N511561 | 1 | BUTTON | 7,37 Lei | |
| 50 | N411724 | 1 | HANDLE SIDE SA | 130,35 Lei |
