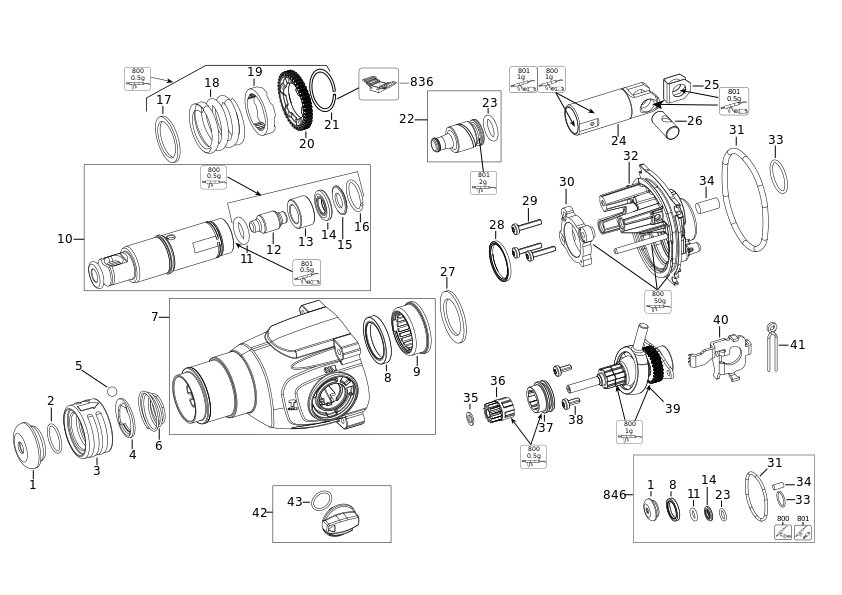

DEWALT MASINA DE GAURIT CU PERCUTIE (Type 1)
SKU Produs: DCH033 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 2 | 579212-00 | 1 | RING SNAP 21 | 5,21 Lei | |
| 3 | NA073152 | 1 | TUBE SA | 17,02 Lei | |
| 3 | NA098071 | 1 | SPINDLE SA | 225,26 Lei | |
| 4 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 5 | 583890-00 | 1 | BALL 7.0 | 5,21 Lei | |
| 6 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 7 | N417731 | 1 | HOUSING SA | 52,22 Lei | |
| 8 | N496180 | 1 | RING SEALING DIA28 | 15,12 Lei | |
| 9 | N020023 | 1 | NEEDLE BEARING | 25,54 Lei | |
| 10 | NA419837 | 1 | SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE | 119,91 Lei | |
| 11 | N394276 | 1 | O-RING 13X4 | 6,23 Lei | |
| 12 | NA534440 | 1 | BEAT PIECE | 18,06 Lei | |
| 13 | N470388 | 1 | GUIDE BEAT PIECE | 13,85 Lei | |
| 14 | 1005808-00 | 1 | CATCH RING | 10,29 Lei | |
| 14 | 580990-00 | 1 | RING RAMCATCHER | 8,64 Lei | |
| 15 | 327087-00 | 1 | WASHER CATCH | 12,71 Lei | |
| 15 | N531681 | 1 | RAM CATCHER OPP/MPP | 15,12 Lei | |
| 16 | N294259 | 1 | RING SNAP 22.5 | 4,57 Lei | |
| 17 | N899980 | 1 | WASHER | 5,21 Lei | |
| 17 | NA419837 | 1 | SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE | 119,91 Lei | |
| 18 | N264677 | 1 | SPRING | 10,29 Lei | |
| 19 | NA014716 | 1 | O RING | 37,73 Lei | |
| 19 | NA419837 | 1 | SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE | 119,91 Lei | |
| 20 | NA012069 | 1 | Gear | 41,93 Lei | |
| 20 | NA419837 | 1 | SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE | 119,91 Lei | |
| 21 | N869110 | 1 | LOCKING RING | 4,57 Lei | |
| 21 | NA419837 | 1 | SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE | 119,91 Lei | |
| 22 | N418035 | 1 | RAM SA | 41,93 Lei | |
| 23 | N264642 | 1 | O RING 14X3 | 8,64 Lei | |
| 24 | N425231 | 1 | PISTON | 41,93 Lei | |
| 25 | 1005842-00 | 1 | WASHER U SHAPE | 4,57 Lei | |
| 26 | N325041 | 1 | CROSS BOLT | 12,71 Lei | |
| 27 | 1005788-00 | 1 | WASHER,NEEDLE BEARING | 6,23 Lei | |
| 28 | N267565 | 1 | RING | 6,23 Lei | |
| 29 | 324006-15 | 3 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,57 Lei | |
| 30 | N417745 | 1 | BEARING | 19,95 Lei | |
| 31 | N264672 | 1 | O RING 68X4 | 5,21 Lei | |
| 32 | N495931 | 1 | HOUSING BR OPP/MPP WITH PACK FOR SERVICE | 70,39 Lei | |
| 33 | N264673 | 1 | O RING 22X2 | 4,57 Lei | |
| 34 | 1005812-00 | 1 | FELT | 4,57 Lei | |
| 35 | 1005844-00 | 1 | WASHER INTERSHAFT FRONT | 4,57 Lei | |
| 36 | N417859 | 1 | Gear | 34,05 Lei | |
| 37 | N417853 | 1 | COLLAR | 13,85 Lei | |
| 38 | N445171 | 2 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 40 | NA048777 | 1 | PLATE | 13,85 Lei | |
| 41 | 1005795-00 | 1 | SPRING | 4,57 Lei | |
| 42 | N417861 | 1 | SELECTOR SA | 30,87 Lei | |
| 43 | N091381-00 | 1 | O RING | 4,57 Lei | |
| 44 | 1005896-00 | 1 | SA SIDE HANDLE | 30,87 Lei | |
| 46 | 330065-13 | 4 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 47 | N356759 | 1 | BAFFLE DTV 35MM | 8,64 Lei | |
| 48 | N485558 | 1 | MOTOR AND SWITCH SA | 472,24 Lei | |
| 49 | N554533 | 1 | WASHER | 3,78 Lei | |
| 50 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 51 | 1005895-00 | 1 | CE BEARING | 12,71 Lei | |
| 52 | N467767 | 1 | NUT HEX M6 LH | 4,57 Lei | |
| 53 | N485568 | 1 | ARMATURE SA | 145,09 Lei | |
| 54 | N467131 | 1 | HU BEARING CAP | 4,57 Lei | |
| 55 | N261987 | 1 | CAP | 4,57 Lei | |
| 56 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 57 | 330065-09 | 2 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 58 | 330065-07 | 6 | SCREW | 4,57 Lei | |
| 59 | N535834 | 1 | CLAMSHELL SET | 70,39 Lei | |
| 60 | N328740 | 2 | RUBBER FOR MODULE HEAT SINK | 4,57 Lei | |
| 61 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 62 | N487311 | 3 | RUBBER PIN | 4,57 Lei | |
| 63 | N465408 | 1 | ACTUATOR FWD/REV | 7,37 Lei | |
| 64 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 65 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 66 | N102647 | 1 | COIL TERMINAL BLOCK SPRING | 4,57 Lei | |
| 67 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 69 | N483918 | 1 | LABEL | 4,57 Lei | |
| 100 | NA098071 | 1 | SPINDLE SA | 225,26 Lei | |
| 100 | NA098108 | 1 | SPINDLE SA | 200,99 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 836 | 1003959-99 | 1 | S.T.CIRCLIP REMOVER | 263,25 Lei | |
| 836 | 1003960-99 | 1 | S.T.CIRCLIP REMOVER | 465 Lei | |
| 836 | 596005-99 | 1 | SERVICE TOOLING KIT | 526,5 Lei | |
| 846 | N491563 | 1 | SERVICE KIT | 145,09 Lei |
