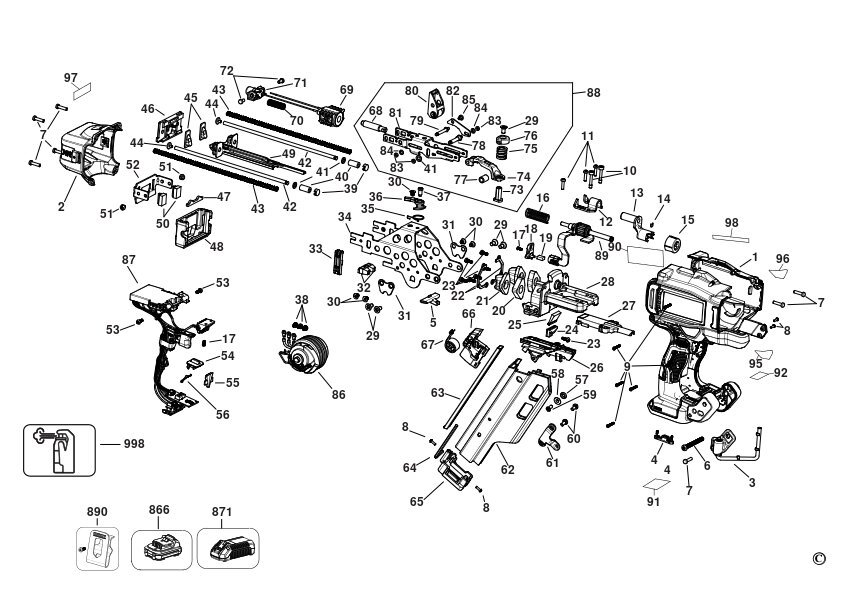

DEWALT PISTOL DA BATUT CUIE (Type 1)
SKU Produs: DCN950N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA543950 | 1 | CLAMSHELL SET | 166,11 Lei | |
| 2 | NA610859 | 1 | END CAP SA | 150,05 Lei | |
| 3 | NA611530 | 1 | HOOK SA | 25,52 Lei | |
| 4 | N791558 | 1 | COVER | 3,78 Lei | |
| 5 | NA257998 | 1 | BUTTON LOCK-OFF | 4,31 Lei | |
| 6 | NA232544 | 1 | SCREW | 3,78 Lei | |
| 7 | 330019-13 | 7 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 8 | 330019-41 | 4 | VITE PLASTIC | 4,57 Lei | |
| 9 | 330019-24 | 6 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 10 | NA381864 | 2 | BOLT | 3,78 Lei | |
| 11 | N432422 | 3 | SCREW, MACH, M4X17 T20 TAMPERPROOF | 4,57 Lei | |
| 12 | N034374 | 1 | TRIP SUPPORT AND STOP | 15,12 Lei | |
| 13 | NA363409 | 1 | BARREL | 58,17 Lei | |
| 14 | N536265 | 1 | HOG RING | 4,57 Lei | |
| 15 | NA259474 | 1 | NO MAR TIP | 3,78 Lei | |
| 16 | N587227 | 1 | SPRING | 5,21 Lei | |
| 17 | 330045-43 | 2 | SCREW TAPTITE | 4,57 Lei | |
| 19 | N659195 | 1 | MAGNET | 13,85 Lei | |
| 20 | N868561 | 2 | DAMPER | 11,45 Lei | |
| 21 | NA206021 | 2 | BUMPER | 58,17 Lei | |
| 22 | N851295 | 2 | RETAINER | 7,14 Lei | |
| 23 | 324006-16 | 7 | SCREW, TAPTITE M4 | 15,12 Lei | |
| 24 | NA090285 | 1 | MOUNT | 3,78 Lei | |
| 25 | N481219 | 1 | 21PL DEBRIS BRUSH | 12,71 Lei | |
| 26 | NA044152 | 1 | MAGAZINE INTERFACE | 208,74 Lei | |
| 27 | NA044115 | 1 | INSERT | 130,52 Lei | |
| 28 | NA610917 | 1 | NOSE SA | 107,73 Lei | |
| 29 | N477247 | 5 | SCREW, FLAT HEAD M6X1 | 4,57 Lei | |
| 30 | N666247 | 5 | SCREW, FLAT HD, M5X8 WITH PATCH | 5,21 Lei | |
| 31 | N506404 | 1 | MOTOR LOCATOR | 5,21 Lei | |
| 32 | 650974-00 | 2 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 33 | NA167655 | 1 | CABLE CLAMP | 3,78 Lei | |
| 34 | N855838 | 1 | FRAME | 150,05 Lei | |
| 35 | N086806 | 1 | TORSION SPRING | 6,23 Lei | |
| 36 | NA094894 | 1 | LEVER RELEASE | 6,09 Lei | |
| 37 | N113536 | 1 | SCREW, STALL RELEASE | 4,57 Lei | |
| 38 | N400753 | 3 | SCREW,MACHINE W/ EXTERNAL LOCK WASHER | 4,57 Lei | |
| 39 | N192671 | 2 | SPRING RAIL CLIP | 4,57 Lei | |
| 40 | N088831 | 2 | SPRING BUMPER | 12,71 Lei | |
| 41 | N088833 | 3 | WASHER, HARDENED | 4,57 Lei | |
| 42 | N590966 | 2 | RAIL V2, FRAMER | 30,87 Lei | |
| 43 | N275023 | 2 | RETURN SPRING SHOT PEENED | 70,39 Lei | |
| 44 | N088832 | 2 | SCREW M3.5X6 PAN | 15,12 Lei | |
| 45 | NA018403 | 2 | BUMPER | 4,31 Lei | |
| 46 | N855834 | 1 | RETAINER | 11,45 Lei | |
| 47 | N624713 | 1 | LIFTER | 8,64 Lei | |
| 48 | NA296374 | 1 | HOLDER | 14,07 Lei | |
| 49 | NA723469 | 1 | DRIVER | 702,56 Lei | |
| 50 | NA165657 | 2 | DAMPER | 7,14 Lei | |
| 51 | NA309197 | 2 | SCREW | 3,78 Lei | |
| 52 | NA292207 | 1 | PLATE | 14,07 Lei | |
| 53 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 54 | N794850 | 1 | MODE SELECT CAP RAPID CYCLE | 12,71 Lei | |
| 55 | NA145281 | 1 | LENS | 3,78 Lei | |
| 56 | N388602 | 1 | DETENT SPRING | 6,23 Lei | |
| 57 | NA044621 | 1 | SPACER | 3,78 Lei | |
| 58 | NA044620 | 1 | SPACER | 6,09 Lei | |
| 59 | NA044628 | 1 | SCREW | 3,78 Lei | |
| 60 | 609932-00 | 2 | SCREW M5X.8X10 MACHINE | 4,57 Lei | |
| 61 | NA066222 | 1 | MOUNT | 14,07 Lei | |
| 62 | N929607 | 1 | SIDE EXTRUSION | 238,88 Lei | |
| 63 | NA215695 | 1 | LINER | 28,14 Lei | |
| 64 | N061664 | 1 | WRENCH, HEX | 5,21 Lei | |
| 65 | NA375375 | 1 | END CAP | 12,5 Lei | |
| 66 | NA610862 | 1 | PUSHER | 43,16 Lei | |
| 67 | NA044317 | 1 | SPRING SA | 16,49 Lei | |
| 68 | N720305 | 1 | PLUNGER | 14,07 Lei | |
| 69 | N657871 | 1 | CRN PTO Solenoid | 130,35 Lei | |
| 70 | NA412352 | 1 | SPRING | 4,31 Lei | |
| 71 | NA477635 | 1 | MOUNT | 11,45 Lei | |
| 72 | 330019-10 | 2 | SCREW | 4,57 Lei | |
| 73 | NA036268 | 1 | MOUNT | 16,49 Lei | |
| 74 | NA036466 | 1 | BEAM | 99,86 Lei | |
| 75 | N309239 | 1 | PINCH ROLLER SPRING | 34,05 Lei | |
| 76 | N825150 | 1 | CAP | 43,16 Lei | |
| 77 | N631775 | 1 | BUSH | 5,15 Lei | |
| 78 | NA091358 | 1 | PIN | 11,45 Lei | |
| 79 | NA098846 | 1 | PIN | 10,5 Lei | |
| 80 | NA610867 | 1 | CARRIER SA | 107,73 Lei | |
| 81 | NA266115 | 1 | CARRIAGE | 130,52 Lei | |
| 82 | NA382827 | 1 | PLATE | 6,09 Lei | |
| 83 | 854004 | 3 | WASHER | 5,15 Lei | |
| 84 | NA089688 | 2 | WASHER | 3,78 Lei | |
| 85 | NA385042 | 1 | SCREW | 3,78 Lei | |
| 86 | NA495396 | 1 | MOTOR SA | 641,76 Lei | |
| 87 | NA760326 | 1 | CONTROL MODULE SA | 677,67 Lei | |
| 88 | NA495400 | 1 | CARRIAGE SA | 589,89 Lei | |
| 89 | NA495402 | 1 | CONTACT BAR | 186,17 Lei | |
| 90 | NA392961 | 1 | RATING PLATE | 14,07 Lei | |
| 91 | NA392959 | 1 | LABEL INFORMATION FOOT DCN950 EANZ | 12,5 Lei | |
| 92 | NA190909 | 1 | LED LABEL | 3,78 Lei | |
| 95 | NA191062 | 1 | LABEL | 4,31 Lei | |
| 96 | NA191063 | 1 | LABEL | 4,31 Lei | |
| 97 | NA191067 | 1 | LABEL | 4,31 Lei | |
| 98 | NA191069 | 1 | LABEL | 3,78 Lei | |
| 890 | N859056 | 1 | HOOK SA | 10,5 Lei |
