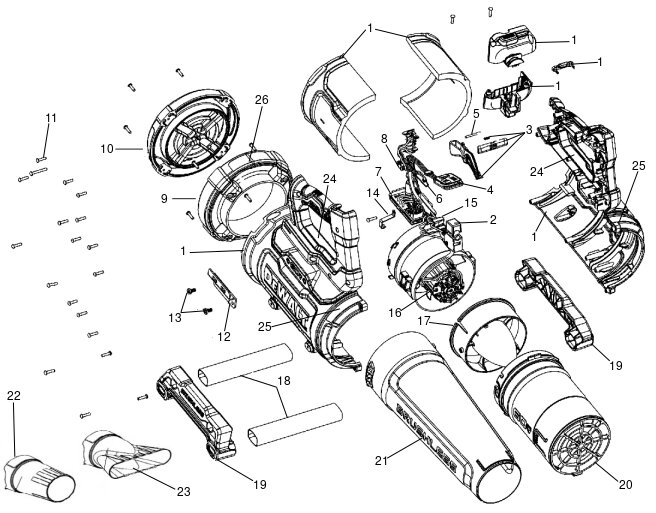

DEWALT SUFLANTĂ (Type 1)
SKU Produs: DCMBL777N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA345529 | 1 | HOUSING SA | 957,29 Lei | |
| 2 | NA317791 | 1 | SWITCH SA | 139,97 Lei | |
| 4 | NA283407 | 1 | DISPLAY | 176,19 Lei | |
| 5 | 605211-01 | 1 | PIN | 4,57 Lei | |
| 6 | NA289272 | 1 | WIRE-Ground Safety Wire | 18,06 Lei | |
| 7 | NA485074 | 1 | MOTOR SA-MOTOR AND MODULE SA | 677,67 Lei | |
| 8 | N590958 | 1 | CONNECTOR | 13,85 Lei | |
| 9 | NA291204 | 1 | INTAKE | 28,14 Lei | |
| 10 | NA298876 | 1 | GRILLE | 43,16 Lei | |
| 11 | N831593 | 28 | SCREW | 4,57 Lei | |
| 12 | NA363016 | 1 | SUPPORT BRACKET | 8,51 Lei | |
| 13 | NA359422 | 2 | SCREW | 3,78 Lei | |
| 14 | NA294501 | 1 | BRACKET | 4,31 Lei | |
| 15 | 650974-00 | 2 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 17 | NA201957 | 1 | HOUSING | 25,52 Lei | |
| 18 | NA293402 | 2 | STAND | 16,49 Lei | |
| 19 | NA293350 | 2 | STAND | 18,06 Lei | |
| 20 | NA490153 | 1 | TUBE | 99,86 Lei | |
| 21 | NA327426 | 1 | TUBE | 34,65 Lei | |
| 22 | NA327427 | 1 | NOZZLE BLOWER | 12,5 Lei | |
| 23 | NA327428 | 1 | NOZZLE BLOWER | 18,06 Lei | |
| 24 | NA355143 | 1 | WARNING LABEL | 3,78 Lei | |
| 25 | NA355144 | 1 | WARNING LABEL | 3,78 Lei | |
| 26 | NA355142 | 1 | RATING LABEL | 3,78 Lei |
