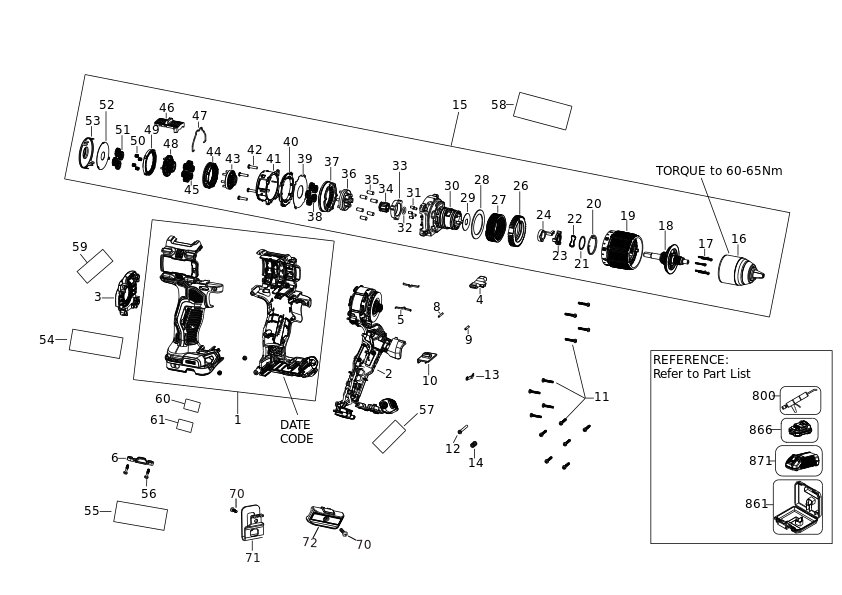

DEWALT GAURIRE/INSURUBARE (Type 2)
SKU Produs: DCD805NT /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA265578 | 1 | HOUSING SA | 34,65 Lei | |
| 2 | NA369742 | 1 | MOTOR & SWITCH SA | 438,59 Lei | |
| 3 | N882247 | 1 | CAP | 13,85 Lei | |
| 4 | N399342 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 5 | N014681 | 2 | LEAF SPRING | 4,57 Lei | |
| 6 | N787996 | 1 | INSERT | 4,57 Lei | |
| 8 | N917079 | 1 | ROLL PIN | 4,57 Lei | |
| 9 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 10 | N393603 | 1 | SELECTOR | 4,57 Lei | |
| 11 | 682211-00 | 14 | SCREW, PLASTITE | 4,57 Lei | |
| 12 | 330019-62 | 1 | SCREW | 4,57 Lei | |
| 13 | N392855 | 1 | DETENT SPRING | 4,57 Lei | |
| 14 | N929081 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 15 | NA369823 | 1 | TRANSMISSION SA | 358,05 Lei | |
| 16 | N928691 | 1 | CHUCK | 120,82 Lei | |
| 17 | N039795 | 5 | SCREW | 4,57 Lei | |
| 18 | NA088145 | 1 | SPINDLE SA | 130,35 Lei | |
| 19 | NA313073 | 1 | COLLAR | 16,49 Lei | |
| 20 | N616763 | 1 | SPRING | 4,57 Lei | |
| 21 | N613395 | 1 | WASHER | 4,57 Lei | |
| 22 | N618571 | 1 | WASHER | 4,57 Lei | |
| 23 | NA135758 | 1 | RATCHET | 6,09 Lei | |
| 24 | NA156130 | 1 | RATCHET | 14,07 Lei | |
| 26 | NA319238 | 1 | CLUTCH | 4,31 Lei | |
| 27 | N422472 | 1 | CLUTCH SPRING | 17,02 Lei | |
| 28 | N854140 | 1 | WASHER | 4,57 Lei | |
| 29 | N090435 | 1 | WASHER | 4,57 Lei | |
| 30 | NA576227 | 1 | HOUSING SA | 34,65 Lei | |
| 31 | N093416 | 5 | ROLLER | 4,57 Lei | |
| 32 | N560646 | 1 | O RING | 3,78 Lei | |
| 33 | N022985 | 1 | LOCKING RING | 19,95 Lei | |
| 34 | NA073159 | 1 | ANVIL | 17,02 Lei | |
| 35 | NA309722 | 6 | PIN | 3,78 Lei | |
| 36 | NA094641 | 1 | CARRIER SA | 34,05 Lei | |
| 37 | NA309675 | 1 | Gear | 21,11 Lei | |
| 38 | N845244 | 5 | Gear | 4,57 Lei | |
| 39 | N875646 | 1 | PLATE | 4,57 Lei | |
| 40 | N855533 | 1 | RING | 10,29 Lei | |
| 41 | N855688 | 1 | HOUSING | 6,23 Lei | |
| 42 | N075506 | 4 | SCREW | 4,57 Lei | |
| 43 | NA034901 | 1 | CARRIER SA | 30,87 Lei | |
| 44 | N845241 | 1 | Gear | 15,12 Lei | |
| 45 | N845240 | 6 | Gear | 4,57 Lei | |
| 46 | N855158 | 1 | LEVER | 4,57 Lei | |
| 47 | N855159 | 1 | WIRE | 4,57 Lei | |
| 48 | NA034898 | 1 | CARRIER SA | 30,87 Lei | |
| 49 | N845239 | 1 | Gear | 8,64 Lei | |
| 50 | N692779 | 4 | ROLLER | 13,85 Lei | |
| 51 | N845237 | 4 | Gear | 4,57 Lei | |
| 52 | N855592 | 1 | PLATE | 7,37 Lei | |
| 53 | N855591 | 1 | PLATE | 10,29 Lei | |
| 54 | NA290995 | 1 | RATING LABEL | 3,78 Lei | |
| 55 | NA290997 | 1 | LABEL | 3,78 Lei | |
| 56 | N831593 | 2 | SCREW | 4,57 Lei | |
| 57 | NA186385 | 1 | LABEL-LABEL ANTI ROTATION | 3,78 Lei | |
| 58 | NA088118 | 1 | BRAND LABEL | 4,57 Lei | |
| 59 | NA715276 | 1 | LABEL | 3,78 Lei | |
| 60 | NA290934 | 1 | LABEL-LABEL TOP FOOT LED PART A | 3,78 Lei | |
| 61 | NA290935 | 1 | LABEL-LABEL TOP FOOT LED PART B | 3,78 Lei | |
| 70 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 71 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 72 | N851797 | 1 | HOLDER SA | 30,87 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 861 | NA602771 | 1 | KITBOX | 139,97 Lei |
