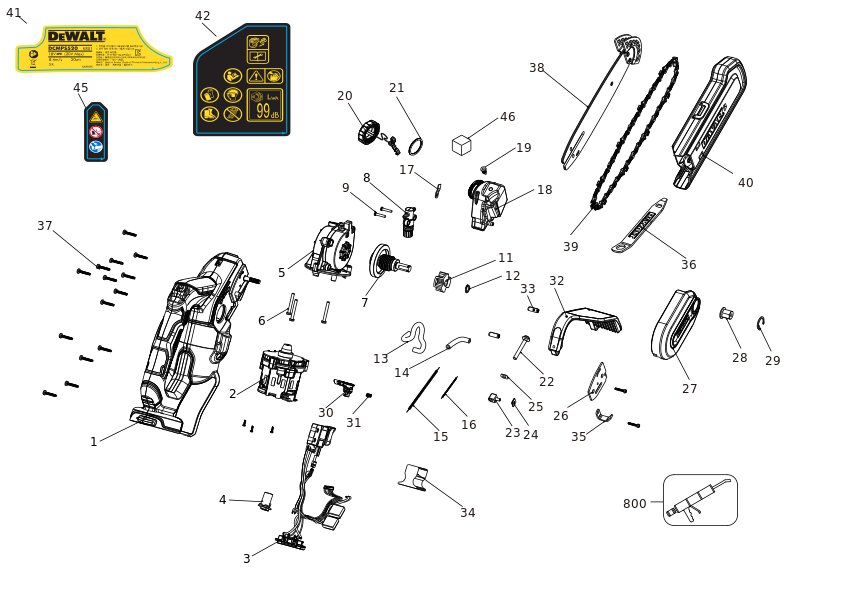

DEWALT FOARFECA DE GRADINA (Type 1)
SKU Produs: DCMPS520N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA034334 | 1 | HOUSING SA | 139,97 Lei | |
| 2 | NA228364 | 1 | MOTOR SA | 438,59 Lei | |
| 5 | NA228360 | 1 | GEARCASE SA | 25,52 Lei | |
| 6 | 330019-06 | 3 | SCREW, PLSTC THD FORM, M3.5x32 T15 | 4,57 Lei | |
| 7 | NA073703 | 1 | OUTPUT SHAFT SA | 99,86 Lei | |
| 8 | NA255342 | 1 | PUMP SA | 25,52 Lei | |
| 9 | N377990 | 2 | SCREW M3.12X16 T10 | 4,57 Lei | |
| 11 | 90585879 | 1 | SPROCKET | 15,12 Lei | |
| 12 | 624521-00 | 1 | LOCKING RING | 4,57 Lei | |
| 13 | NA116995 | 1 | TUBE OIL | 6,09 Lei | |
| 14 | NA116993 | 1 | TUBE OIL | 3,78 Lei | |
| 15 | NA152569 | 1 | SPRING | 3,78 Lei | |
| 16 | NA152570 | 1 | SPRING | 3,78 Lei | |
| 17 | 90157834 | 1 | SUPPORT | 4,57 Lei | |
| 18 | NA089169 | 1 | TANK | 16,49 Lei | |
| 19 | 90618295 | 1 | VALVE | 4,57 Lei | |
| 20 | N615366 | 1 | CAP SA | 19,95 Lei | |
| 21 | N654901 | 1 | O RING | 4,57 Lei | |
| 22 | N601071 | 1 | SCREW | 4,57 Lei | |
| 23 | N597160 | 1 | CLAMP | 7,37 Lei | |
| 24 | N625741 | 1 | CLAMP | 4,57 Lei | |
| 25 | 90519433 | 1 | WASHER | 4,57 Lei | |
| 26 | NA086154 | 1 | MOUNT | 6,09 Lei | |
| 27 | NA123772 | 1 | COVER | 43,16 Lei | |
| 28 | NA086160 | 1 | NUT | 7,14 Lei | |
| 29 | NA128407 | 1 | RING | 3,78 Lei | |
| 30 | NA035025 | 1 | BUTTON LOCK-OFF | 3,78 Lei | |
| 31 | NA157791 | 1 | SPRING | 3,78 Lei | |
| 32 | NA133203 | 1 | GUARD | 12,5 Lei | |
| 33 | NA134030 | 2 | PIN | 4,31 Lei | |
| 34 | NA120734 | 1 | COUNTERWEIGHT | 25,52 Lei | |
| 35 | NA123777 | 1 | BRACKET | 3,78 Lei | |
| 36 | N856669 | 1 | WRENCH | 13,85 Lei | |
| 37 | 330019-04 | 14 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 38 | NA411858 | 1 | BAR SA | 99,86 Lei | |
| 39 | N603750 | 1 | CHAIN | 52,22 Lei | |
| 40 | NA135027 | 1 | SHEATH | 18,06 Lei | |
| 42 | NA337839 | 1 | WARNING LABEL | 4,31 Lei | |
| 45 | NA130375 | 1 | WARNING LABEL | 3,78 Lei | |
| 48 | NA327823 | 1 | BOLT | 4,31 Lei | |
| 49 | NA394533 | 1 | HANDLE SA | 58,17 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
