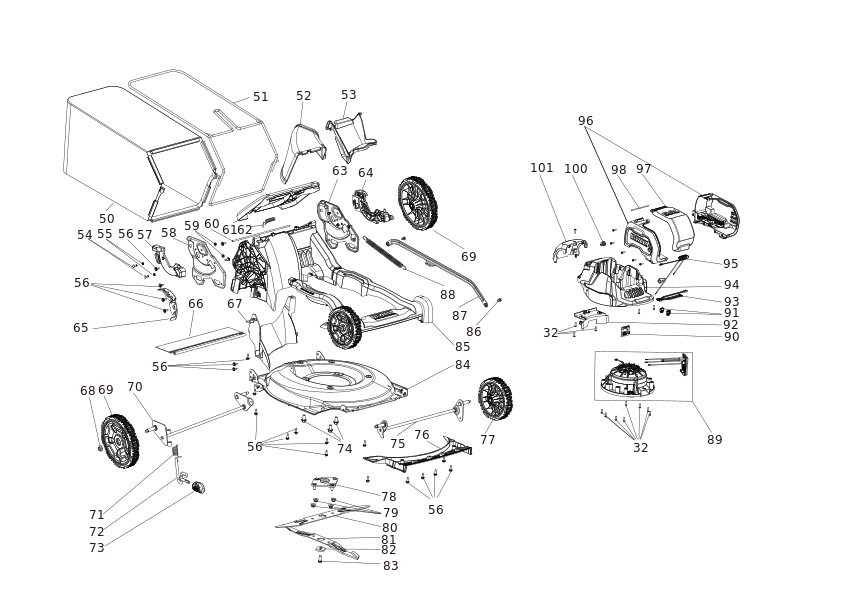

DEWALT MASINA DE TUNS GAZON CU ACUMULATOR (Type 1)
SKU Produs: DCMWP500N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA168482 | 1 | BUTTON | 3,78 Lei | |
| 2 | NA213502 | 1 | SPRING | 3,78 Lei | |
| 3 | 90617442 | 2 | SCREW | 4,57 Lei | |
| 4 | 330019-03 | 8 | Screw M3.5X16 T15 | 4,57 Lei | |
| 5 | NA120833 | 1 | COVER | 12,5 Lei | |
| 6 | NA171938 | 1 | CONTROL | 248,33 Lei | |
| 7 | 330019-02 | 3 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 8 | NA255730 | 1 | BUTTON | 3,78 Lei | |
| 9 | NA268870 | 1 | HANDLE SA | 73,19 Lei | |
| 10 | NA172919 | 1 | SWITCH | 4,31 Lei | |
| 12 | N261987 | 2 | CAP | 4,57 Lei | |
| 13 | 330045-29 | 4 | SCREW, TAPTITE M6 * 45 | 17,02 Lei | |
| 14 | NA120832 | 1 | COVER | 18,06 Lei | |
| 15 | NA260845 | 1 | KEY | 5,15 Lei | |
| 16 | NA120831 | 1 | SWITCH COVER | 28,14 Lei | |
| 17 | NA168479 | 1 | CATCH | 21,11 Lei | |
| 18 | NA168480 | 1 | CAM | 4,31 Lei | |
| 19 | N534932 | 1 | SPRING TORSION | 4,57 Lei | |
| 21 | NA302113 | 2 | STRIP | 3,78 Lei | |
| 22 | NA302159 | 2 | SLEEVE | 3,78 Lei | |
| 23 | NA302156 | 2 | TUBE UPPER | 34,65 Lei | |
| 24 | NA377608 | 2 | STOP | 3,78 Lei | |
| 25 | NA302154 | 2 | TUBE LOWER | 47,78 Lei | |
| 26 | 330019-12 | 31 | SCREW | 4,57 Lei | |
| 27 | NA302157 | 2 | SLEEVE | 3,78 Lei | |
| 28 | NA291227 | 2 | BOLT | 4,31 Lei | |
| 29 | NA302168 | 2 | WASHER | 3,78 Lei | |
| 30 | NA302166 | 2 | SCREW | 6,09 Lei | |
| 31 | N526931 | 2 | NUT | 4,57 Lei | |
| 32 | NA302103 | 2 | HOOK | 3,78 Lei | |
| 33 | NA302114 | 2 | SPRING | 4,31 Lei | |
| 34 | NA302073 | 2 | LOCK | 7,14 Lei | |
| 35 | NA302117 | 1 | SPRING | 3,78 Lei | |
| 36 | NA302116 | 1 | SPRING | 3,78 Lei | |
| 37 | NA302176 | 1 | COVER | 3,78 Lei | |
| 38 | NA302109 | 1 | DISC | 5,15 Lei | |
| 39 | NA302110 | 1 | DISC | 5,15 Lei | |
| 40 | NA302115 | 2 | SPRING | 3,78 Lei | |
| 41 | NA302149 | 2 | PIN | 3,78 Lei | |
| 42 | NA302148 | 2 | ROD | 4,31 Lei | |
| 43 | NA302105 | 2 | HOLDER | 3,78 Lei | |
| 44 | NA576158 | 1 | WIRE HARNESS | 66,15 Lei | |
| 45 | NA302161 | 1 | COVER | 25,52 Lei | |
| 46 | NA301662 | 1 | BUTTON | 16,49 Lei | |
| 47 | NA302160 | 1 | COVER | 25,52 Lei | |
| 48 | NA754430 | 1 | CLIP | 3,78 Lei | |
| 49 | NA390861 | 1 | CORE | 21,11 Lei | |
| 50 | NA324042 | 1 | GRASSBAG | 166,11 Lei | |
| 51 | NA301420 | 1 | FRAME | 73,19 Lei | |
| 52 | NA301422 | 1 | CHUTE | 34,65 Lei | |
| 53 | NA301421 | 1 | PLUG | 25,52 Lei | |
| 54 | N507564 | 4 | BOLT | 3,78 Lei | |
| 55 | NA302167 | 4 | SPACER | 3,78 Lei | |
| 56 | NA301430 | 33 | SCREW | 3,78 Lei | |
| 57 | NA301696 | 1 | SUPPORT | 18,06 Lei | |
| 58 | NA302173 | 1 | BRACKET | 34,65 Lei | |
| 59 | N541610 | 4 | LOCK-NUT | 4,57 Lei | |
| 60 | NA301429 | 1 | ROD | 7,14 Lei | |
| 61 | NA302912 | 1 | DOOR | 43,16 Lei | |
| 62 | N572158 | 1 | SPRING | 5,21 Lei | |
| 63 | NA302172 | 1 | BRACKET | 34,65 Lei | |
| 64 | NA301667 | 1 | SUPPORT | 18,06 Lei | |
| 65 | NA302175 | 1 | BRACKET | 18,06 Lei | |
| 66 | NA301427 | 1 | SHIELD | 18,06 Lei | |
| 67 | NA301426 | 1 | INSERT | 25,52 Lei | |
| 68 | NA301415 | 4 | NUT | 3,78 Lei | |
| 69 | NA171659 | 2 | WHEEL | 73,19 Lei | |
| 70 | NA301388 | 1 | AXLE REAR | 79,8 Lei | |
| 71 | NA301404 | 1 | SPRING | 5,15 Lei | |
| 72 | NA301402 | 1 | ROD | 16,49 Lei | |
| 73 | NA301417 | 1 | ROD | 10,5 Lei | |
| 74 | NA301557 | 3 | BOLT | 4,31 Lei | |
| 75 | NA300158 | 1 | AXLE FRONT | 58,17 Lei | |
| 76 | NA301425 | 1 | CLIP | 21,11 Lei | |
| 77 | NA171658 | 2 | WHEEL SA | 58,17 Lei | |
| 78 | NA323873 | 1 | PLATE | 66,15 Lei | |
| 79 | NA301435 | 4 | NUT | 3,78 Lei | |
| 80 | NA302153 | 1 | BLADE MOUNT | 79,8 Lei | |
| 81 | NA302151 | 1 | BLADE MOUNT | 79,8 Lei | |
| 82 | NA301433 | 1 | WASHER | 14,07 Lei | |
| 83 | NA301437 | 1 | BOLT | 6,09 Lei | |
| 84 | NA300055 | 1 | CUTTER DECK | 263,03 Lei | |
| 85 | NA301423 | 1 | BODY | 208,74 Lei | |
| 86 | NA301416 | 2 | BOLT | 3,78 Lei | |
| 87 | NA301407 | 1 | LINK | 47,78 Lei | |
| 88 | NA301418 | 1 | SPRING | 21,11 Lei | |
| 89 | NA423565 | 1 | MOTOR SA | 1,48 Lei | |
| 91 | NA096216 | 2 | CONNECTOR | 3,78 Lei | |
| 92 | NA132154 | 1 | BAFFLE | 7,14 Lei | |
| 93 | NA576183 | 1 | WIRE HARNESS | 28,14 Lei | |
| 94 | NA241409 | 1 | HARNESS | 47,78 Lei | |
| 95 | NA165684 | 1 | MOTOR COVER | 43,16 Lei | |
| 96 | NA225533 | 1 | HOUSING | 47,78 Lei | |
| 97 | NA268443 | 1 | DOOR | 47,78 Lei | |
| 98 | NA225940 | 1 | PIN | 4,31 Lei | |
| 100 | NA392699 | 1 | BUSHING | 4,31 Lei | |
| 101 | NA165685 | 1 | COVER | 11,45 Lei | |
| 103 | NA654189 | 1 | SA HANDLE PANEL KIT | 248,33 Lei |
