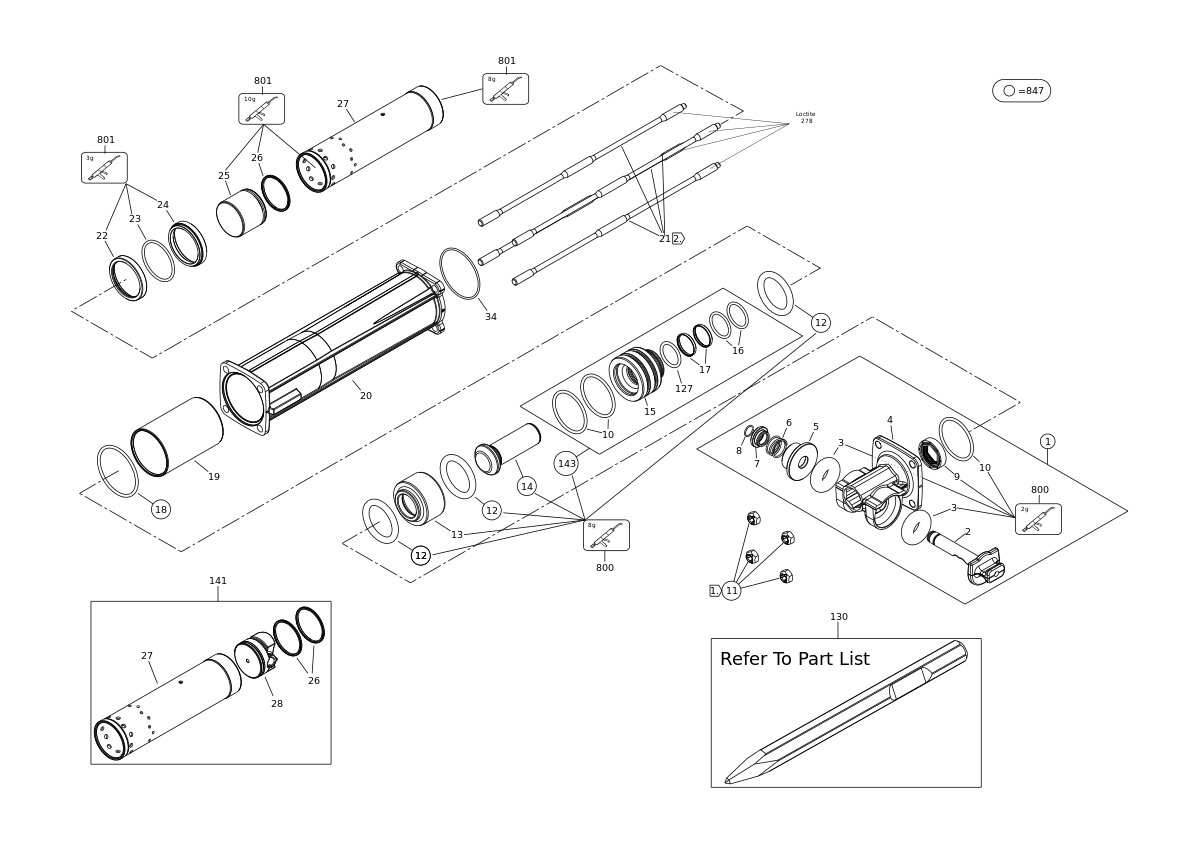

DEWALT CIOCAN DEMOLATOR (Type 1)
SKU Produs: D25966 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA355539 | 1 | HOLDER SA | 1,61 Lei | |
| 2 | N777635 | 1 | RETAINER | 176,19 Lei | |
| 3 | 478063-00 | 2 | DAMPER RETAINER D25980 | 25,54 Lei | |
| 4 | N777258 | 1 | KEY HOLDER | 1,14 Lei | |
| 5 | N777701 | 1 | BUSH | 47,78 Lei | |
| 6 | NA210411 | 1 | SPRING | 3,78 Lei | |
| 7 | NA263843 | 1 | BOLT | 18,06 Lei | |
| 8 | N281859 | 1 | RING | 3,78 Lei | |
| 9 | NA356928 | 1 | SEAL | 28,14 Lei | |
| 10 | N784854 | 3 | O RING | 25,52 Lei | |
| 11 | NA092773 | 4 | NUT | 6,09 Lei | |
| 12 | N662214 | 3 | DAMPER | 66,15 Lei | |
| 13 | N719424 | 1 | TUBE GUIDE | 208,74 Lei | |
| 14 | N719422 | 1 | BEAT PIECE | 248,33 Lei | |
| 15 | N719423 | 1 | SUPPORT. REAR | 263,03 Lei | |
| 16 | NA234398 | 2 | O RING | 10,5 Lei | |
| 17 | NA160752 | 2 | RING | 28,14 Lei | |
| 18 | NA114412 | 1 | O RING | 6,09 Lei | |
| 19 | N846104 | 1 | BUSH | 139,97 Lei | |
| 20 | N776933 | 1 | HOUSING FRONT | 321,72 Lei | |
| 21 | NA085613 | 4 | THREADED ROD | 99,86 Lei | |
| 22 | N654927 | 1 | RING | 34,65 Lei | |
| 23 | N905036 | 1 | O RING | 16,49 Lei | |
| 24 | NA043935 | 1 | ADAPTOR | 47,78 Lei | |
| 25 | N718762 | 1 | RAM | 218,19 Lei | |
| 26 | N779205 | 2 | PISTON RING-PISTON RING 55X2.5X2.5 | 25,52 Lei | |
| 27 | N715365 | 1 | CYLINDER | 471,87 Lei | |
| 28 | N650468 | 1 | PISTON | 79,8 Lei | |
| 29 | N680414 | 1 | SHAFT | 18,06 Lei | |
| 30 | N784847 | 1 | O RING | 14,07 Lei | |
| 31 | NA355540 | 1 | CON ROD SA | 186,17 Lei | |
| 32 | N650465 | 1 | CON ROD | 88,41 Lei | |
| 33 | NA321225 | 1 | BUSH | 79,8 Lei | |
| 34 | N905034 | 1 | O RING | 5,15 Lei | |
| 35 | NA274631 | 1 | WASHER | 4,31 Lei | |
| 36 | NA090420 | 15 | SCREW | 3,78 Lei | |
| 37 | N794476 | 1 | O RING | 16,49 Lei | |
| 39 | 487229-00 | 1 | FELT | 5,21 Lei | |
| 40 | N840772 | 1 | FIXED BLOCK | 4,31 Lei | |
| 41 | 330065-08 | 9 | SCREW M4X18 | 4,57 Lei | |
| 42 | 330065-13 | 4 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 43 | N725002 | 1 | BAFFLE | 18,06 Lei | |
| 44 | N909448 | 1 | PCB-HALL PCA, OVERMOLDED, BLUE LABEL AC | 253,89 Lei | |
| 45 | N427493 | 2 | SCREW | 4,57 Lei | |
| 46 | NA355542 | 1 | STATOR SA-SA STATOR WITH PHASE WIRES | 411,39 Lei | |
| 47 | N921887 | 1 | STATOR SA-SA STATOR & CUP | 198,66 Lei | |
| 48 | N856154 | 1 | WIRE HARNESS | 139,97 Lei | |
| 49 | N788601 | 1 | SUPPORT-MOTOR SUPPORT 15KG | 43,16 Lei | |
| 50 | N863510 | 2 | SCREW | 12,5 Lei | |
| 51 | N821601 | 1 | CON ROD | 43,16 Lei | |
| 52 | N823671 | 1 | AXIS | 12,5 Lei | |
| 53 | N776489 | 1 | GEARCASE COVER | 130,52 Lei | |
| 54 | N863312 | 1 | SPRING | 3,78 Lei | |
| 55 | NA355544 | 1 | GEAR SA | 248,33 Lei | |
| 56 | N916835 | 2 | BEARING BALL | 31,19 Lei | |
| 57 | N714306 | 1 | Gear | 79,8 Lei | |
| 58 | N810103 | 1 | PINION GEAR | 43,16 Lei | |
| 59 | N715090 | 1 | INTERGEAR SA-GEAR CRANK WHEEL 15KG | 161,18 Lei | |
| 60 | N526266 | 1 | D | 4,57 Lei | |
| 61 | N853807 | 1 | SEAL | 16,49 Lei | |
| 62 | N470873 | 1 | SCREW | 3,78 Lei | |
| 63 | NA159604 | 1 | FIXED BLOCK | 4,31 Lei | |
| 64 | NA355545 | 1 | GEARBOX SA | 734,9 Lei | |
| 65 | N083127 | 1 | BEARING BALL | 25,52 Lei | |
| 66 | N776205 | 1 | GEARBOX | 471,87 Lei | |
| 67 | 577745-03 | 1 | BEARING 6205DDUC3E D EA5S | 30,87 Lei | |
| 68 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 69 | 949729-03 | 1 | RETAINING RING D.35 | 4,57 Lei | |
| 70 | N049232 | 1 | O-RING 20x1,5 NBR-70 D25960 | 19,95 Lei | |
| 71 | N722344 | 1 | CRANKSHAFT | 248,33 Lei | |
| 72 | NA334581 | 1 | ROTOR SA | 317,1 Lei | |
| 73 | 330019-18 | 20 | SCREW, PLASTITE | 3,78 Lei | |
| 74 | NA151466 | 1 | ADAPTOR | 11,45 Lei | |
| 75 | N777712 | 1 | SPRING | 12,5 Lei | |
| 76 | NA029127 | 1 | GUIDE BLOCK | 11,45 Lei | |
| 77 | N729426 | 1 | HANDLE UPPER | 73,19 Lei | |
| 78 | N704275 | 4 | BUFFER | 4,31 Lei | |
| 79 | N876031 | 2 | SCREW | 18,06 Lei | |
| 80 | NA072270 | 2 | SIDE HANDLE | 47,78 Lei | |
| 81 | N837517 | 2 | BASEPLATE SA | 47,78 Lei | |
| 82 | N866122 | 1 | COUNTER BALANCE | 14,07 Lei | |
| 83 | N802852 | 1 | SLIDE | 25,52 Lei | |
| 84 | N520790 | 1 | DETENT | 4,57 Lei | |
| 85 | N885510 | 1 | MICRO SWITCH | 28,14 Lei | |
| 87 | NA045466 | 1 | END PANEL. FRONT | 43,16 Lei | |
| 88 | NA045461 | 1 | COVER-TOP | 73,19 Lei | |
| 89 | NA141523 | 1 | HOUSING | 228,8 Lei | |
| 90 | N767644 | 1 | SHIELD | 28,14 Lei | |
| 91 | 330065-04 | 5 | SCREW, PLASTIC 4 * 8 | 4,57 Lei | |
| 92 | N767902 | 2 | PAD | 8,51 Lei | |
| 93 | NA141417 | 1 | BOX | 16,49 Lei | |
| 94 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 95 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 96 | NA097306 | 1 | TERMINAL BLOCK | 10,5 Lei | |
| 98 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 109 | 330019-02 | 7 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 110 | N743173 | 1 | BOARD | 47,78 Lei | |
| 111 | NA355549 | 1 | TUBE SA | 73,19 Lei | |
| 113 | N935075 | 1 | BREAKER | 298,62 Lei | |
| 114 | NA355548 | 1 | MODULE-SA MODULE 15KG PACKED HV SERV ONL | 810,6 Lei | |
| 115 | NA022819 | 1 | WIRE HARNESS | 34,65 Lei | |
| 116 | N899648 | 1 | COVER | 34,65 Lei | |
| 117 | NA022817 | 1 | MODULE-SA MODULE EMI 230V | 161,18 Lei | |
| 118 | NA022937 | 1 | WIRE HARNESS | 34,65 Lei | |
| 123 | N858265 | 1 | MAGAZINE INTERFACE | 73,19 Lei | |
| 124 | N859968 | 1 | MODULE-WTC module | 99,86 Lei | |
| 125 | N770681 | 1 | WIRE HARNESS | 73,19 Lei | |
| 126 | NA072456 | 1 | HOLDER | 18,06 Lei | |
| 127 | N784846 | 1 | O RING | 12,5 Lei | |
| 128 | N873311 | 1 | HANDLE SIDE SA-SA AUXILIARY HANDLE 15KG | 208,74 Lei | |
| 129 | 322929 | 1 | KEY, ALLEN 5MM | 3,78 Lei | |
| 130 | N507915 | 1 | BREAKER | 300,47 Lei | |
| 131 | NA356597 | 1 | CORDSET | 99,86 Lei | |
| 132 | NA239898 | 1 | RATING LABEL | 11,45 Lei | |
| 133 | NA165845 | 1 | LABEL | 3,78 Lei | |
| 134 | N196044 | 1 | LABEL PERFORM PROTECT 50MMX16.4MM | 4,31 Lei | |
| 135 | NA234485 | 1 | LABEL | 12,5 Lei | |
| 139 | NA411717 | 1 | GEARBOX SA-SA GEARBOX WITH CRANK SHAFT | 1,29 Lei | |
| 140 | NA411374 | 1 | CRANK KIT-SA CRANK WHEEL | 288,54 Lei | |
| 141 | NA495070 | 1 | CYLINDER SA | 641,76 Lei | |
| 143 | NA499597 | 1 | GUIDE SA-SA GUIDE BP REAR SERV ONLY | 506,73 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 847 | NA261795 | 1 | SERVICE KIT | 2,3 Lei | |
| 850 | NA514097 | 1 | WIRE HARNESS | 11,45 Lei |
