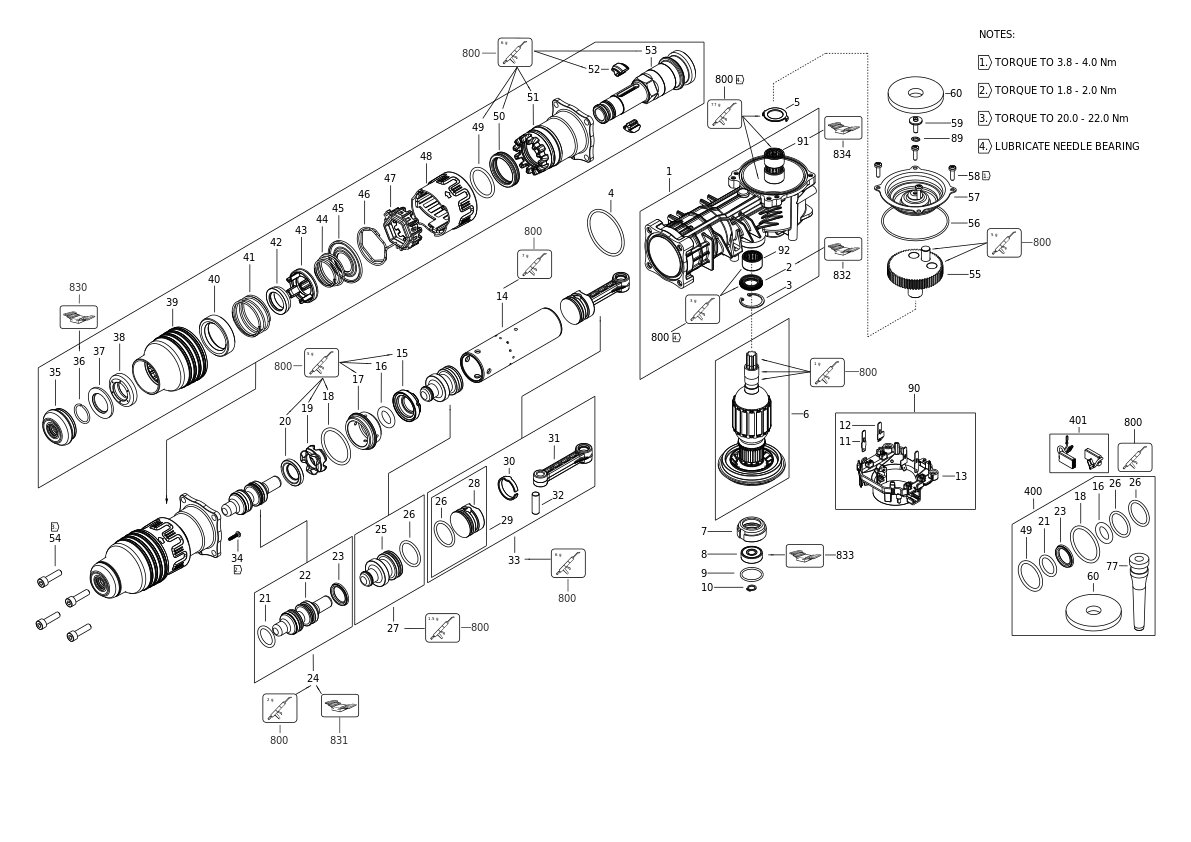

DEWALT CIOCAN DEMOLATOR (Type 1)
SKU Produs: D25881K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA291333 | 1 | HOUSING SA | 551,99 Lei | |
| 2 | NA241195 | 1 | SEAL | 43,16 Lei | |
| 3 | NA118316 | 1 | CLIP | 3,78 Lei | |
| 4 | NA087839 | 1 | O RING | 4,31 Lei | |
| 5 | NA118319 | 1 | WASHER | 4,31 Lei | |
| 6 | NA291432 | 1 | ARMATURE SA | 620,13 Lei | |
| 7 | NA129587 | 1 | BEARING | 31,19 Lei | |
| 8 | NA131175 | 1 | BEARING BALL | 18,06 Lei | |
| 9 | NA133951 | 1 | O RING | 4,31 Lei | |
| 10 | 624521-00 | 1 | LOCKING RING | 4,57 Lei | |
| 11 | 477075-00 | 2 | CONNECTOR | 4,57 Lei | |
| 12 | N415936 | 2 | PLUG | 4,31 Lei | |
| 13 | NA049468 | 1 | BRUSH HOLDER | 21,11 Lei | |
| 14 | NA335471 | 1 | CYLINDER SA | 288,54 Lei | |
| 15 | N400498 | 1 | BUSH | 7,37 Lei | |
| 16 | N389365 | 1 | O RING | 17,02 Lei | |
| 17 | NA002707 | 1 | BUSH | 73,19 Lei | |
| 18 | NA155285 | 1 | O RING | 18,06 Lei | |
| 19 | N515559 | 1 | DAMPER | 34,05 Lei | |
| 20 | N389693 | 1 | WASHER | 19,95 Lei | |
| 21 | N432561 | 1 | O RING | 8,64 Lei | |
| 22 | NA002683 | 1 | BEAT PIECE | 130,52 Lei | |
| 23 | N594490 | 1 | SEAL | 15,12 Lei | |
| 24 | NA291344 | 1 | BEAT PIECE | 218,19 Lei | |
| 25 | N387235 | 1 | RAM | 99,86 Lei | |
| 26 | 487296-00 | 2 | O RING, 33X3.5 | 19,95 Lei | |
| 27 | NA291349 | 1 | RAM SA | 198,66 Lei | |
| 28 | NA116003 | 1 | PISTON | 79,8 Lei | |
| 29 | NA291366 | 1 | PISTON SA | 166,11 Lei | |
| 30 | N439990 | 1 | PISTON RING | 5,21 Lei | |
| 31 | NA325548 | 1 | CONNECTING ROD | 28,14 Lei | |
| 32 | N026610 | 1 | PIN | 7,37 Lei | |
| 33 | NA291367 | 1 | PISTON SA | 218,19 Lei | |
| 34 | 330065-08 | 15 | SCREW M4X18 | 4,57 Lei | |
| 35 | NA176495 | 1 | SEAL | 41,93 Lei | |
| 36 | N522784 | 1 | RETAINER | 4,57 Lei | |
| 37 | N516487 | 1 | WASHER | 7,37 Lei | |
| 38 | NA176490 | 1 | RUBBER | 21,85 Lei | |
| 39 | NA089073 | 1 | SLEEVE | 21,11 Lei | |
| 40 | N511834 | 1 | BUSH | 25,54 Lei | |
| 41 | N520782 | 1 | SPRING | 7,37 Lei | |
| 42 | N511805 | 1 | DAMPER | 41,93 Lei | |
| 43 | N408040 | 1 | SEAL | 21,85 Lei | |
| 44 | N520784 | 1 | SPRING | 4,57 Lei | |
| 45 | NA132884 | 1 | SPRING GUIDE | 4,31 Lei | |
| 46 | N929397 | 1 | SPRING | 4,31 Lei | |
| 47 | NA074341 | 1 | LOCK | 34,65 Lei | |
| 48 | N537380 | 1 | SLEEVE TURNING 12KG SDS | 41,93 Lei | |
| 49 | NA094965 | 1 | O RING | 4,31 Lei | |
| 50 | N514255 | 1 | DAMPER | 25,54 Lei | |
| 51 | NA076259 | 1 | FLANGE | 253,89 Lei | |
| 52 | N511836 | 2 | LOCKING DEVICE | 37,73 Lei | |
| 53 | NA335460 | 1 | SPINDLE SA | 438,59 Lei | |
| 54 | 949886-32 | 4 | SCREW, M8X30 | 5,21 Lei | |
| 55 | NA401120 | 1 | CRANKSHAFT | 238,88 Lei | |
| 56 | NA087838 | 1 | O RING | 5,15 Lei | |
| 57 | NA049469 | 1 | CAP | 14,07 Lei | |
| 58 | N548557 | 12 | SCREW | 4,57 Lei | |
| 59 | NA231731 | 1 | TUBE | 3,78 Lei | |
| 60 | NA087837 | 1 | FELT | 58,17 Lei | |
| 61 | NA049462 | 1 | COVER | 34,65 Lei | |
| 62 | NA049463 | 1 | COVER | 43,16 Lei | |
| 63 | 330045-49 | 1 | SCREW | 4,57 Lei | |
| 64 | NA049465 | 1 | MOTOR HOUSING SA | 88,41 Lei | |
| 65 | NA503515 | 1 | CONTROL MODULE SA | 198,66 Lei | |
| 66 | 1005688-00 | 1 | PAD | 11,45 Lei | |
| 67 | NA210264 | 1 | HEATSINK | 14,07 Lei | |
| 68 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 69 | NA184040 | 1 | BRACKET | 4,31 Lei | |
| 70 | N432994 | 1 | SPEED REGULATOR | 79,8 Lei | |
| 71 | 330065-35 | 2 | SCREW PLSTC THD FORM M3X12 T10 | 4,57 Lei | |
| 72 | N467531 | 1 | CGK-2116-023, PUSH BUTTON NON-MOMENTARY | 80,04 Lei | |
| 73 | NA134745 | 1 | CAP | 5,15 Lei | |
| 74 | NA335486 | 1 | FIELD SA | 298,62 Lei | |
| 75 | 330019-30 | 2 | SCREW, PLASTIC THREAD FORM, M4 * 57 T20 | 4,57 Lei | |
| 76 | 1005752-00 | 1 | CORDSET (EURO) | 57,81 Lei | |
| 77 | 323091-01 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 78 | NA131406 | 1 | CAP | 3,78 Lei | |
| 79 | 330019-04 | 4 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 80 | N455306 | 1 | WIRE HARNESS | 130,52 Lei | |
| 81 | N448156 | 1 | COIL | 52,22 Lei | |
| 82 | N086775 | 1 | SCREW | 4,57 Lei | |
| 83 | N425665 | 2 | BRUSH HOLDER SA | 8,64 Lei | |
| 84 | NA534953 | 2 | BRUSH SPRING | 25,52 Lei | |
| 85 | NA049466 | 1 | END CAP | 43,16 Lei | |
| 86 | NA168746 | 1 | CAP | 79,8 Lei | |
| 87 | NA145629 | 1 | HANDLE SA | 161,18 Lei | |
| 88 | NA049464 | 1 | COVER | 21,11 Lei | |
| 89 | NA192214 | 1 | O RING | 3,78 Lei | |
| 90 | NA620687 | 1 | BRUSH HOLDER SA | 43,16 Lei | |
| 91 | NA118329 | 2 | BEARING | 34,65 Lei | |
| 92 | NA611853 | 1 | BEARING | 43,16 Lei | |
| 220 | N470872 | 1 | LOOP HANDLE | 130,35 Lei | |
| 221 | N536691 | 1 | SIDE HANDLE | 96,56 Lei | |
| 222 | 487291-00 | 1 | SA KNOB | 25,54 Lei | |
| 223 | 479319-00 | 2 | RUBBER, INSERT | 4,57 Lei | |
| 224 | 479317-00 | 2 | WASHER, LOCKING | 6,23 Lei | |
| 225 | 479320-00 | 2 | WASHER, CLAMP | 17,02 Lei | |
| 226 | N470725 | 1 | CLAMP | 21,85 Lei | |
| 227 | 487343-00 | 1 | SCREW, M8X185 | 15,12 Lei | |
| 300 | NA299360 | 1 | RATING LABEL | 5,15 Lei | |
| 301 | NA171220 | 1 | LABEL | 3,78 Lei | |
| 400 | NA393742 | 1 | SERVICE KIT | 238,88 Lei | |
| 401 | NA393734 | 1 | BRUSH PAIR SA | 130,52 Lei | |
| 800 | NA735203 | 1 | GREASE KLUBER GE 14-110 | 218,19 Lei | |
| 830 | 559651-99 | 1 | SERVICE TOOL | 1579,36 Lei | |
| 831 | 559652-99 | 1 | SERVICE TOOL | 133,78 Lei | |
| 832 | NA401188 | 1 | S.T.OIL SEAL INSERTER | 92,19 Lei | |
| 833 | NA401189 | 1 | S.T.OIL SEAL INSERTER | 13,65 Lei | |
| 861 | NA239334 | 1 | KITBOX | 218,19 Lei |
