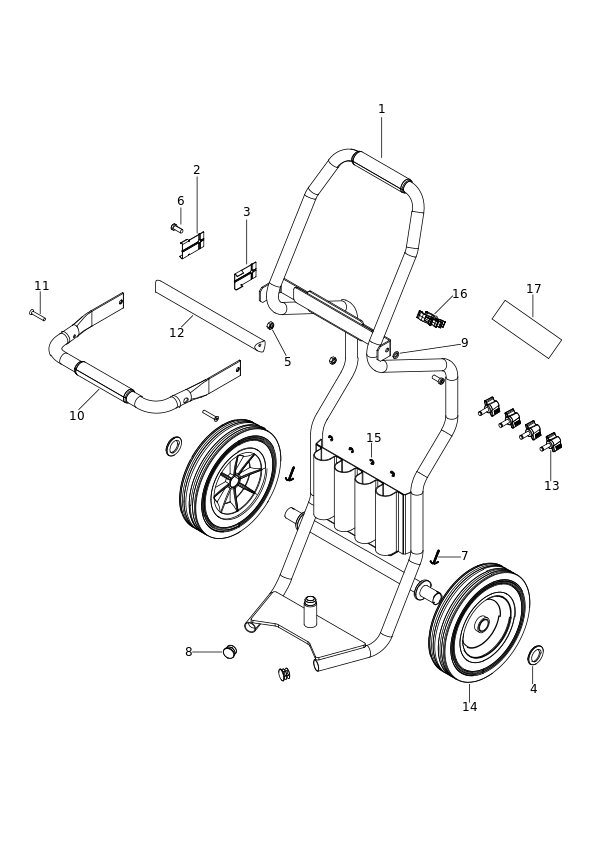

DEWALT CAMION ROBUST (Type 2)
SKU Produs: D259811 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5170073-74 | 1 | FRAME | 373,38 Lei | |
| 2 | 5170073-75 | 1 | BRACKET OUTER | 11,45 Lei | |
| 3 | 5170073-76 | 1 | BRACKET INNER | 11,45 Lei | |
| 4 | N510312 | 2 | WASHER | 12,71 Lei | |
| 5 | N510524 | 2 | NUT | 7,37 Lei | |
| 6 | N510525 | 2 | BOLT | 10,29 Lei | |
| 7 | N510526 | 2 | COTTER PIN | 7,37 Lei | |
| 8 | N510527 | 2 | PLUG | 7,37 Lei | |
| 9 | N510528 | 2 | WASHER | 7,37 Lei | |
| 10 | N510529 | 1 | CLAMPING BAR | 96,56 Lei | |
| 11 | N510530 | 2 | BOLT | 7,37 Lei | |
| 12 | N510531 | 1 | BAR TIE | 145,09 Lei | |
| 13 | N510532 | 4 | LOCKING KNOB | 57,81 Lei | |
| 14 | N510533 | 2 | WHEEL | 264,01 Lei | |
| 15 | N510534 | 4 | SPRING CLIP | 7,37 Lei | |
| 16 | N510535 | 1 | CABLE CLAMP | 19,95 Lei | |
| 17 | NA264885 | 1 | RATING LABEL | 11,45 Lei |
